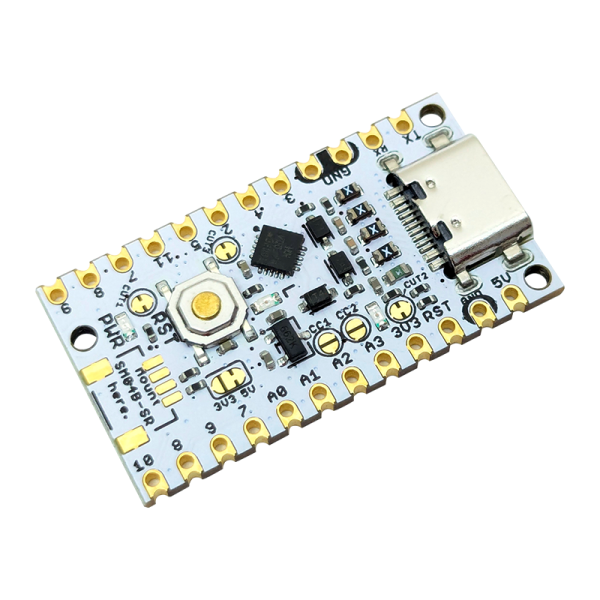

UIAPduino Pro Micro CH32V003 V1.4

Features

• Adopt CH32V003 Running at 48 MHz, And Support Coding in Arduino IDE.
• Is Supplied Power and Written Program with Single USB Type-C.
• Act as a USB 2.0 Low-speed Device, Which Means the HID Device Can Be Made.
• Protect Your USB Port Powerfully by On-Board Fuses.
• Has Selectable Power Supply from 3.3 V or 5 V for the Microcontroller.
• Can Be Connected by H: 2.0 mm / P: 2.54 mm ConthroughⓇ when CN2 Is Not Mounted.
• Can Be Mounted like a Surface-Mount Device, Because of Flat Bottom.
• Is Open-Source Software and Open-Source Hardware.
• Is RoHS Compliant , Designed in Japan.

Click here for more details about UIAPduino.

Getting Started

Verified Environment

• OS: Windows 10 / Windows 11 / Ubuntu 22.04 LTS / Ubuntu 24.04 LTS / Debian / Arch Linux
• USB Host Connector: USB 2.0 Type-A / USB 3.2 Type-C
• Arduino IDE: 2.3.2 / 2.3.3 / 2.3.4 / 2.3.5 / 2.3.6
