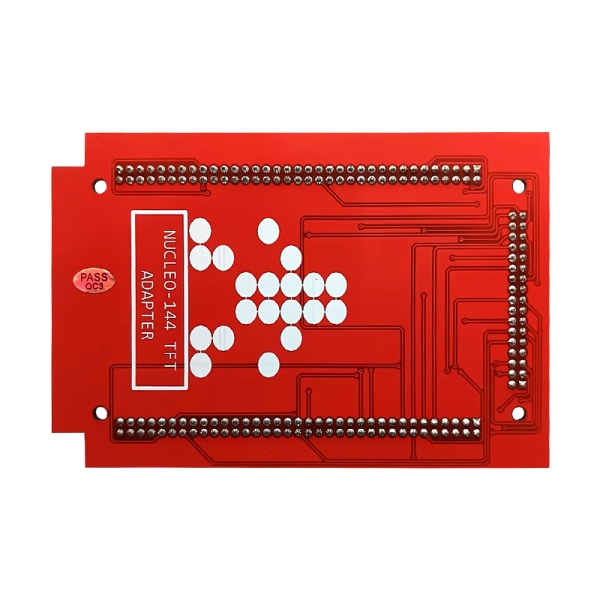

4.0 TFT shield for STM32 nucleo 144

The shield allow you to add with ease any parallel tft lcd screen, basically all these (Parallel-Port Display)

For example, it could be used to make a terminal, a photo frame or even a nes emulator system :-)

The shield is attached on the bottom of the nucleo

stm32 nucleo

So in this way you don't lose the arduino connectors, so now you can attach two shield on the same dev board :-D

stm32 nucleo

All the necessary pin definitions are available through a stm32 project, so you do not have to worry about configurations, the code shows an example of use :-)
