High Resolution P2.5 indoor 64X64 RGB LED Matrix Panel 2.5mm Pitch

Rating:
100 % of 100
$26.90
Availability: In stock
SKU
DLE23049P
Brand
elecrow
Weight
230g

Description

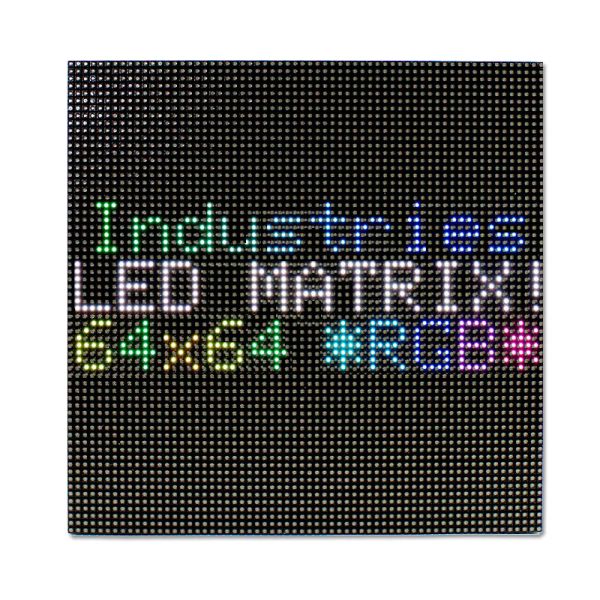

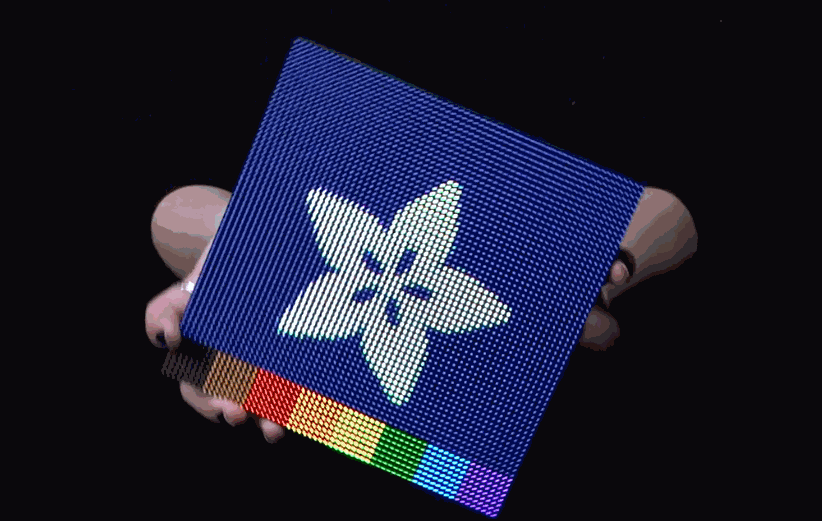

This ultra-high-density 64x64 RGB LED Matrix has 4096 bright RGB LEDs arranged in a 64x64 grid at a 2.5mm pitch. The luminance induction can be automatically adjusted, and the adjustable level is 16. These panels are typically used to make video walls.

64X64-RGB-LED-1
64X64-RGB-LED-2

Features

  • The 64 x 64 RGB panel uses a non-standard 5-address multiplexing system.

  • Maintenance before module, support hot swapping.

  • High refresh, high gray.

Specifications

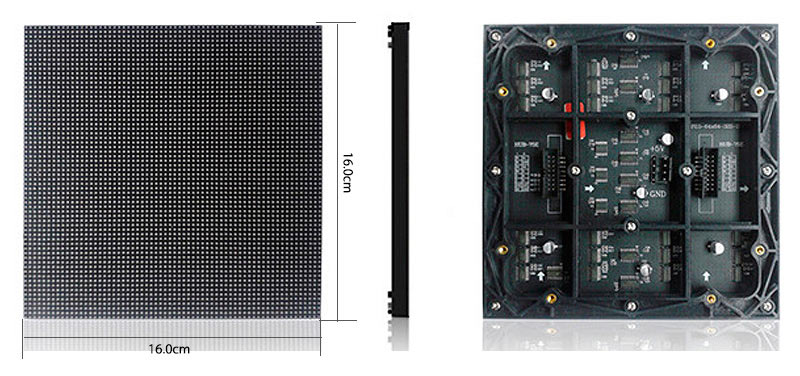

  • Size: 160mm x 160mm

  • Pixel pitch: 2.5mm

  • Resolution ratio: 64 x 64 dots

  • Optimum viewing distance: 2-30m

  • Visual horizontal angle:≥160°

  • Visual vertical angle≥160°

  • Display card: DVI

  • Driving mode: 1/32 scan

Package list

  • 64 X 64 RGB LED Matrix Panel x 1
