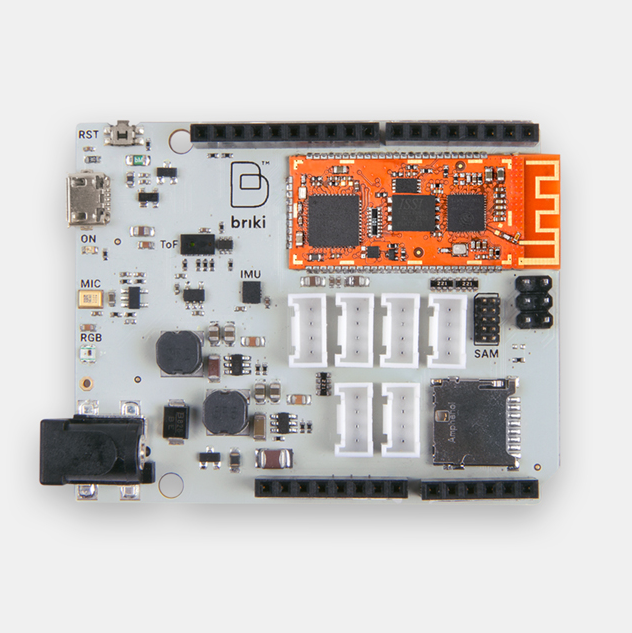

Briki®ABC-01 Board (with MBC-WB01-BPN)

$61.00
Availability: In stock
SKU
PIE25481P
Weight
70g
×
ok  Add to cart successfully!
Customers Who View This Item Also Bought
left right

The Briki® Advanced Board Carrier (ABC) provides a full Arduino® Shield Standard form-factor to help developers to use a well known environment while experimenting with the Briki MBC, a rich set of embedded sensors on-board, 6x Grove connectors for sensors and actuator interface and debug interfaces exposed for both the MCUs



Description

The Briki® Advanced Board Carrier (ABC) provides a full Arduino® Shield Standard form factor, to help developers to use a well-known environment while experimenting with the Briki MBC®.

- Arduino UNO compatible form factor and pinout

- Arduino Shield compatible

- MicroSD connector

- 6x Grove connectors for sensors and actuator interface

- Debug interfaces exposed for both the MCUs

- Rich set of embedded sensors on-board


- On-board Neopixel RGB LED



FEATURES


Product size: 69 x 54 mm
  • Dual power supply – 3.3V and 5V up to 1.5A each

  • Exposed GPIOs on the external pinout are 3.3V tolerant

  • Exposed pins on Grove connectors are 5V tolerant.

  • Neopixel RGB LED WS2812C-2020

  • ST Microelectronic IMU LSM6DSLTR

  • ST Microelectronic Gesture sensor VL6180XV0NR

  • ST Microelectronic MIC MP23ABS1

  • Micro-SD card slot

  • MBC-WB mounted



Briki ® MBC-WB
Compact System on module (SoM), is the ideal solution for designers who want a unique device with Wi-Fi & Bluetooth plus a dedicated control MCU.

Product size: 38 x 16 mm

  • ATSAMD21G18A ARM® Cortex®-M0+ running at 48MHz

  • ESP32-D0WD dual-core Tensilica Xtensa LX6 running @240MHz

  • Internal / External QSPI 16-Mbit, 64-Mbit or 128-Mbit flash

  • PCB Antenna integrated

  • CryptoAuth ECC608B chip
