DevDuino Development Platform

Model : CCD03049P

Initial Weight : 70.00g

$45.50

Availability: In stock

45.5000

* Required Fields

$45.50
Qty:

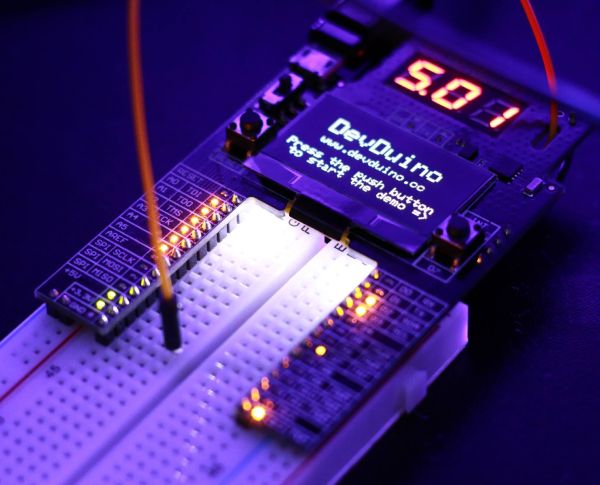

DevDuino is a fully designed, reshaped and enhanced Arduino compatible board. DevDuino is not only the best open source solution for anyone who wants to get into the world of Embedded Electronics, it has been designed to be also a day-to-day assistant in fast prototyping, sensors evaluation and debugging for any professionasl electronics engineer.
With DevDuino you can design and develop your own electronics projects in a much more comfortable way. The DevDuino is a successful project on Kickstarter,it includes a lot of great features.

DevDuino_Board_detail_1
DevDuino_Expansion_Board_1
DevDuino_with_Color_Sensing_1
DevDuino_with_wifi_or_bluetooth_1
Devduino-3
Devduino-4
RTC_Example_4
Temperature_Example_5

Features

  • DevDuino has all the following built-in features compared to classic Arduino:
  • 1x 1.3 Inches 128x64 OLED Display with SSD1306 controller
  • 1x Connector for Wi-Fi Module DT-06 or Bluetooth Module HC-06
  • 1x Micro-SD slot for Data Logging or Memory Extension
  • 1x Real Time Clock with CR1220 3V back-up battery slot
  • 1x Temperature sensor
  • 17x GPIOs with YELLOW Low Power LEDs (3 GPIOS are buffered)
  • 2x GREEN status Low Power LEDs on +5V and +3.3V
  • 5x Analog inputs with buffered YELLOW Low Power LEDs
  • 2x WHITE LEDs for Dark Environment
  • 1x RED Low Power LED for the Reset Pin
  • 1x RED Low Power LED for Serial RX and GREEN for Serial TX
  • 1x Push-Button wired to an INTERRUPTION Input
  • 1x ON/OFF Power Switch
  • 1x Slot for a 2 wire Voltmeter (included)
  • 1x Micro USB Connector

Package list

  • DevDuino Development Platform x 1
  • Bluetooth Module HC-06 X 1
  • 1GB Micro-SD x 1
  • Breadboard 830 tie-points x 1
  • Micro-USB cable x 1
  • WiFi Module x 1
