The Punk Console PCB set
$5.00
Availability:
In stock
SKU
PDE25411P
Weight
50g
Related Products:
×
Add to cart successfully!
Add to cart successfully!
Customers Who View This Item Also Bought
The Punk Console is a noise generator based on a step tone generator.
This is PWB boad set of back and main board.
Frequently Bought Together
Description
The Punk Console is a noise generator based on a step tone generator.
It uses two timer ICs, and various sounds can be created by combining the two knobs.

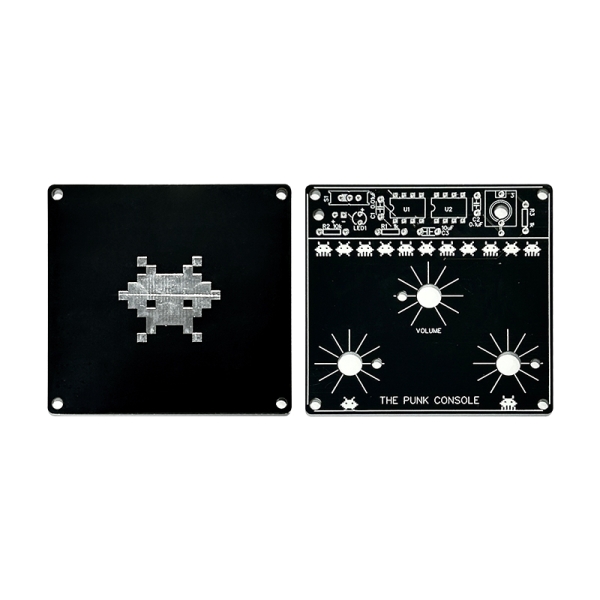

This is a set of front PWB board and back panel set.
You need to gather part for build.
Part List
| Parts | Designator | Quantity | Example URL |
| R 1k | R1,R3,R4 | 3 | |
| R 10k | R2 | 1 | |
| C 0.01uF | C1 | 1 | |
| C 0.1uF | C2 | 1 | |
| C 10uF | C3 | 1 | |
| VR 500kB | U3,U4 | 2 | https://akizukidenshi.com/catalog/g/g116475/ |
| VR 10kA | U5 | 1 | https://akizukidenshi.com/catalog/g/g129553/ |
| KNOB CAP | U3,U4,U5 | 3 | https://akizukidenshi.com/catalog/g/g100253/ |
| IC NE555P or other 555 | U1,U2 | 2 | https://akizukidenshi.com/catalog/g/g108344/ |
| IC Socket 8P (optional) | U1,U2 | 2 | https://akizukidenshi.com/catalog/g/g100017/ |
| BATTERY SNAP 006P | H1 | 1 | https://akizukidenshi.com/catalog/g/g100452/ |
| LED 3mm Red | LED1 | 1 | |
| SWITCH 3P | S1 | 1 | https://akizukidenshi.com/catalog/g/g115707/ |
| JACK PJ-301M | 3 | 1 | https://www.thonk.co.uk/shop/thonkiconn/ |
| Spacer M3 10mm | 4 | ||
| Screw M3 6mm | 8 |
Control : Volume,OSC1,OSC2
Output : monaural
Power supply : 006P 9V battery
