Description

This 1.54-inch electronic paper screen has a resolution of 152*152, and the classic black and white dual-color presentation brings a reading experience like paper. It has high contrast and high reflectivity, as well as the blessing of hard-coated anti-glare technology, ensuring excellent visual performance under various lighting conditions. The ultra-wide viewing angle design allows the wonderful picture to be fully displayed at every angle.

The ultra-low power consumption feature means that this display module can still maintain the picture content without backlight, and will not lose the display information even if the power is off, and only consumes power when refreshing.

With advanced active matrix electrophoretic display technology, this electronic paper display operates in pure reflection mode, bringing a comfortable reading experience like paper. , It is not only suitable for application scenarios such as shelf labels, price tags, badges, smart labels and smart homes, but also an ideal choice for e-readers, smart wearable devices and other portable devices.

feature of 1.54 inch e paper screen

1.54 inch e paper screen with SPI interface

Feature

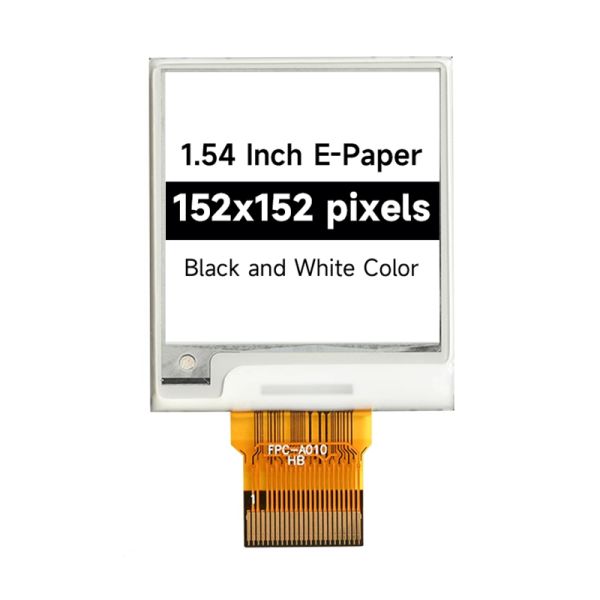

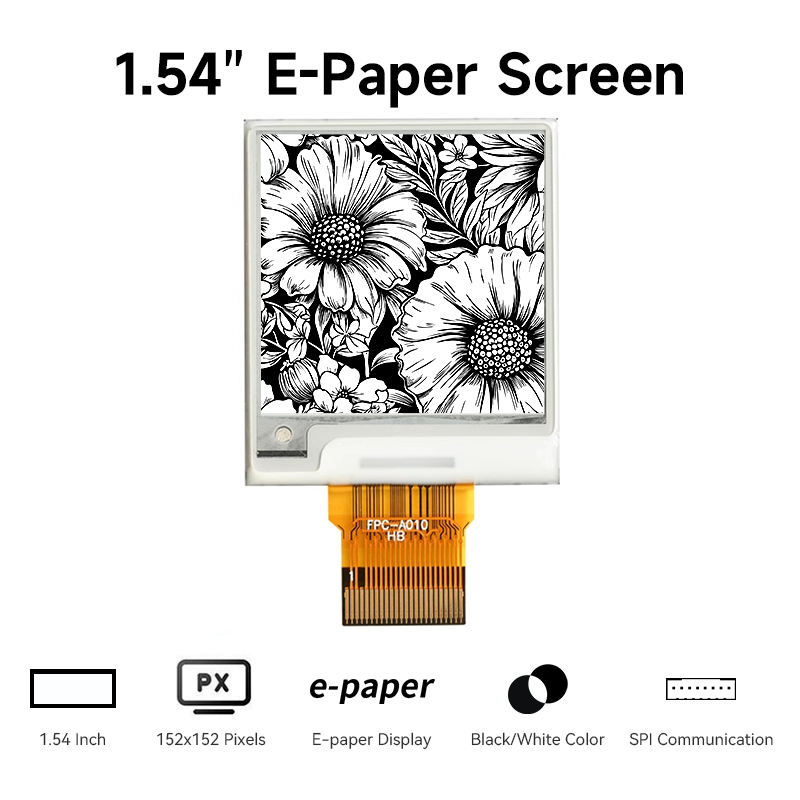

1.54-inch electronic ink screen, 152*152 resolution, black and white, using SPI interface communication;
Even if the power is off, the content is still clearly visible, no need to worry about information loss;
Hard-coated anti-glare display surface, afraid of direct sunlight, outdoor reading is also clear and comfortable;
High contrast and high reflectivity, can provide more excellent visual performance;
Ultra-low current deep sleep mode, basically only need to refresh the power supply, greatly reduce power consumption, and achieve ultra-long battery life;
Full-viewing angle display, clear and visible at any angle
Pure reflection mode, no backlight required, completely relying on light reflection to display content.

Application Examples

Interface definition

Pin	Symbol	Pin	Symbol
1	NC	13	SCL
2	GDR	14	SDA
3	RESE	15	VDDIO
4	NC	16	VCI
5	VSH2	17	VSS
6	TSCL	18	VDD
7	TSDA	19	VPP
8	BS1	20	VSH1
9	BUSY	21	VGH
10	RES#	22	VSL
11	D/C#	23	VGL
12	CS#	24	VCOM

Specification

Size	1.54 inch
Material	Active Matrix Electroph oretic Display (AM EPD)
Driver Chip	SSD1680
Resolution	152(H)*152(V) Pixel
Pixel pitch	0.181*0.181
Viewing Angle	Full Viewing Angle
Interface Type	SPI
Display Color	Black and white
Refresh Mode	Partial refresh (saves more power)
Connect Method	24Pin 0.5mm Pitch pluggable connector
Operation Voltage	2.2~3.7V
Operation Temperature	-0~40℃
Storage Temperature	-25~70℃
Active Area	27.512(H)27.512(L)(HL)

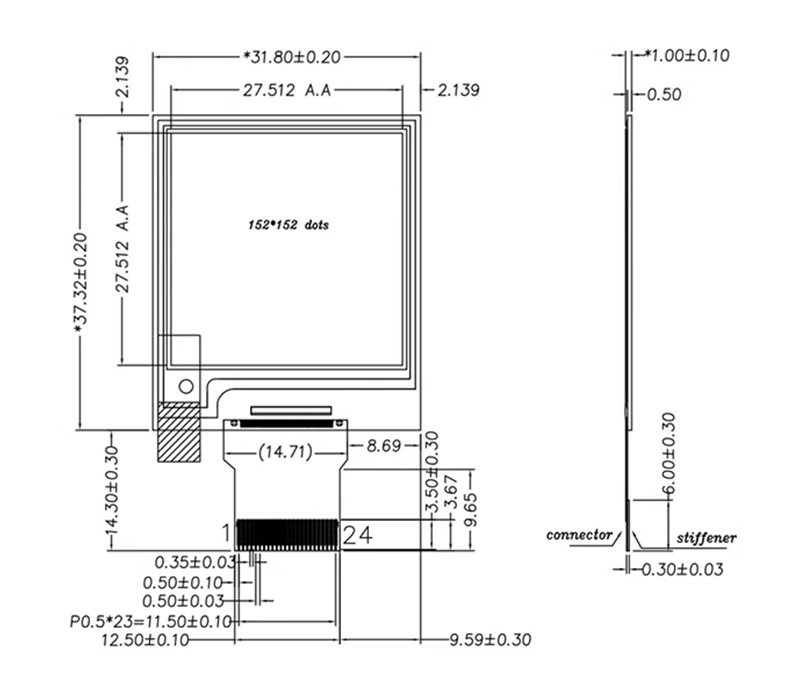

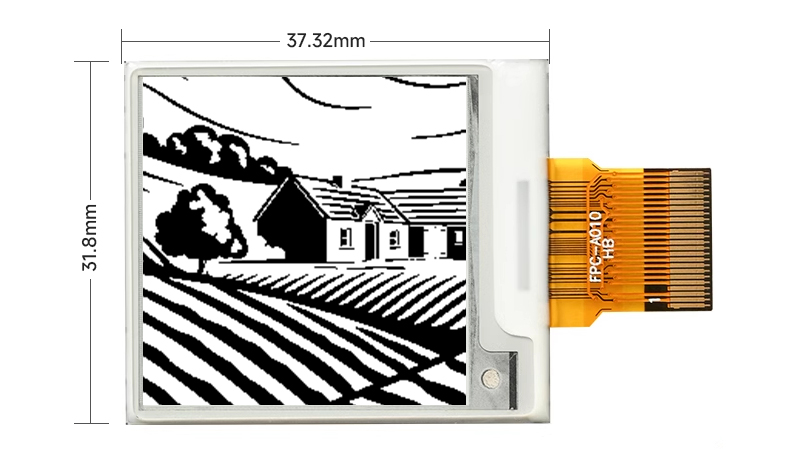

Panel Size	31.8(H)37.32(V)1.0(D)(mm)
