Analog MEMS Microphone
$12.00
Availability:
In stock
SKU
CQR241025AM
Weight
36g
Related Products:

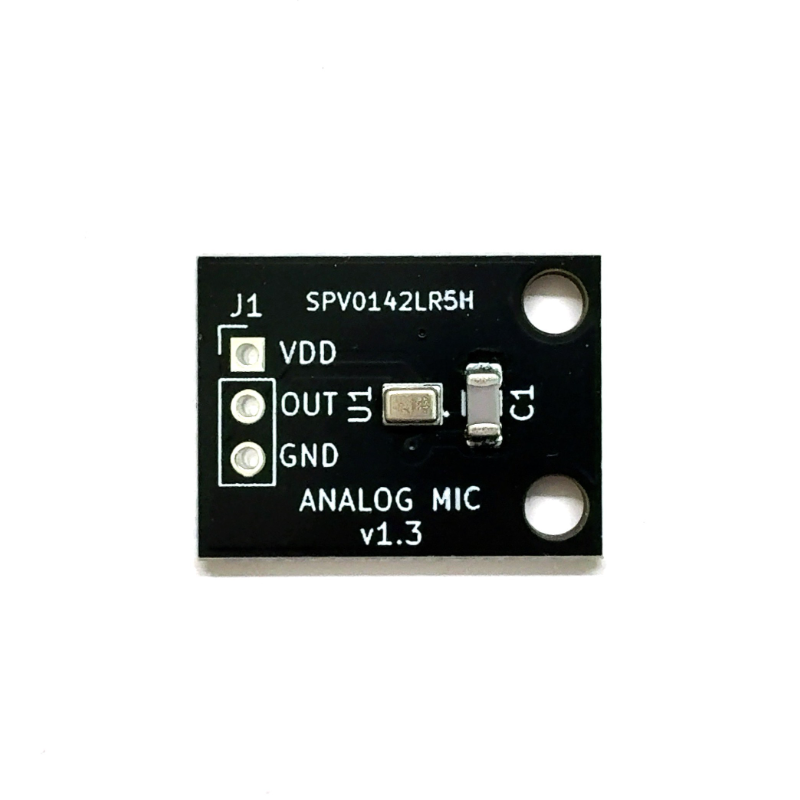

This is a 2.54mm pitch conversion board equipped with a Syntiant SPV0142LR5H analog output MEMS microphone.
Frequently Bought Together
- This is a 2.54mm pitch conversion board equipped with a Syntiant SPV0142LR5H analog output MEMS microphone.
- It can sense a wide frequency range from audible sound to ultrasound (100Hz to 80kHz) with high sensitivity.
- It has a very flat frequency response (20Hz-10kHz ±2dB, 10kHz-80kHz ±10dB).
- It can be used for ultrasonic sensors and ultrasonic communication.
- The microphone hole is the circled area on the back of the board.
- Power supply voltage: 1.5V~3.6V
- This is a successor to the SPU0410LR5H, and except for the footprint, the frequency response and electrical characteristics are almost the same.
- This board does not have an amplifier, so an amplifier is required separately to connect a microcontroller or other device.
- If you need an amplifier, please consider this product.
- PCB Files and the other infomation are here.
