CrowVision 7.0" Touch Screen Capacitive Portable HDMI-compatible 1024*600 IPS LCD Monitor

Description


CrowVision 7-inch touch screen is designed for all-in-one machines. It features a 1024*600 high-resolution screen and IPS panel, providing a superior visual experience. The industrial design-style rear-fixed metal structure is compatible with various SBC single-board computers, with a reasonable layout and neat wiring, making it easy to power up and use with simple operations. It also supports a vertical screen. If you're looking for a high-performance, easy-to-assemble, and feature-rich all-in-one computer, CrowVision is the perfect choice for you.

The screen uses HDMI-compatible communication and supports capacitive multi-touch. It has reserved interfaces and buttons for speakers and other accessories, making it adaptable to different usage scenarios. It can be used with a variety of commonly available single-board computers such as Raspberry Pi, Jetson Nano, and is plug-and-play, while also being fully compatible with the operating systems of single-board computers (such as Raspbian, Ubuntu, Windows, Android, MAC OS, and Chrome OS, etc.). You can also design a unique and exquisite protective shell for the screen and assemble it for a completely distinctive look. You can use our 3D printing service to create a beautiful protective shell.

This screen can be widely used in automation application control system displays, personal DIY projects, secondary screen/second window displays, single-board computer audio-video display equipment, HDMI-compatible communication devices, game console expansion screens, and other scenarios.

Model: CRV00117L

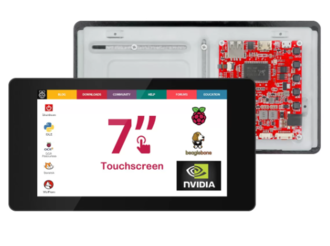

CrowVision 7.0.png

Alt text

Feature


  • 7-inch high-resolution screen with 1024*600 resolution, IPS panel, and 178┬░ wide viewing angle provides a better visual experience;
  • Unique rear fixing structure with sliding fixing pillars, compatible with most single-board computer models, easy to assemble;
  • Wide compatibility, compatible with multiple operating systems (Raspbian, Ubuntu, Windows, Android, MAC OS, and Chrome OS);
  • Supports audio, video, and capacitive touch, plug and play;
  • Integrates a variety of peripheral interfaces (such as speakers, headphones, keypads, touchscreens) and onboard OSD adjustment keys;
  • Mainboard is equipped with power conversion function output 5V/3A, not need to separately connect an external power supply for the single-board computer.

Specification


  • Size: 7 Inch
  • Touch Type: 5-point Capacitive Touch
  • Resolution: 1024*600
  • Color Depth: 16M
  • Vertical Screen: supported
  • Viewing angle: 178┬░Wide Viewing Angle
  • Display Type: IPS Panel
  • Screen Type: TFT-LCD
  • External power supply: 12V-2A
  • Digital input: HDMI-compatible interface
  • Interface: 1xKeypad interface, 1x Power supply 5V output, 1x Mini HD interface, 1xTouch interface, 1x Speaker interface, 1x Headphone socket,1x Power supply 12V input
  • CompatibilitySystem: Raspbian, Ubuntu, Windows, Android, MAC OS, and Chrome OS,etc.
  • Active Area: 99.9*167mm(W*L)
  • Dimension Size: 110.3*204mm(W*L)
  • Net weight: 298g

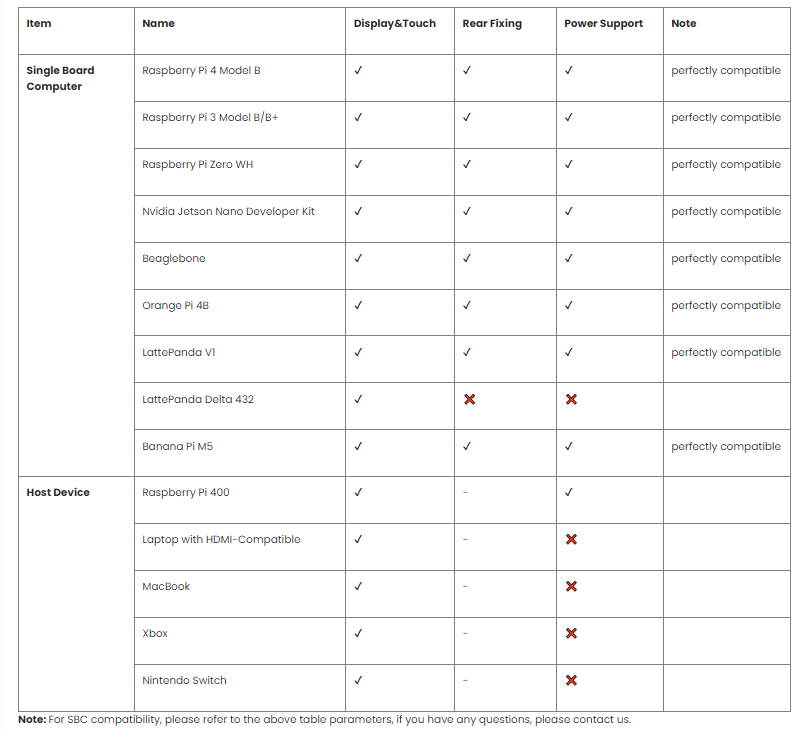

Compatibility


SBC and Device.png

Resources


Crowvision_7.0_Display_Specification
CrowVision_7.0_Schematic_Diagram
