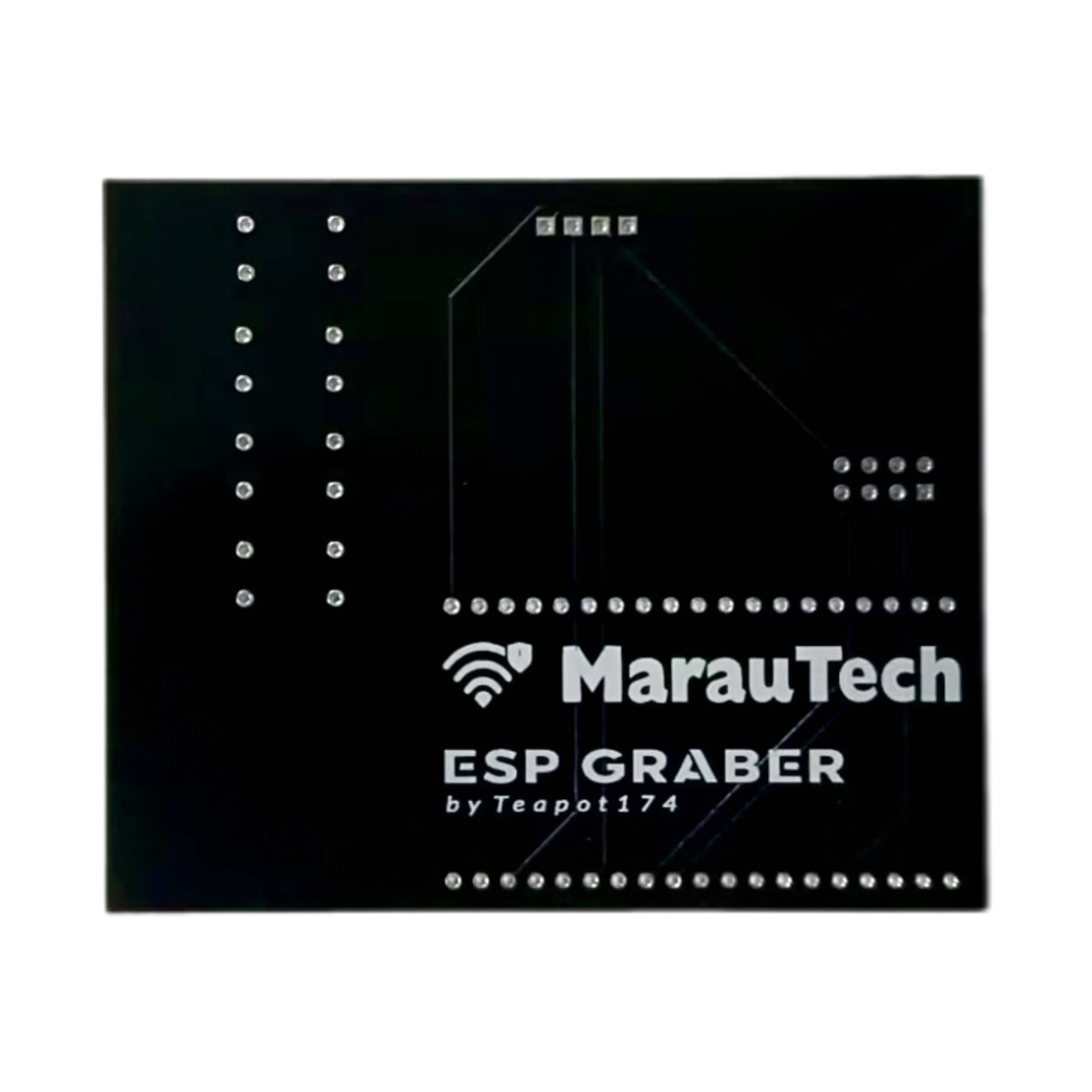

ESP GRABER PCB

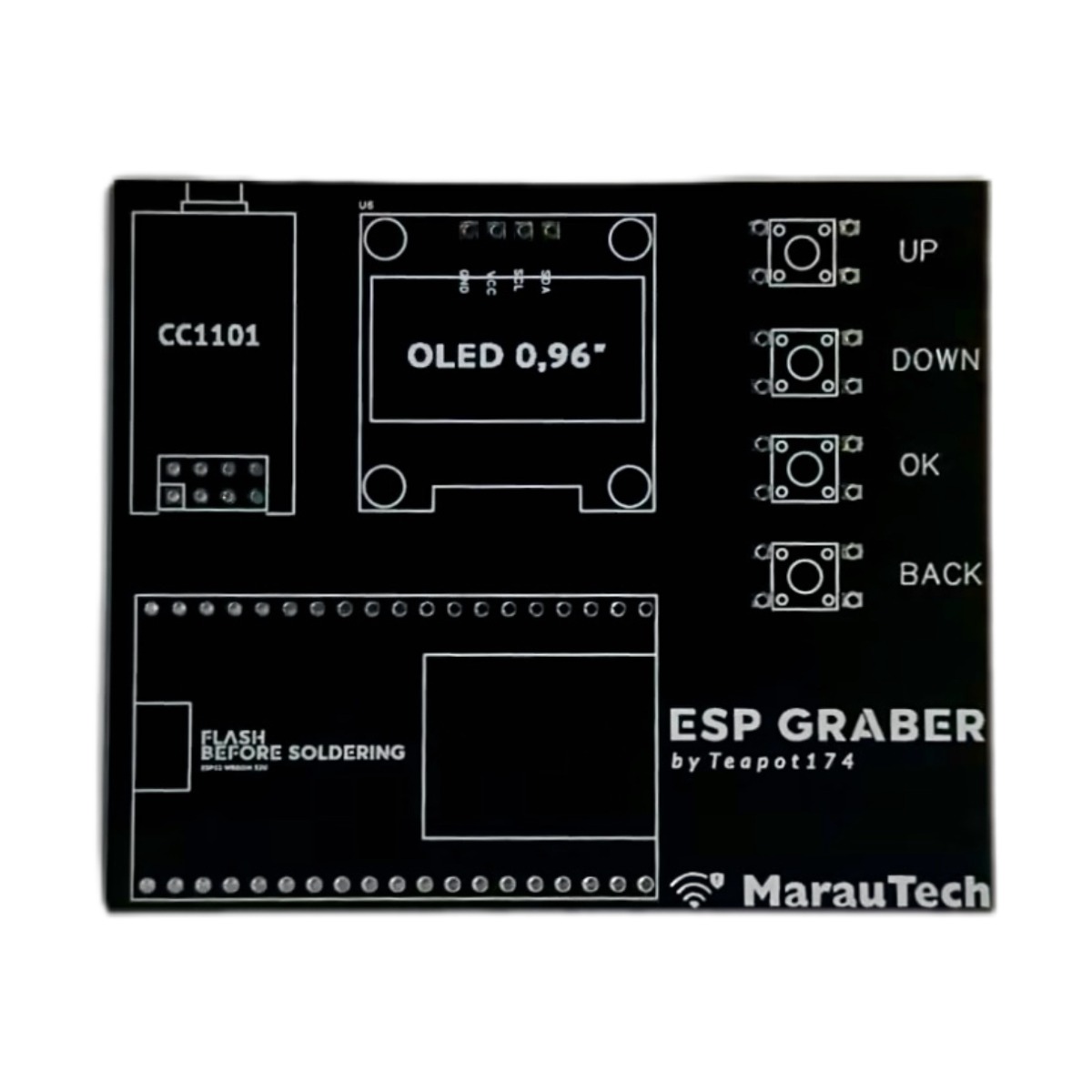

The ESP-GRABER PCB is a do-it-yourself development board designed for experiments with radio communication in the sub GHz band, based on the ESP32 microcontroller and the CC1101 radio module.

The board allows for soldering and integration of the ESP32 development module with the CC1101 transceiver, enabling operation at frequencies of 315 MHz, 433 MHz, 868 MHz, and 915 MHz. This makes it suitable for RF analysis, signal capture, playback, and general wireless protocol experimentation.

For user interaction, the board supports a 0.96-inch I2C OLED display that can be used to display menus, signal data, frequency information, and device status. Navigation and control are performed using four buttons connected directly to the ESP32 GPIO pins.

Overall, the ESP-GRABER is a DIY PCB that provides a clear and practical platform for working with ESP32 and sub-GHz radio modules, suitable for learning, prototyping, and advanced RF projects.

Included:

PRINTED CIRCUIT BOARD ONLY!

NO EXTERNAL HARDWARE!
