ESP32-RF_Ebyte DIY-PCB

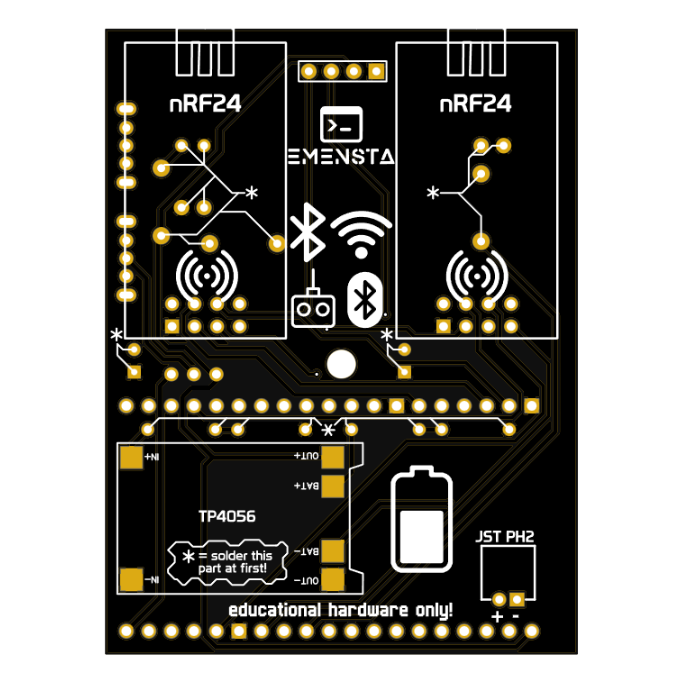

The ESP32-RF_Ebyte DIY-PCB is a plain ugraded PCB for development with possibilities to solder hardware onto, like an ESP32-wroom-32U or wroom-32E DevKitC 38Pin.
There are also 2 nRF24 module pin-holes that can be added and turned on/off seperately. This board version now supports ONLY Ebyte E01 nRF24 modules! Regular black modules will not fit! For these, please refer to the ESP32-RF DIY-PCB: https://www.elecrow.com/esp32-rf-diy-pcb.html
Remember: Please choose the desired voltage for your nRF24 module! On the PCB you will spot this right under the second module on the front side:

There please ONLY bridge the ONE DESIRED VOLTAGE to the pad marked as "nRF"! DO NOT solder all 3 pads together, this will cause overvoltage and destroy your components permanently! The user is responsible for any damage caused by the users mistakes!
In addition you can use a I2C 0.96" OLED display to do even more experimenting on creating cool projects!
To indicate the power status, there is a POWER LED, also a RF LED to indicate whether the RF modules are being powered or not and the 3rd is a STATUS LED with space for a resistor before each, which can be used to show diffrent states of a process etc.
A TP4056 charging module together with a JST PH2 connector can be added to make your projects portable and use them wherever you like, by simply attaching a battery to it.
To turn on the battery power, you can add a slide switch for that, aswell as for both RF modules, you would need a switch to control their power.

Overall it's a DIY-PCB that guarantees plenty of possibilities to have fun and try working on either single hardware or more embedded hardware like both nRF24 modules!

Included:

PCB ONLY!

NO EXTERNAL HARDWARE!
