【PCB only】DIY PCB for Flipper Zero, featuring ESP32C3-Supermini and dual nRF24L01P modules. Supports external antennas via two SMA connectors for extended range, plus 5 V power outputs for extra hardware. Ideal for custom firmware, radio testing, and mobile analysis.

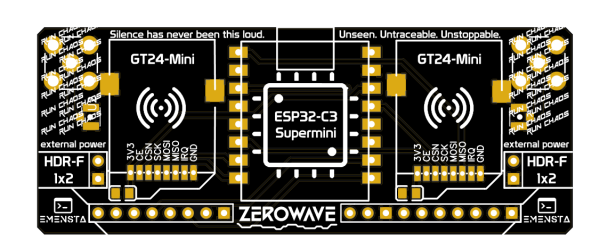

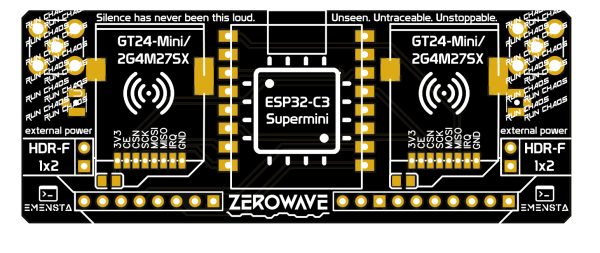

A PCB to DIY solder for the Flipper Zero, running an ESP32C3-Supermini with 2 Ebyte E01-2G4M27SX nRF24L01P modules on the top.
With two SMA Female Right Angle PCB Mount Connectors the range can be increased and external hardware can be povered thanks to two 5V and GND output slots on both sides!
It attached like a hat, flat on the top of your Flipper Zero - taking up minimal space, yet full capability!
- you can make your own firmware to test and explore radio communication, as well as flash and use other projects you found and would like to try! (Additional Flipper Zero apps work with it)
- for radio analysis on the go, when attached to the Flipper Zero
Note:
PCB only!
No external hardware or additional items come with it!
