Icepi Zero

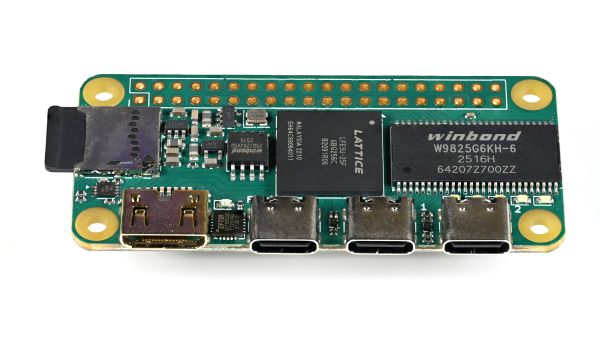

Icepi Zero is an elegant and compact FPGA development board with a Raspberry Pi Zero form factor.

Featuring a powerful Lattice ECP5 FPGA, it enables advanced designs while keeping a small, portable size. It also has multiple USB Type-C ports, as well as a GPDI mini display-out, allowing easy digital video output. Its compact, familiar design is ready for integration into existing projects and enclosures, and it is a great way to get into FPGA gateware experimentation.

Specifications:

• Lattice ECP5U FPGA:
  • 24k LUT
  • 112 KiB of RAM
  • 28 18 x 18 Multipliers
  • Open Source programming toolchain
• 256 Mbit (32 MB) of 166 MHz SDRAM
• 128 Mbit (16 MB) of QSPI Flash
• 50 MHz high precision MEMS oscillator
• 65 x 30 mm (2.56 x 1.18 in)
• Raspberry Pi Zero form factor, compatible with some accessories
•

I/O interfaces

• 1x GPDI mini connector
• 3x USB Type-C Ports
• 1x microSD card slot
• 28 GPIO pins
• On-board USB to JTAG and UART converter

Buttons and Indicators

• 5 user LEDs
• 2 user buttons
