Description:

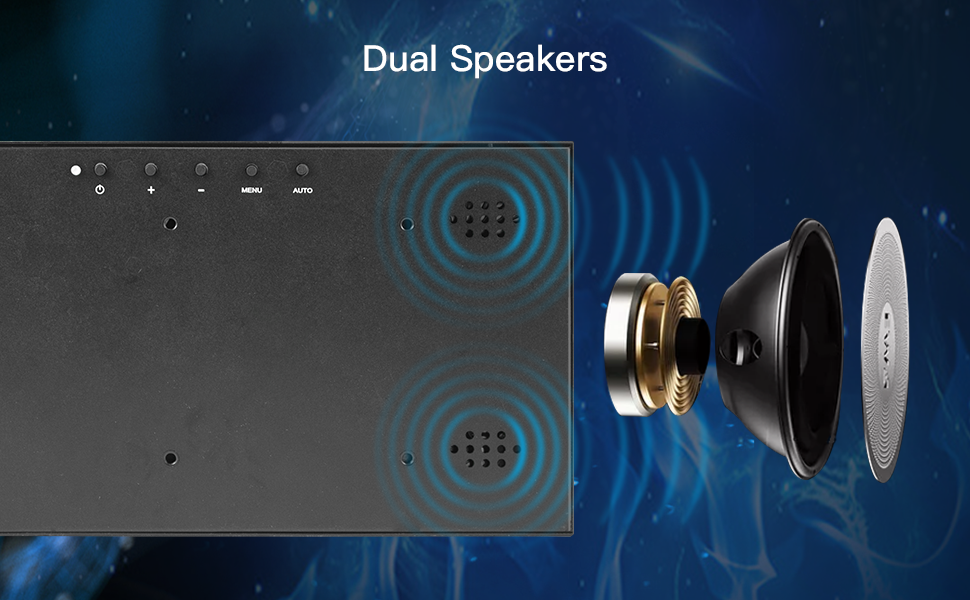

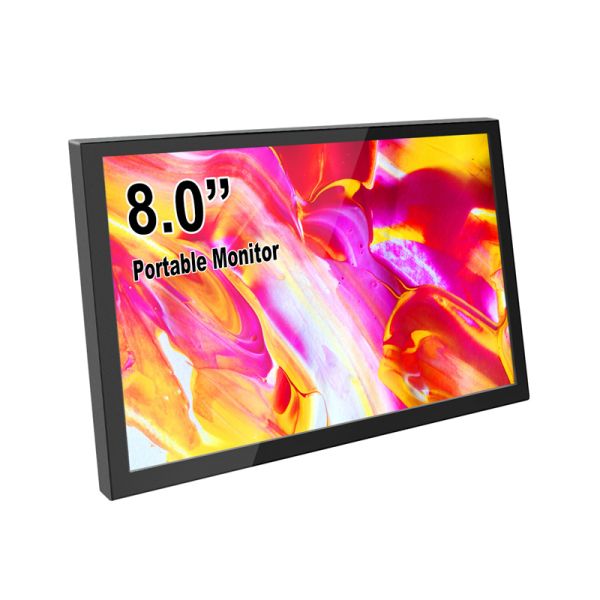

8-inch small mini monitor, the size is only 8*5 inch, simple design and aluminum alloy shell make it creates a nice look while keeping things compact and durable. Support HD 1280x800 resolution, compatible with 1920x1080, IPS screen help keep colors consistent at a wide viewing angle. HDMI port for signal and data transmission, compatible with devices with HDMI port like computers, laptops, Raspberry pi, and game consoles. It’s a USB powered monitor which can be powered by a power bank, PC, and wall plug. This small monitor enhances your audiovisual experiences with built-in speakers. Volume/brightness can be adjusted. And this 8-inch small mini-monitor is VESA mount compatible, it has 4 VESA mounting holes on the back so that makes you convenient free hands.
Specification:

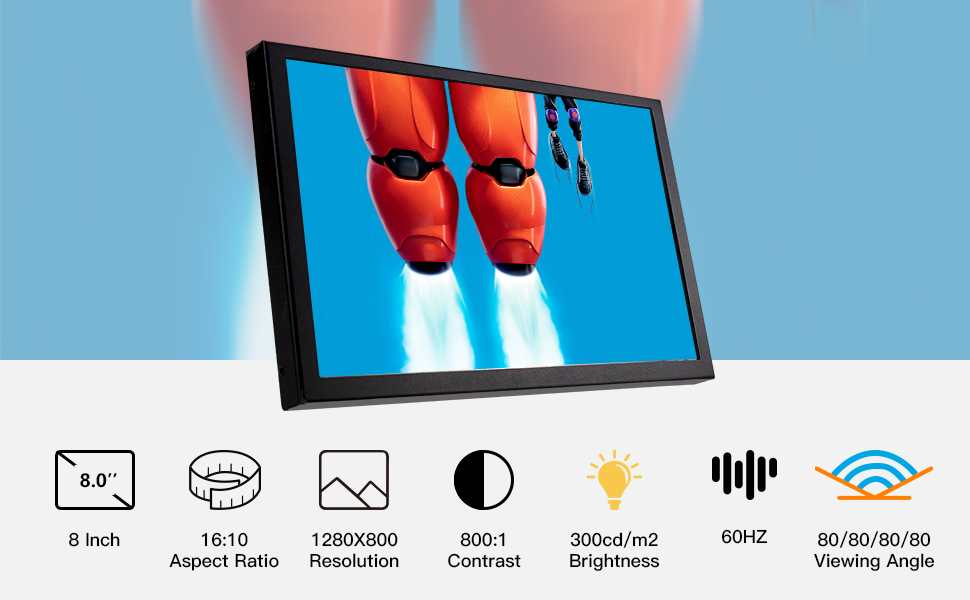

Panel Size: 8 inch
Aspect Ratio: 16:10
Resolution: 1280x800, up to 1080P
Contrast: 800:1
Brightness: 300cd/m2
Response Time: 16 (Typ.)(Tr+Td) ms
Vertical Frequency: 60 Hz
Viewing angle: 80/80/80/80
Display Mode: ADS, Normally Black, Transmissive
Display Color: 16.7M, 72% (CIE1931)
Display Area: 176.64×110.4 mm
Phys. Dimension (WxHxD): 195×127×14 mm

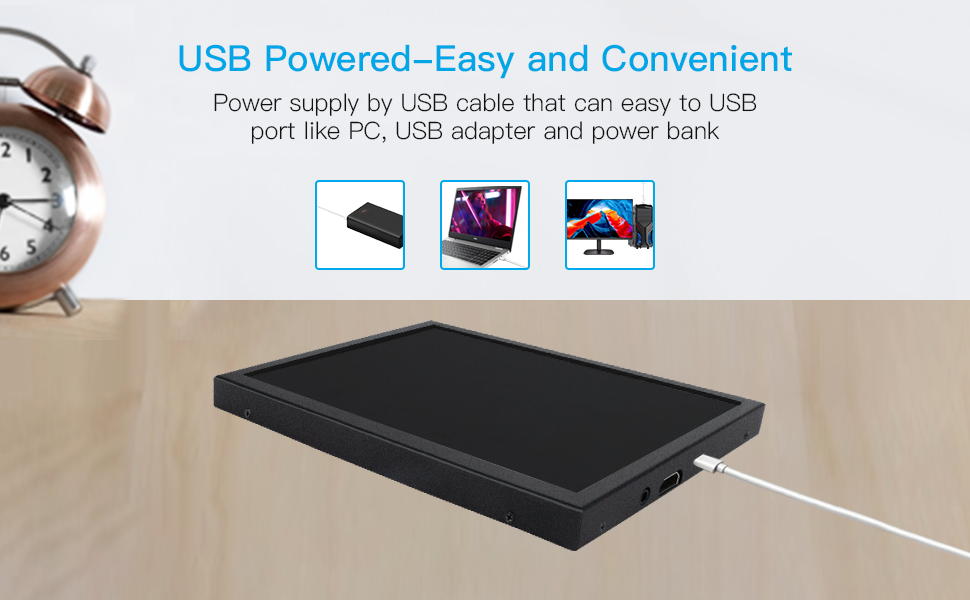

Power Source: USB 5V/2A
Power Consumption: Standby <1 W, Power on <8 W
Net Weight (Esti.): 280(g)
Screws size for the bracket on the back: M4
Package List
1 x 8 inch monitor
1 x Metal stand
1 x HDMI to HDMI cable
1 x USB A Micro USB cable
1 x User manual
User Manual
Raspberry Pi Monitor Comparison
Size | Product Name | Resolution | Display Tec | Display Port | Touch Panel Type |
Screen Dimension (mm) |
VESA | Audio Output | Camera | Microphone | Multi-language Menu | Backlight Buttom | Stand | Device Support |
2.2inch | 2.2inch TFT LCD Color Screen Display Module 240X320 Serial Port | 320X240 | TFT | SPI | × |
33.84x45.12 |
× | × | × | × | × | × | × | Raspberry Pi |
3.5inch | 3.5inch 480x320 MCU SPI Serial TFT LCD Module Display | 480x320 | TFT | SPI | × | 48.96x73.44 | × | × | × | × | × | × | × | Raspberry Pi |
HDMI 3.5 inch 480 x 320 Resolution Touch Screen Monitor for Raspberry Pi | 480x320 | TFT |
HDMI &USB |
Resistive | 85.51x60.6 | × | Earphone | × | × | × | √ | × | Raspberry Pi, PC etc. | |
Elecrow RR035 3.5 Inch 480x320 TFT Display with Touch Screen for Raspberry Pi | 480x320 | TFT | SPI | Resistive | 85x55 | × | × | × | × | × | × | × | Raspberry Pi | |
4inch | RR040I 4 inch HD 800x480 Resolution IPS TFT Touch Screen Display for Raspberry Pi | 800x480 | TFT | HDMI | Resistive | 98.60x58.05 | × | × | × | × | × | × | × | Raspberry Pi, PC etc. |
RC040 4 Inch HD 480x320 TFT Display with Touch Screen for Rapberry Pi | 480x320 | TFT | SPI | Resistive | 100x60 | × | × | × | × | × | × | × | Raspberry Pi | |
5inch | RC050S HDMI 5 Inch 800x480 Capacitive Touch Monitor Built-in Speaker with Backlight Control | 800x480 | IPS |
HDMI &USB |
Capacitive | 119.38x76.2 | × | Speaker | × | × | × | √ | √ | Raspberry Pi, PC etc. |
Elecrow HDMI 5 Inch 800x480 TFT Display with Backlight Control | 800x480 | TFT |
HDMI &USB |
Resistive | 121mmx78 | × | × | × | × | × | √ | × | Raspberry Pi, PC etc. | |
Elecrow RC050 5 inch HDMI 800 x 480 Capacitive Touch LCD Display for Raspberry Pi/ PC/ SONY PS4 | 800x480 | IPS |
HDMI &USB |
Capacitive | 121.11x95.24 | × | Earphone | × | × | × | √ | × | Raspberry Pi, PC etc. | |
Elecrow RR050 HDMI 5 Inch 800x480 Resistive Touch Screen TFT Display for Raspberry Pi B+/2B/3B/4B | 800x480 | TFT |
HDMI &USB |
Resistive | 121mmx78 | × | × | × | × | × | × | × | Raspberry Pi, PC etc. | |
7inch | RC070S 7 inch 1024*600 IPS HDMI Capacitive Touch Monitor | 1024x600 | IPS |
HDMI &USB |
Capacitive | 165x120 | × | Earphone & Speaker | × | × | × | × | √ | Raspberry Pi, PC etc. |
RC070P 7 Inch 1024x600 Raspberry Pi Monitor Touchscreen Capacitive IPS Display with Built-in Speaker & Stand | 1024x600 | IPS |
HDMI &USB |
Capacitive | 177.8x127 | × | Earphone & Speaker | × | × | × | √ | √ | Raspberry Pi, PC etc. | |
Elecrow RC070C 7inch Touch Screen Display 1024x600 Resolution with 2MP Camera for Raspberry Pi 2/3B/3B+/4B | 1024x600 | IPS |
HDMI &USB |
Capacitive | 165x133 | × | × | √ | √ | × | × | × | Raspberry Pi, PC etc. | |
RC070M 7 inch 1024 X 600 Touch Screen Display with 720P Camera for Raspberry Pi/ MacBook Pro./ Windows 10 | 1024x600 | IPS |
HDMI &USB |
Capacitive | 177.06x133.09 | × | × | √ | × | × | × | × | Raspberry Pi, PC etc. | |
Elecrow RC070 7 inch 1024*600 HDMI LCD Display with Touch Screen | 1024x601 | TFT |
HDMI &USB |
Capacitive | 164.7x107.1 | × | × | × | × | × | √ | × | Raspberry Pi, PC etc. | |
7 Inch TFT Display for Raspberry Pi B+ Banana Pi BB BLACK | 800x480 | TFT |
HDMI &USB |
Capacitive | 165x107 | × | × | × | × | × | √ | × | Raspberry Pi, PC etc. | |
RR070 7 Inch 1024x600 HDMI/VGA/AV Display for Raspberry Pi B/B+/2B/3B/4B | 1024x600 | TFT |
HDMI &VGA &AV |
× | 188x129 | × | × | × | × | √ | × | √ | Raspberry Pi, PC etc. | |
7 Inch 800x480 TFT Display for Raspberry Pi B+ Pcduino Banana Pi | 800x480 | TFT |
HDMI &USB |
Capacitive | 164.7x107.1 | × | × | × | × | × | × | × | Raspberry Pi, PC etc. | |
Elecrow SH070 7 Inch 1280x800 Mini HDMI Portable LCD Display for Raspberry Pi with Built-in Speaker & Stand | 1280x800 | IPS |
HDMI &USB |
× | 167x118x10 | × | Earphone & Speaker | × | √ | × | × | √ | Raspberry Pi, PC etc. | |
8inch |
SH080 8 Inch Mini HDMI Portable LCD Display 1280x800 Resolution Monitor Built in Speakers | 1280x800 | IPS |
HDMI &USB |
× | 176.64x110.4 | × | Earphone & Speaker | × | × | × | × | × | Raspberry Pi, PC etc. |
