Christmas ball 2024

Christmas ball light -6*RGB LED, IR RX,TX, CH32V003F4U6, charger

Christmas ball 2024

  • thumbnail-img
  • thumbnail-img
  • thumbnail-img


Tools, APP Software Used etc.

  • Moun River Studio Community

  • WCH-LinkE

Story

Christmas ball or pedestal for Christmass tree

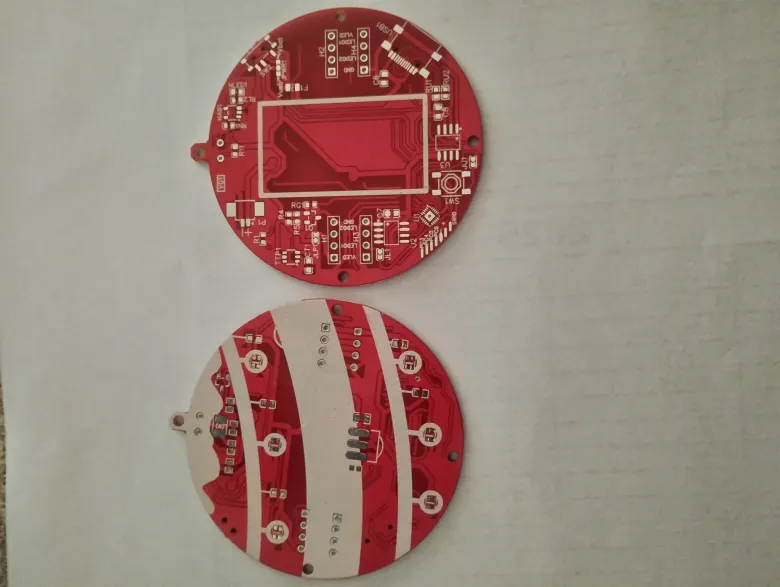

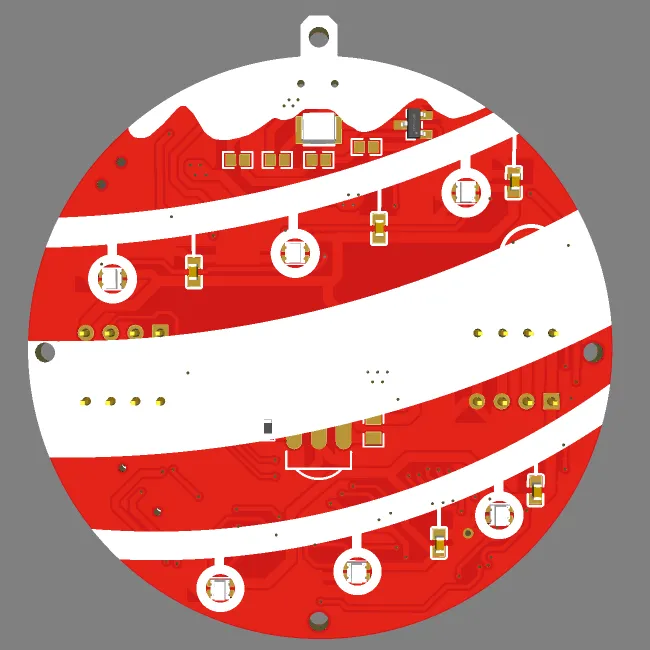

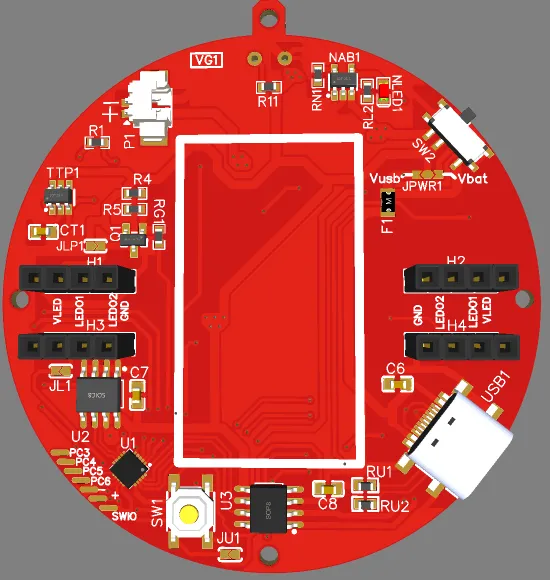

PCB have 6 WS2812B -2020 RGB LEDs, 1 Touchpoint, IR RX,IR TX, USB-UART converter (CH340N), I2C EEPROM,Photoresistor, LTC4054ES5

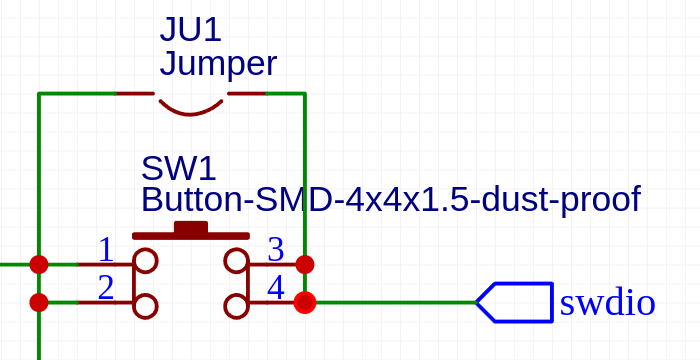

SW1:

Pin1,2 > USBC-SBU

More info later.
