Pinecil LED Ring Add-on

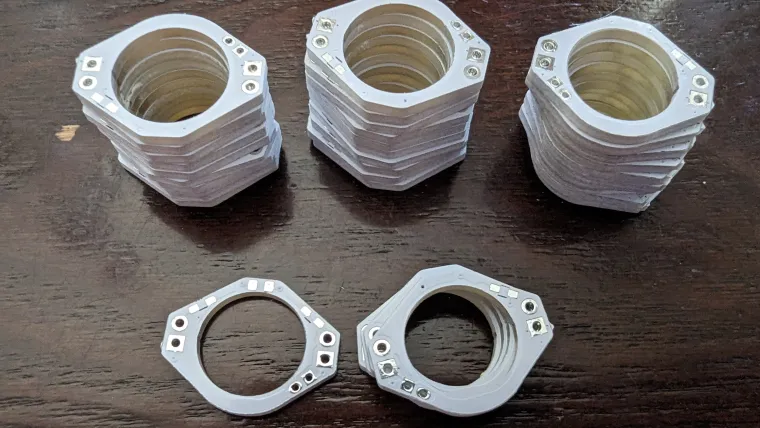

The Pinecil LED Ring adds three LED lights to the Pinecil soldering iron to improve soldering in dark environments. This addition to the Pinecil soldering iron fits just above the soldering tip on the plastic area by friction so no glueing is required. It is easy to assemble and add to the iron using another soldering iron to connect the internals.

Pinecil LED Ring Add-on

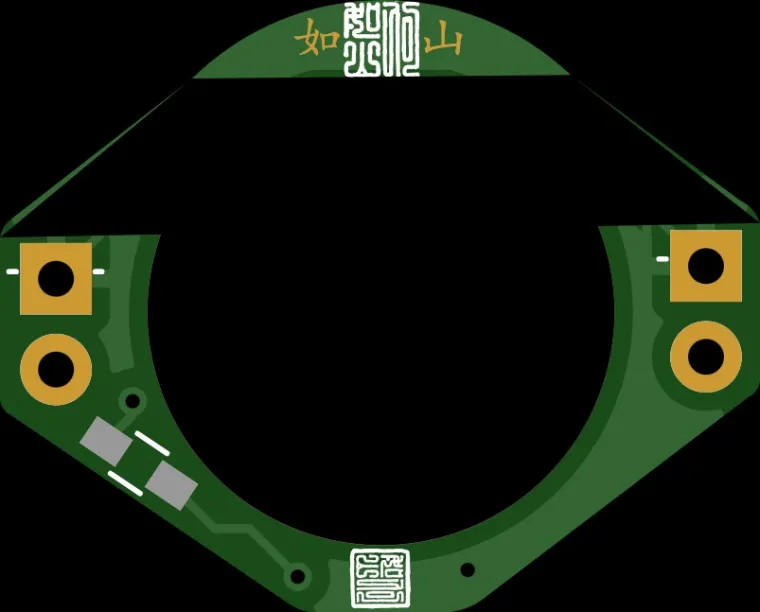

  • thumbnail-img

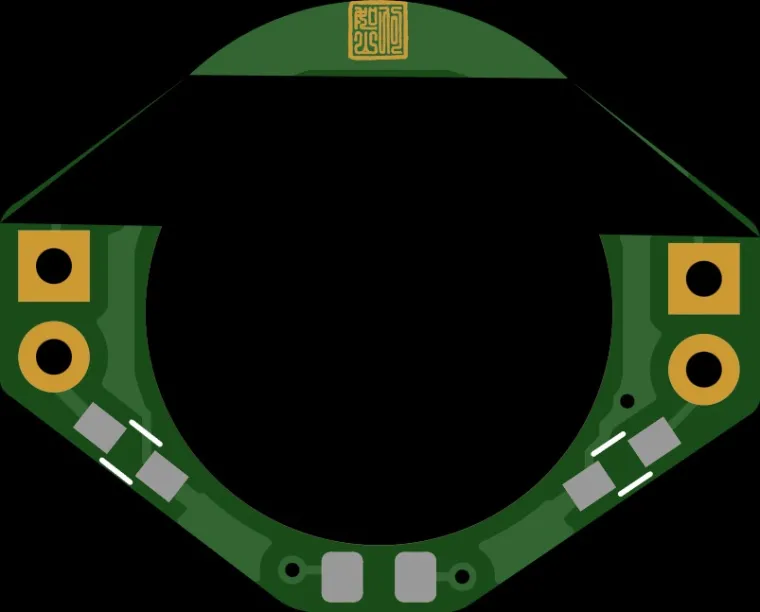

  • thumbnail-img
  • thumbnail-img


Hardware Components

  • Resistor 75 ohm 0805

    X 1

  • LED 3mm THT

    X 1

  • 26-30 awg wire

    X 1

  • SMD LED 0805

    X 1

  • Resistor 75 ohm 0805

    X 1

  • Resistor 75 ohm 0805

    X 1

  • LED 3mm THT

    X 1

Tools, APP Software Used etc.

  • Kicad

    fenxiang

Story

Pincecil LED Ring about:

I developed the Pinecil LED Ring through some encouragement from the Pinecil Discord channel and I wanted to release the design for others to use if they would like with all the material and design documents on my GitHub. The design has gone through one revision since release and is now much easier to assemble and add to your Pinecil soldering iron. The light helps with soldering in all environments and is always on when your iron is on. The PDF guide is still applicable on how to assemble the project and connect it to the Pinecil.

GitHub:

Herushan/Pinecil_LED_Ring: LED ring attachment for the Pinecil V2 soldering iron (should work for V1 as well as it goes on the body) (github.com)

Video on how to assemble the outside parts of the Pinecil LED Ring:

https://youtu.be/LMbjwjDbSew
