Elecrow 7inch touchscreen bezel/frame mount

This is a 3D printable mounting bezel/frame for the Elecrow 7 inch Pi touchsreen. Multiple mounting brackets are included. The bezel can be printed in full or in 2 halves that fit together for smaller 3D Printers. The Bezel has 2 boltholes on al 4 sides so it can be mounted in any position.

Elecrow 7inch touchscreen bezel/frame mount

  • thumbnail-img
  • thumbnail-img
  • thumbnail-img
  • thumbnail-img


Story

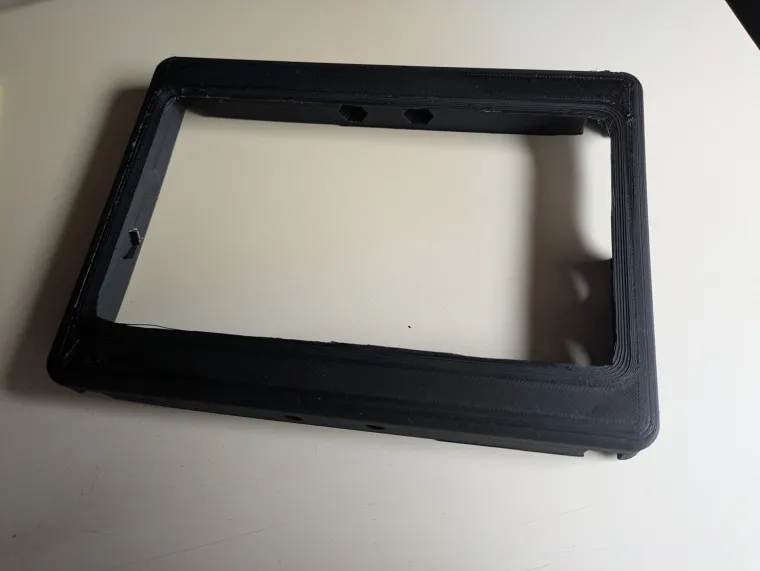

This is a mounting frame or bezel for the elecrow 7inch touchscreen (screen is compatibe with a variety of Pi's).

-The .Step-files are included so you can make your own adjustments or remixes of this part.

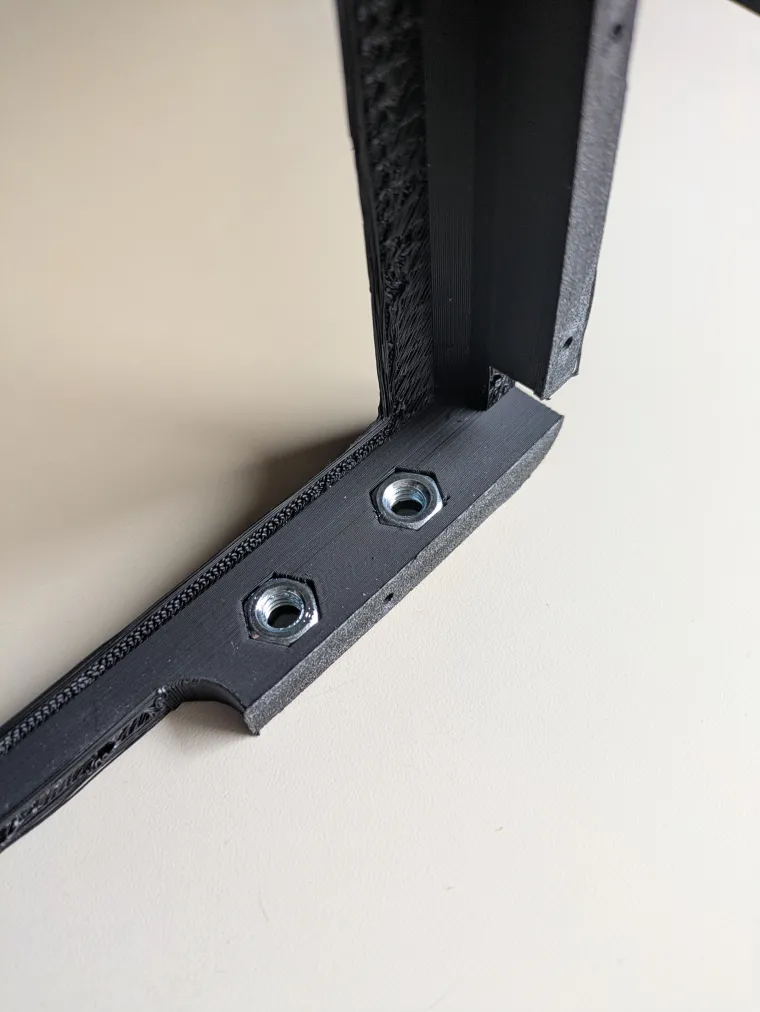

-The bezel has 2 mounting holes (dimensions 6.2mm for M6 bolts, spaced 25mm apart) on all 4 sides, so you can choose which mounting position suits you best.

-Multiple different mounting brackets are included.

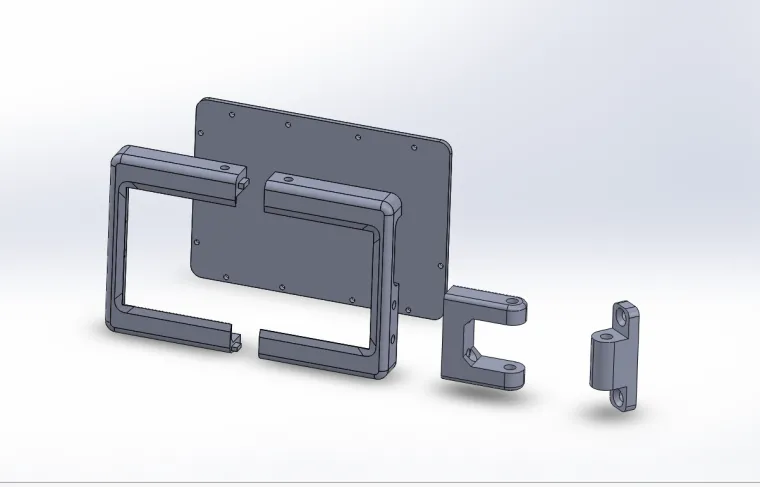

-The bezel can be printed in full or in 2 halves that connect together, if you don't have enough printing area on your 3D Printer.

-2 standard M6 bolts and 2 M6 nuts are needed. Length of the bolt depends on the mounting bracket. For the swivel hinge an M8x70 bolt and M8 nut is needed.

Feel free to make your own version or mounting brackets !! :)
