OrangePi Zero 3 Case_wit relay

A case to protect your OrangePi Zero 3 MCU board, using a relay with it. With WIFI antenna and fan

OrangePi Zero 3 Case_wit relay

  • thumbnail-img
  • thumbnail-img
  • thumbnail-img
  • thumbnail-img
  • thumbnail-img


Tools, APP Software Used etc.

  • FDM Printer

Story

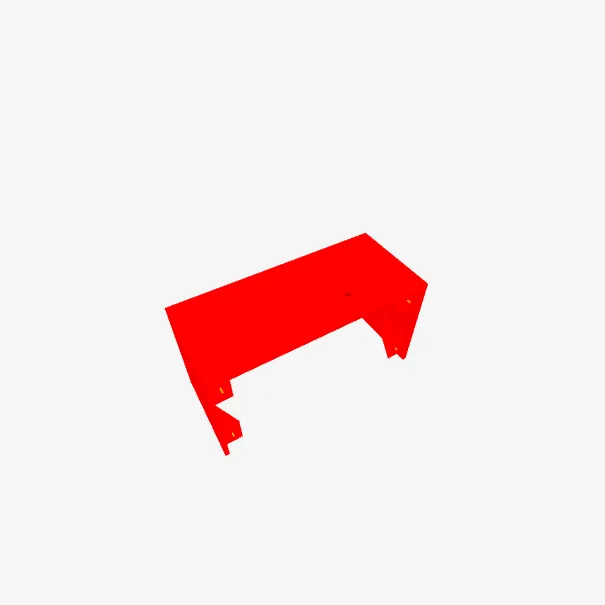

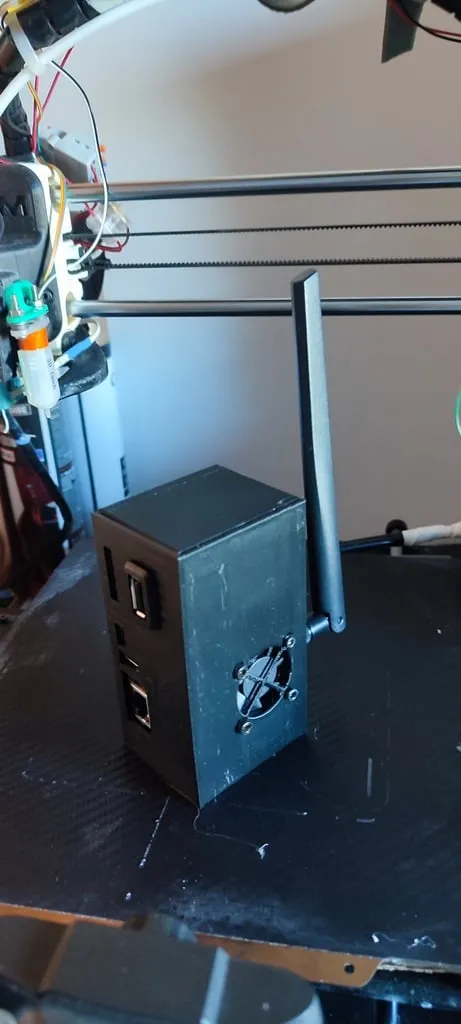

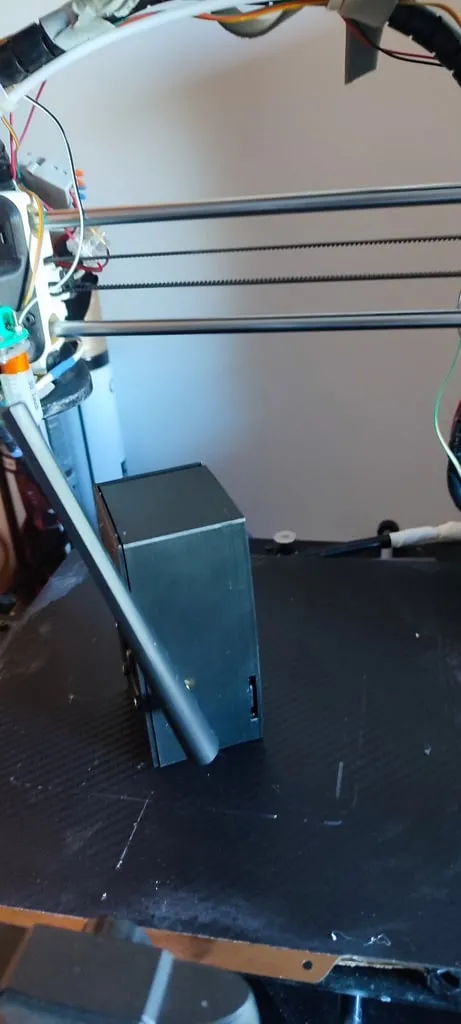

Just a Case to protect the MCU board OrangePi Zero 3, but with a place to put a relay next to it, a fan to refresh the board and an antenna for the wifi. SD card is detachable, wires from relay accesible and all ports are visible and usable

Topic
View All
#orangepi #case #orange #pi #zero #carcasa #zero3
License: Attribution-ShareAlike (CC BY-SA)
