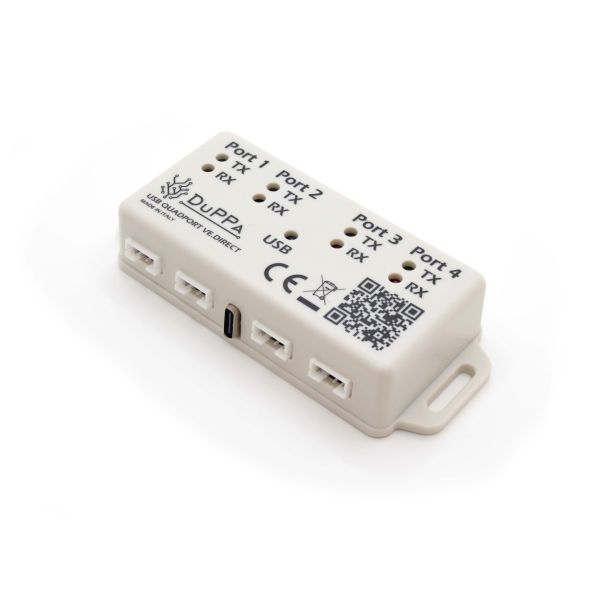

USB Quadport VE.Direct

This is an enhanced version of the Isolated 4 port USB to TTL UART FTDI interface, specifically designed for Victron devices. It features a USB Type-C connector and four VE.Direct ports, ensuring broad compatibility with any device running Venus OS with a USB interface. Additionally, it supports integration with Raspberry Pi, Windows, Linux, and other platforms.

Features

• Original FTDI FT4232H-56Q
• Up to 12Mb/s each port
• Plastic case 97 x 41 x 20 mm
• 4 isolated port VE.Direct
• Compatible with original Victron cables
• Each ports can work independently at 3.3V up to 5V
• Power, TX and RX LEDs indicators
• Internal switch for disable/enable the LEDs
• USB type-C connector
• Compatible with: Linux, Windows, Android and Mac OS

Internal switch for enable or disable the LEDs

Compatible with Victron cables

Documentation:

• Manual
• Certification (in progress)

3D Step File:

• Quadport VE.Direct STEP file

Tutorial genteelly from Off-Grid Garage:

https://youtu.be/V857aKuUnVo?si=b-vGzrthektJMfzP

Disclaimer:

This product is neither affiliated with, endorsed by, nor certified by Victron Energy. Victron and VE.Direct are registered trademarks of Victron Energy and are cited here exclusively to reflect protocol support.

Common Issue and questions:

• Power LED is ON, but no communication This is a common issue. The most likely cause is the use of a USB cable that only carries power and lacks data lines. Solution: Replace the cable with a USB data cable.
• Is it compatible with Victron Cerbo ? Yes it is compatible
• Random disconnections Possible causes and solutions: -Faulty or degraded SD card: Try replacing the SD card in your system. -Poor quality or overly long USB cable: Use a shorter, high-quality USB cable.
• Not all VE.Direct ports are working Try rebooting the device to reset the communication interfaces.
