3.5inch TFT Color Screen Module 320 X 480 Support Arduino UNO Mega2560
$9.90
Availability:
Out of stock
SKU
ARS36125D
Weight
65g
Related Products:
×
Add to cart successfully!
Add to cart successfully!
Customers Who View This Item Also Bought
[Plug & Play] Support plug-and-play development boards such as ArduinoUNO and Mega2560
[3.5” Touch Screen] With 480x320 resolution, supports resistive touch
[Flexible Interface] Using 8-bit parallel interface with fast transfer speed
[SD Card Slot] Comes with an SD card slot, supports expanding storage

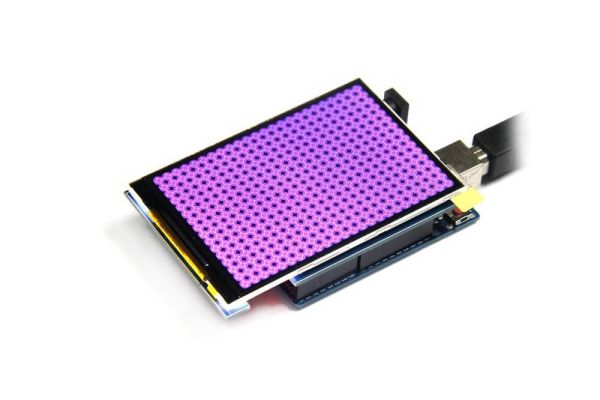

3.5 inch Arduino Display
This is a 3.5-inch Arduino TFT color screen with 480 * 320 resolution.
* Plug and play, strong compatibility. Supports plug and play use of development boards such as Arduino UNO and Mega2560, without additional wiring.
* Equipped with a 480x320 resolution display, supporting touch function and a touch pen, users can interact with the device through intuitive touch operation.
* Supports 16-bit RGB 65K color display, which can present rich colors and meet various visual needs.
* Efficient data transmission. Using an 8-bit parallel bus, the data refresh speed is faster than the traditional serial port SPI.
* Onboard 5V/3.3V level conversion IC, compatible with 5V and 3.3V operating voltages, ensuring seamless docking with various development boards.
* Onboard SD card slot, convenient for users to expand storage, and provides more flexibility and convenience for experiments and project development.
* Rich development support. Provide Arduino libraries and rich sample programs to help users get started quickly and easily find development resources suitable for them.
No matter you are a beginner or an experienced developer, this Arduino display will be a great helper in your project, helping you realize more creativity and functions.
Customized requests can be discussed(based on MOQ), you can contact us at service@elecrow.com
Feature
- Supports plug and play in the use of development boards such as ArduinoUNO and Mega2560, no wiring required
- 480X320 resolution, supports 16-bit RGB 65K color display, clear display effect
- Adopts 8-bit parallel bus, faster than serial port SPI refresh
- Onboard 5V/3.3V level conversion IC, compatible with 5V/3.3V working voltage
- Equipped with SD card slot for easy expansion of experiments
- Provides Arduino library and rich sample programs
- Available for C51 and STM32 platforms and provides rich sample programs
- Provides underlying driver technology support
Specification
|
Screen Size |
3.5(inch) |
|
Display Color |
RGB 65K color |
|
Screen Type |
TFT |
|
Resolution |
480x320(pixels) |
|
Touch Screen Type |
Resistive touch screen |
|
Driver IC |
ILI9486 |
|
Module Interface |
8-bit parallel interface |
|
Operating Voltage |
5V/3.3V |
|
Operating Temperature |
-20℃~70℃ |
|
Storage Temperature |
-40℃~70℃ |
|
Active Area |
73.44*48.96(mm) |
|

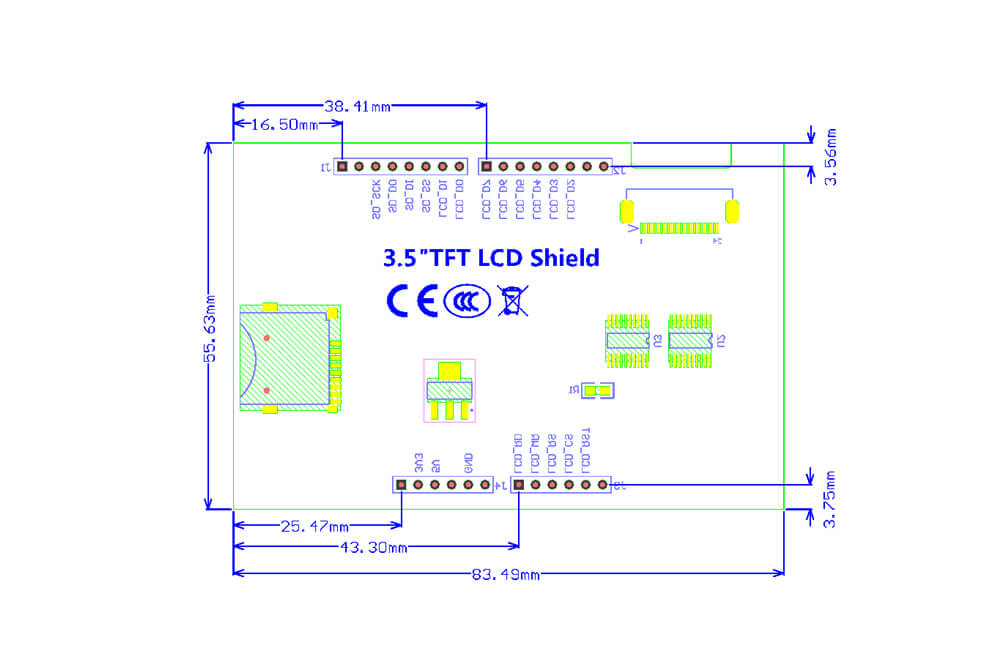

Module PCB Size |
85.49*55.63(mm) |
Interface Definition
|
Number |
Pin Label |
Pin Description |
|
1 |
LCD_RST |
LCD bus reset signal, low level reset |
|
2 |
LCD_CS |
LCD bus chip select signal, low level enable |
|
3 |
LCD_RS |
LCD bus command / data selection signal, low level: command, high level: data |
|
4 |
LCD_WR |
LCD bus write signal |
|
5 |
LCD_RD |
LCD bus read signal |
|
6 |
GND |
Power ground |
|
7 |
5V |
5V power input |
|
8 |
3V3 |
3.3V power input, this pin can be disconnected |
|
9 |
LCD_D0 |
LCD 8-bit data Bit0 |
|
10 |
LCD_D1 |
LCD 8-bit data Bit1 |
|
11 |
LCD_D2 |
LCD 8-bit data Bit2 |
|
12 |
LCD_D3 |
LCD 8-bit data Bit3 |
|
13 |
LCD_D4 |
LCD 8-bit data Bit4 |
|
14 |
LCD_D5 |
LCD 8-bit data Bit5 |
|
15 |
LCD_D6 |
LCD 8-bit data Bit6 |
|
16 |
LCD_D7 |
LCD 8-bit data Bit7 |
|
17 |
SD_SS |
SD card SPI bus chip select signal, low level enable |
|
18 |
SD_DI |
SD card SPI bus MOSI signal |
|
19 |
SD_DO |
SD card SPI bus MISO signal |
Package List
- 1x 3.5 inch Touch Display
- 1x Touch Pen
