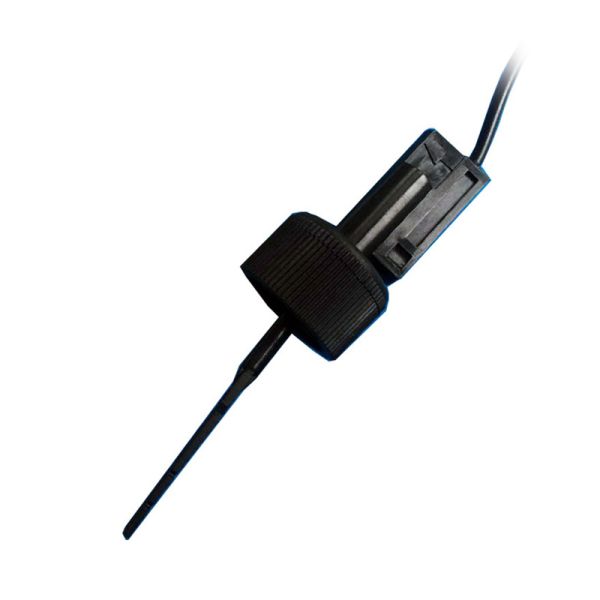

Baffle Flow Sensor Switch

This flow switch can be widely used in industrial automation / mechanical equipment/air compression industry/refrigeration and air conditioning field. The water flow switch magnet is not in the flowing water channel and can be used in sewage systems and can work normally.

Specification

• Installation thread: external thread G3/4” outlet, external thread G3/4” inlet
• Shell material: plastic nylon or PBT
• Wire: AWG22, 300mm UL1430
• Installation direction: vertical or horizontal
• Contact form: S.P.S.T
• Load current: 1.5A
• Switching current: 0.5Amax
• Switching voltage: 100Vdc
• Power: 10VA
• Setting flow: 0.75~3L/min
• Set flow accuracy: ±10%
• Large flow: 5~15L/min (pressure drop 10 PIS)
• Working pressure: 300PSI max
• Impact: 30g
• Vibration: 35~500Hz
• Operating temperature range: 0~125℃
• Liquid medium: clean water or liquid
• Working voltage: 220V (V)
• Overload current: 3 (A)
• Waterproof rating: IP65
• Product Certification: UL
• Rated voltage range: 36V and below

Package list

• 1* Baffle Flow Sensor Switch
