Meowbit-Codable Console for Microsoft Makecode Arcade

SKU
MIB07540M
In stock
weight
75.0000
$39.90
-
+
Overview

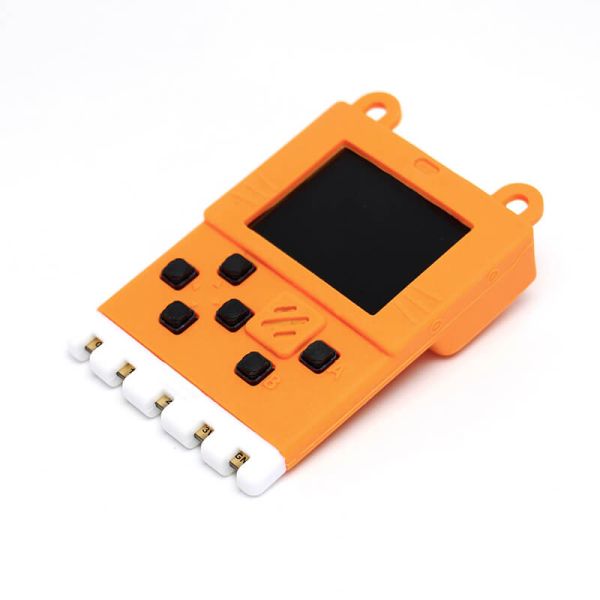

Meowbit is a programmable game console that you can code the unique game by yourself with Makecode arcade and Python. Also, for it can compatible with most Micro:bit extension boards, it can work as a control panel to help you create a robot.
Meowbit is a programmable game console that you can code the unique game by yourself with Makecode arcade and Python. Also, for it can compatible with most Micro:bit extension boards, it can work as a control panel to help you create a robot. The appearance design is 1.8inch 160 x 128 TFT color screen that makes the game more intuitive. It is funny that not only it has DFU mode button, reset button, but also 6 programmable buttons, you can enjoy the special game interface and operation mode. Built-in light sensor, temperature sensor, SD card slot, buzzer, SD card slot, and JAC interface. Moreover, it has the excellent function is that support multiplayer connector, multiple languages and draft the chart. It is compatible with Microbit’s 40 PINs Goldfinger. Meowbit is great for exercise teenager coding ability, it is a very interesting programming game machine for your child to learn to program.
Meowbit-Codable-Console-for-Microsoft-Makecode-Arcade-1-Detail
Meowbit-Codable-Console-for-Microsoft-Makecode-Arcade-2-Detail
Meowbit-Codable-Console-for-Microsoft-Makecode-Arcade-3-Detail
Meowbit-Codable-Console-for-Microsoft-Makecode-Arcade-4-Detail
  • 1.Charging/work indicator
  • 2. Light sensor
  • 3. Power switch
  • 4. Programmable led x 2
  • 5. Reset
  • 6. DFU mode button (use for toggle firmware or for bringing up to menu in Makecode Arcade mode)
  • 7. 160 x 128 TFT color screen
  • 8. Temperature sensor
  • 9. Direction button x 4
  • 10. Buzzer
  • 11. Button A, B x 2
  • 12. Compatible with microbit’s 40 PIN Goldfinger
  • 13. USD program download port/charging ports
  • 14. SD card slots (use for store program or extend wireless modules)
  • 15. Multiplayer connector
  • 16. Mp6050 gyroscope
  • 17. 3.7V lithium battery package interface
  • 18. MCU
  • 19. 2MByte spi-flash (default download Unicode character table)
  • 20. Signature area

Features

  • 1.8inch 160 x 128 TFT color screen
  • Contains 6 programmable buttons,1 buzzer, DFU mode button, mp6050 gyroscope, JAC interface
  • Built-in light sensor, temperature sensor, SD card slot (For external storage)
  • Support multiplayer connector and edge connector, multiple languages and draft the chart
  • Compatible with Microbit’s 40 PINs Goldfinger

Specifications

  • MCU:STM32F401RET6, 32-bit ARM Cortex M4 core
  • Operating voltage: 3.3V
  • Supply voltage: USB(5V), Lithium battery pack(3.7~4.2V)
  • Output current: 500mA(max)

Package list

  • 1 x Meowbit game console
  • 1 x USB wire

Wiki & External links
