Cat-as-a-thing in IoT - tracking cat walks with LoRa and TTN

LoRaWAN + BroWAN tracker + TTN gateway yield a lightweight, cost-effective, long-range cat tracking system, bypassing commercial restrictions. Hardware and software are open to further customization and alert automation.

Cat-as-a-thing in IoT - tracking cat walks with LoRa and TTN

  • thumbnail-img
  • thumbnail-img
  • thumbnail-img
  • thumbnail-img


Story

Context & Motivation



An engineer in Duivendrecht, near Amsterdam, wanted safe outdoor roaming for his cat Escobar.



Commercial trackers (Invoxia, Findster, Tractive, AirTags) failed due to poor coverage, high SIM fees, sluggish updates, or excessive bulk.



Chosen solution



LoRaWAN + TTN gateway



Deployed indoor TTN LoRaWAN gateway (~€70), extended range via external antenna setup (Aurel GP‑868 + cable)



Tracker hardware



Selected BroWAN Object Locator: 28 g, 540 mAh battery, movement-activated, ~8–10 hr life at 1 min intervals, 1 km range.



Cat harness modified with Velcro pockets to hold BroWAN, Findster (backup), Tile (local buzzer)



Functionality & pros/cons



LoRa sends ~50 bytes uplink per minute with GPS & battery data; TTN gateway forwards via console/API



Lacked buzzer in BroWAN; Findster & Tile added to assist locating when nearby



Setup supports low-cost transmissions over community TTN mesh with no SIM fees.

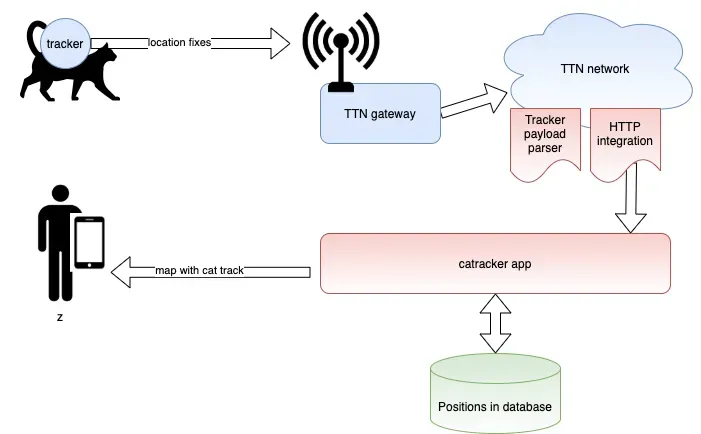

Software stack



TTN console configures device/app and byte parser.



HTTP integration pushes data to custom backend (Scala + TypeScript).

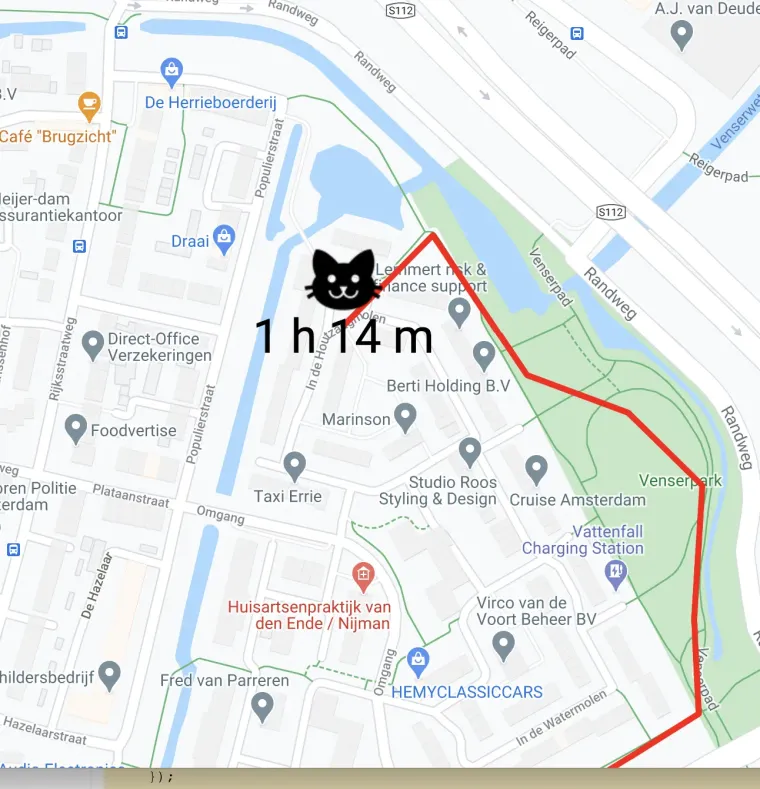

Real-time route tracking via websockets in browser
