DIY Social Media Follower Display (Awtrix)

3D Printed Matrix display that allows you to display anything you

DIY Social Media Follower Display (Awtrix)

  • thumbnail-img
  • thumbnail-img
  • thumbnail-img
  • thumbnail-img
  • thumbnail-img
  • thumbnail-img
  • thumbnail-img
  • thumbnail-img


Hardware Components

  • 8*32 WS2812B Matrix Display

    X 1 fenxiang
  • Temperature & Humidity Sensor

    X 1 fenxiang
  • TTP223 Capacitive Touch Switch

    X 3 fenxiang
  • On/Off Switch

    X 1 fenxiang
  • Power Supply

    X 1 fenxiang
  • Fully Assembled PCB

    X 1 fenxiang
  • M3 Thread Inserts

    X 23 fenxiang
  • M3X8 Screws

    X 11 fenxiang
  • M3X5 Screws

    X 16 fenxiang

Tools, APP Software Used etc.

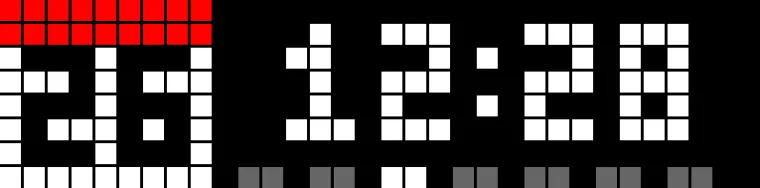

  • Awtrix 3

Story

Welcome!

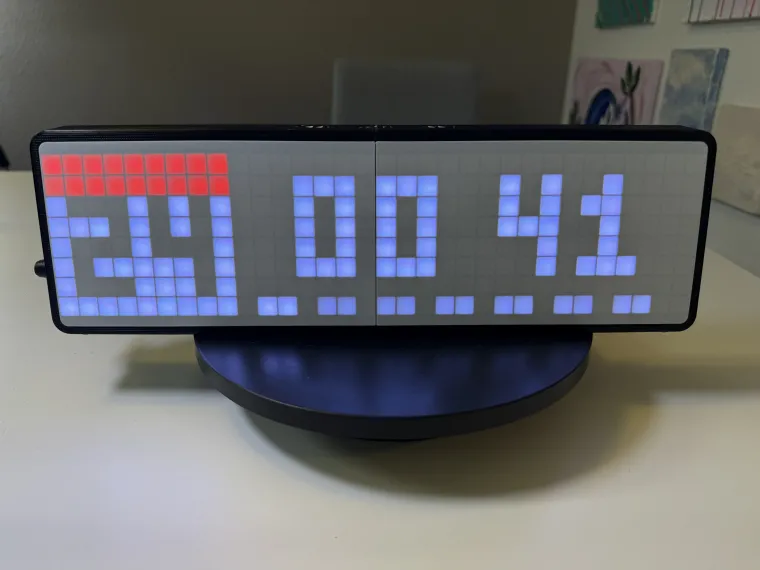

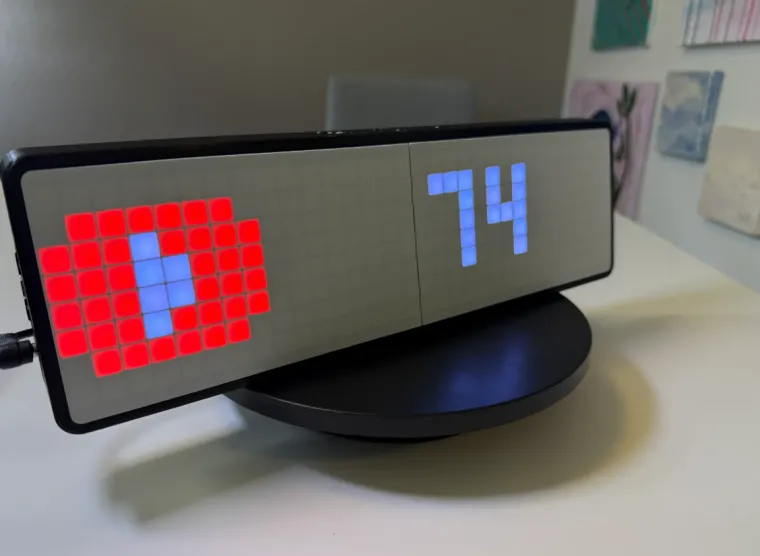

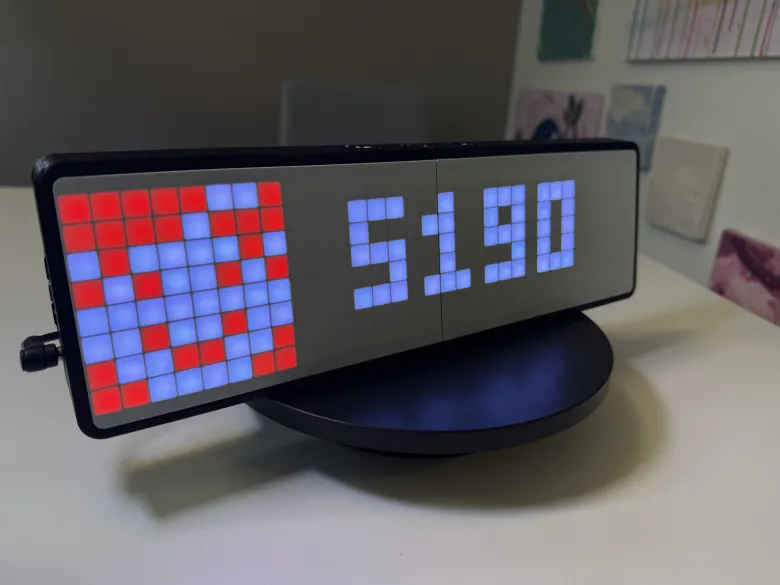

If you're looking for a way to display all your social media followers' information on one device, this project is for you! The project uses Awtrix software (open-source), and basically, it is a blank display, and you can display ANYTHING you want there (not only social media information).

This is my first project on Hackaday, so if it feels like this post is all over the place, it's because I'm still learning :)

This project uses an open-source project called Awtrix3 - link

I wrote step-by-step instructions for the project, and all the 3d printed parts needed are available on my Printables.

The Display has 3 Touch sensors, and a Temp/Humidity sensor. You can seed all the information Via MQTT to HomeAssistant and control it via HA.

Printed parts needed:

1x Body left
1x Body Right
1x Diffuser Left
1x Diffuser Right
1x Diffuser Connector
4x LED Support

Electronics:

8*32 WS2812B Matrix Display -
Temperature & Humidity Sensor
TTP223 Capacitive Touch Switch
On/Off Switch
Power Supply

Need to choose from 2 options:

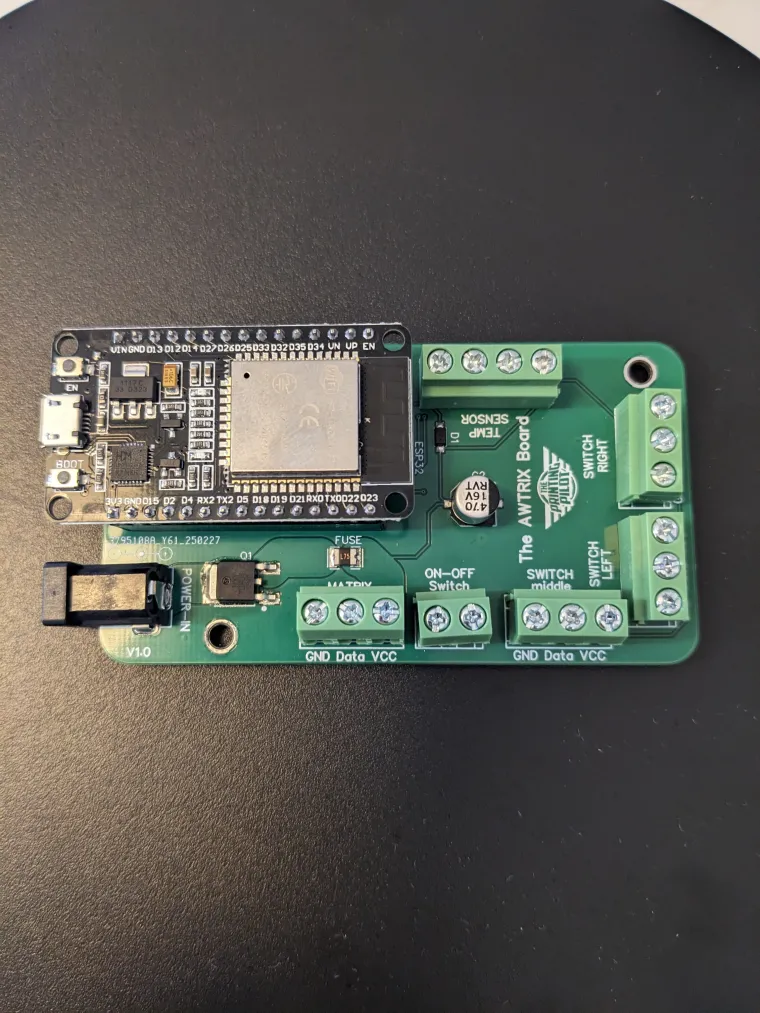

PCB - Fully assembled PCB that will make the project much easier (and will also help and support us to make more projects like that) -

OR

ESP32 version -  you will have to wire everything yourself and hot glue the power connector and the ESP to the body of the display.

Hardware:

M3 Thread Inserts (x23)
M3X8 Screws (x11)
M3X5 Screws (x16)

Step-by-Step Video (Body + Software): the easy way

Code
  • https://www.printables.com/model/1244323-diy-social-media-follower-display-awtrix
    View

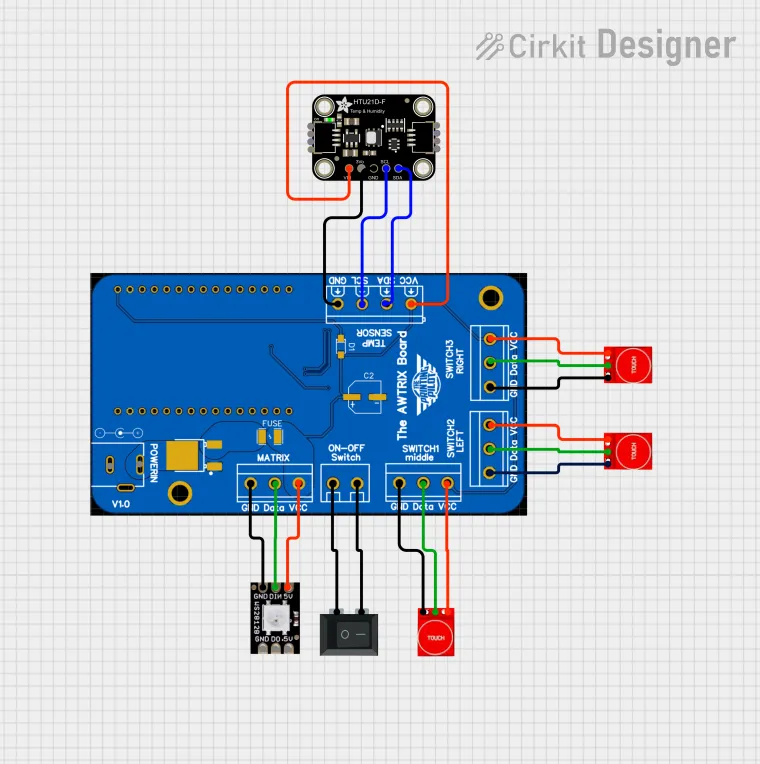

Schematic and Layout
