DOTS: A 6-Channel Eurorack Trigger/Gate Module

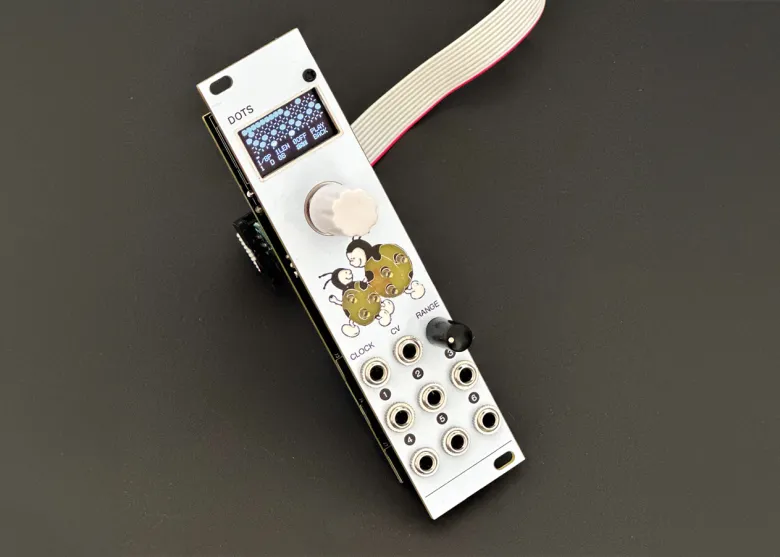

DOTS is a compact, 6-channel Eurorack module designed for generating triggers and gates. This open hardware project allows you to build the module yourself, with instructions and resources provided. Please visit the https://www.d-o-t-s.net website for more info

DOTS: A 6-Channel Eurorack Trigger/Gate Module

  • thumbnail-img
  • thumbnail-img
  • thumbnail-img


Tools, APP Software Used etc.

  • Kicad

    fenxiang

  • FreeCAD

    fenxiang

Story

DOTS: A 6-Channel Eurorack Trigger/Gate Module

Overview

DOTS is a compact, 6-channel Eurorack module designed for generating triggers and gates. This open hardware project allows you to build the module yourself, with instructions and resources provided. It is built around an ATmega328. All source files are avaiable at github. For more informations and build instrurcions. Please check out the projects website https://www.d-o-t-s.net/

Features

  • 6-Channel Trigger/Gate: Generate triggers and gates for your modular system.
  • Compact Size: Only 6hp wide, making it a handy addition to your setup.
  • Sync Capabilities: Includes a clock and reset input, allowing it to function as a master or slave.
  • Visual Feedback: Equipped with a screen and an UI.
Code

  • Github with all source files

    https://github.com/johannesstrueber/dots
    View
Schematic and Layout

  • Github

    https://github.com/johannesstrueber/dots
    View
Topic
View All
#eurorack #trigger #audio #module #synthesizer #sequencer #clock #arduino
License: Attribution-NonCommercial (CC BY-NC)
