ELECROW 5 inch Touch Screen 2020 Extrusion Mount

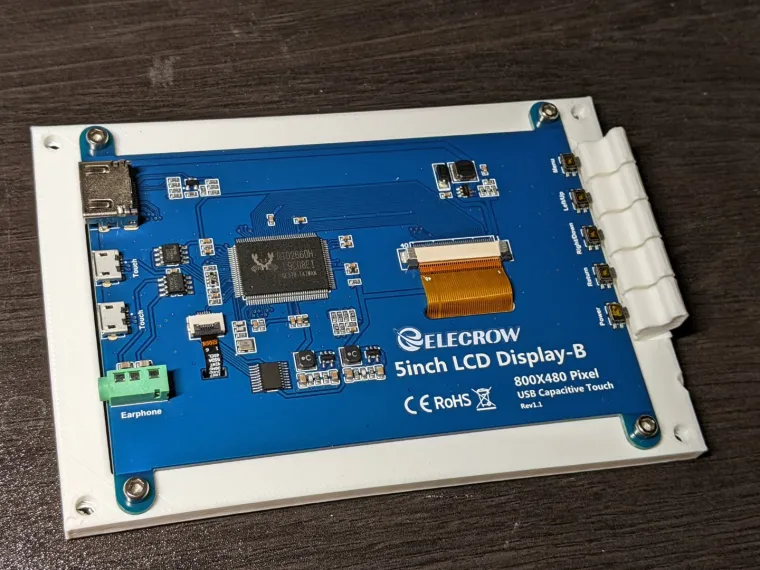

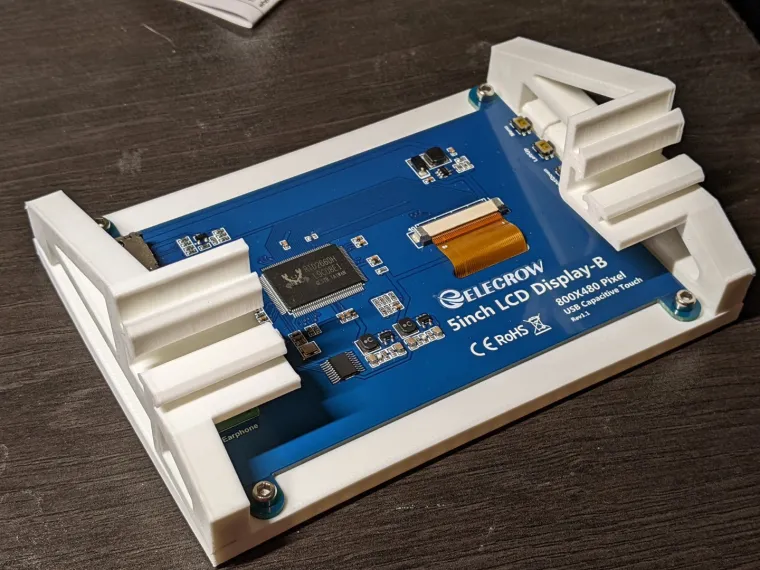

This design mounts an Elecrow 5 inch LCD Display-B to a 2020 profile extrusion.

ELECROW 5 inch Touch Screen 2020 Extrusion Mount

  • thumbnail-img
  • thumbnail-img
  • thumbnail-img
  • thumbnail-img
  • thumbnail-img
  • thumbnail-img
  • thumbnail-img
  • thumbnail-img
  • thumbnail-img


Tools, APP Software Used etc.

  • Autodesk Fusion 360

Story

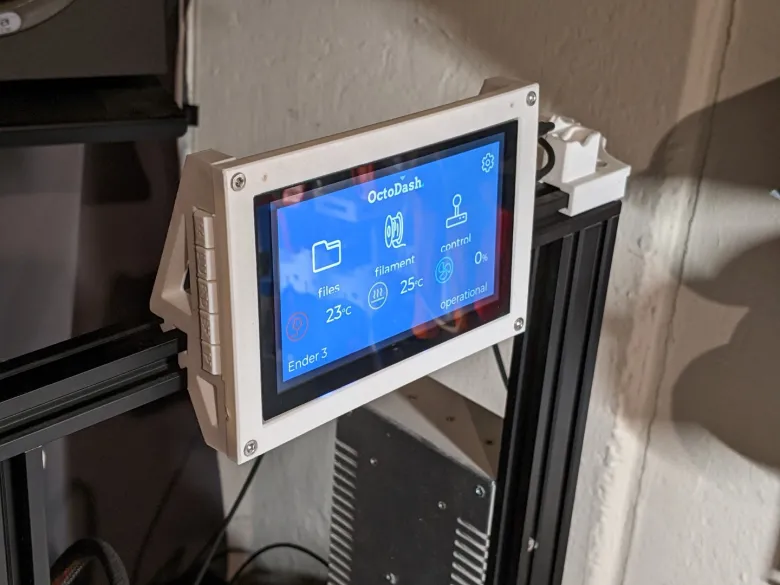

This design mounts an Elecrow 5 inch LCD Display-B to a 2020 profile extrusion. I created this for my Ender 3, but it should work with any printer that uses the same size extrusions.

In addition to the printed parts you will need the following parts:

Elecrow 5 inch LCD Display-B https://www.amazon.com/dp/B07FDYXPT7

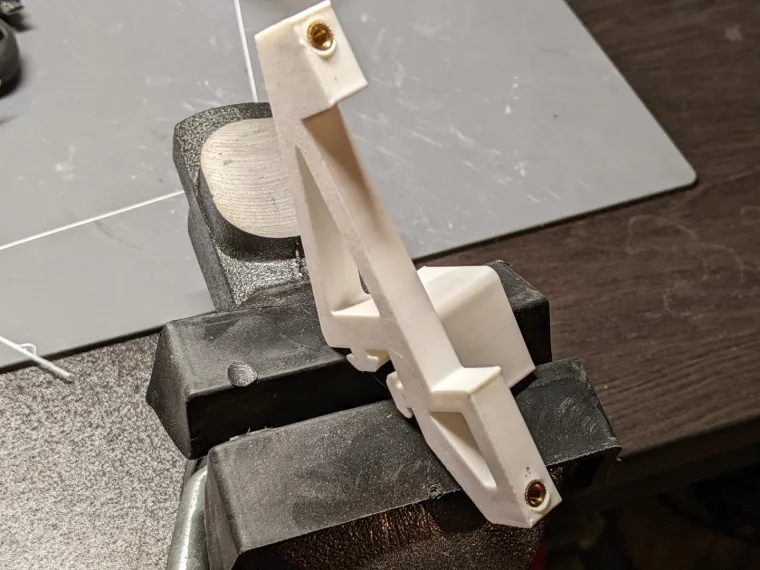

4 x M3 4mm Threaded Inserts

4 x M3 8mm Threaded Inserts

4 x M3 4mm Screw

4 x M3 8mm Screw

Also here are the thin and compact USB and HDMI cable I'm using:

Cable Matters 2-Pack Ultra Thin HDMI Cable 3 ft (Ultra Slim HDMI Cable) 4K Rated with Ethernet https://www.amazon.com/dp/B00T58JH98

Cable Matters 3-Pack Micro USB 2.0 Cable in Black 3 Feet https://www.amazon.com/dp/B00IG9LSGM
