ELECROW 7'' Display Mount for my Ratrig V3.1

As all of the existing mounts didnt fit for the ELECROW 7'' Display i redesigned my own in Fusion 360 for my Ratrig V3.1

ELECROW 7'' Display Mount for my Ratrig V3.1

  • thumbnail-img


Hardware Components

  • Elecrow RC070

    Elecrow
    X 1 fenxiang

Tools, APP Software Used etc.

  • Autodesk Fusion 360

Story

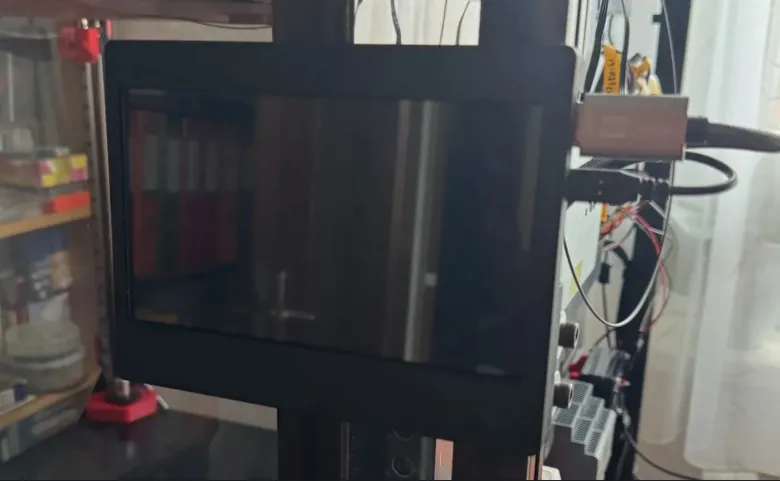

This model is a perfect fit for the elecrow 7inch display and can be mounted on any printer or stand.

CAD-Custom parts and enclosures
Topic
View All
#klipper #3d #printer #display #mount #elecrow
License: Attribution-NonCommercial-ShareAlike (CC BY-NC-SA)
