Garage Gate monitor

This project will control and monitoring your gate, reports if is traveling for closing or opening, if already reach the full close position ( just in case something gets in the away and avoid full close )

Garage Gate monitor

  • thumbnail-img
  • thumbnail-img
  • thumbnail-img


Tools, APP Software Used etc.

  • EspHome

    fenxiang

Story

This project will control and monitoring your gate.

It reports if is traveling for closing or opening.

If already reach the full close position ( just in case something gets in the away and avoid full close )

Possibility to Open or Close from HA

Powered from mains (240Vac)

Inputs :

  • 2 wires from main Motor (+ - )
  • IR sensor placed on the exact end of traveling gate
  • Optional IR sensor on the passing barrier
  • DHT22 or similar to track motor's temperature

Output

  • dry contact to connect parallel with wall swtch (open/close)

Code

  • ESPHome code

    Sliding_gate_-_home_assistant_-_ESPHome_1990837194683590e3c7f91.txt
    Download(1)
Schematic and Layout

  • Schematic

    Schematic_portao_correr-V2_2025-05-27_15113269646835911894414.pdf
    Download(5)

  • 3D view

    Download(2)

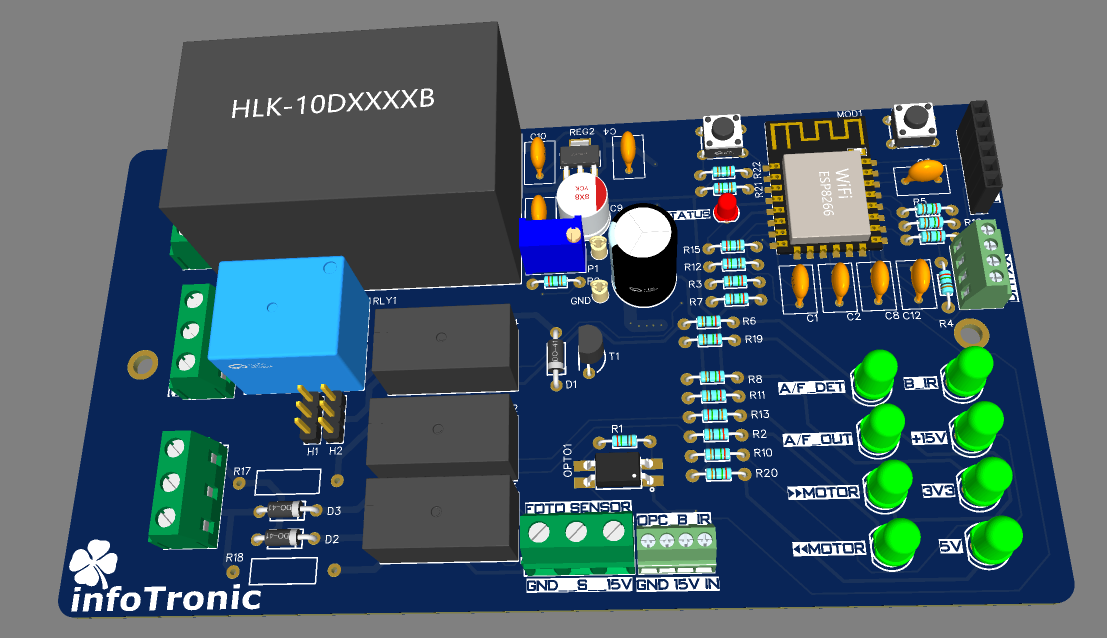

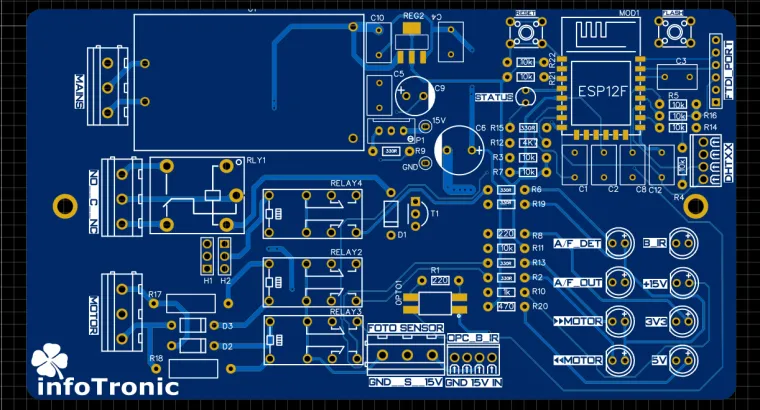

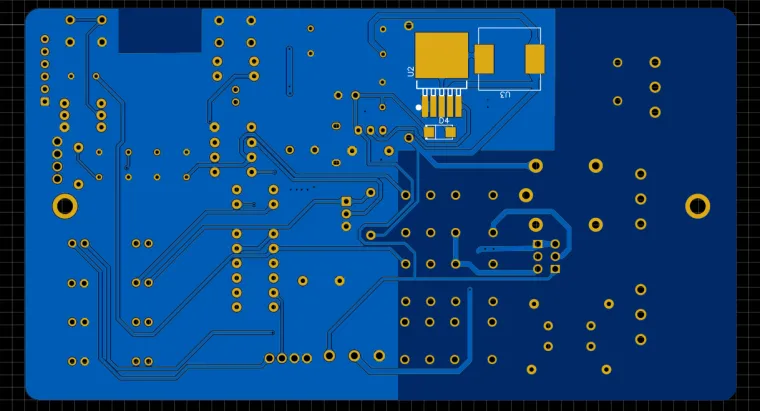

  • Board layout

    placa_354102656835915b9bb09.pdf
    Download(0)

  • BOM

    BOM_portao_correr-V2_2025-05-27_425378251683594da2ad1b.zip
    Download(1)
Topic
View All
#Home Assistant #Automation #ESPHome #PCB #DIY #control+monitor
License: Attribution-ShareAlike (CC BY-SA)
