LED matrix distance indicator

LED matrix + HC-SR04 ultrasonic sensor + ATtiny85

LED matrix distance indicator

  • thumbnail-img
  • thumbnail-img
  • thumbnail-img


Story

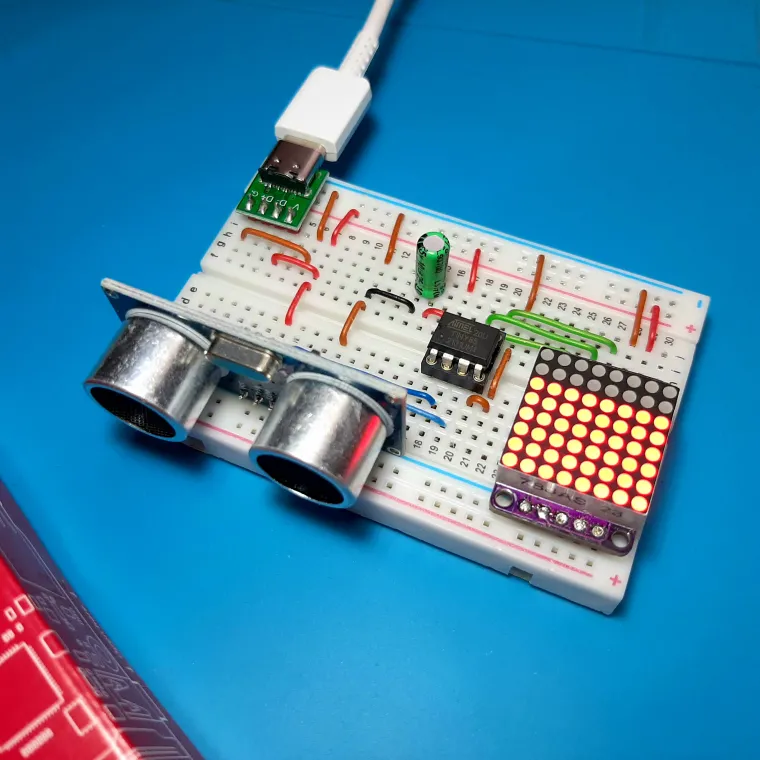

An LED matrix (8x8, 0.7", MAX7219 chip) shows the approach of objects to an HC-SR04 ultrasonic sensor when the objects are closer than 10 cm. Everything is driven by an ATtiny85 microcontroller.

Code
  • https://github.com/pleyadesit/MAX7219_LED_matrix_with_ATtiny85
