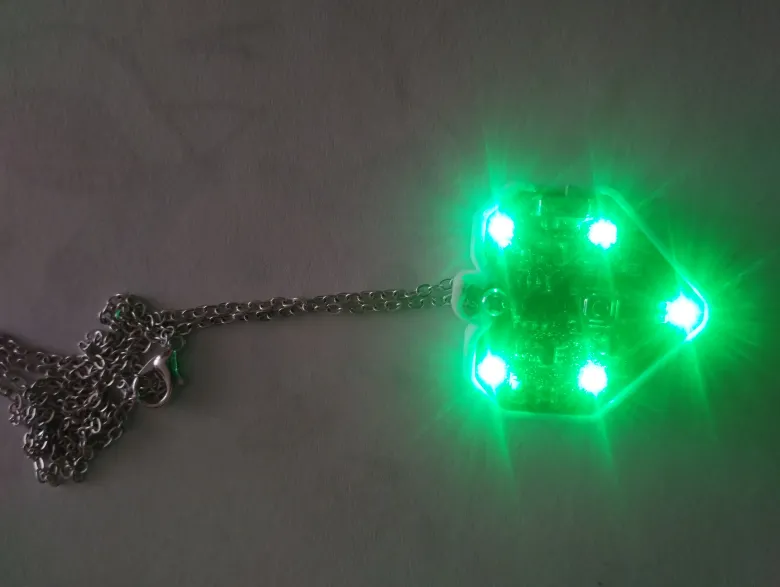

PCB HEART

PCB HEART, 5*RGB LED WS2812B-2020,CH32V003

PCB HEART

  • thumbnail-img
  • thumbnail-img
  • thumbnail-img
  • thumbnail-img


Tools, APP Software Used etc.

  • Moun River Studio Community

  • WCH-LinkE

Story

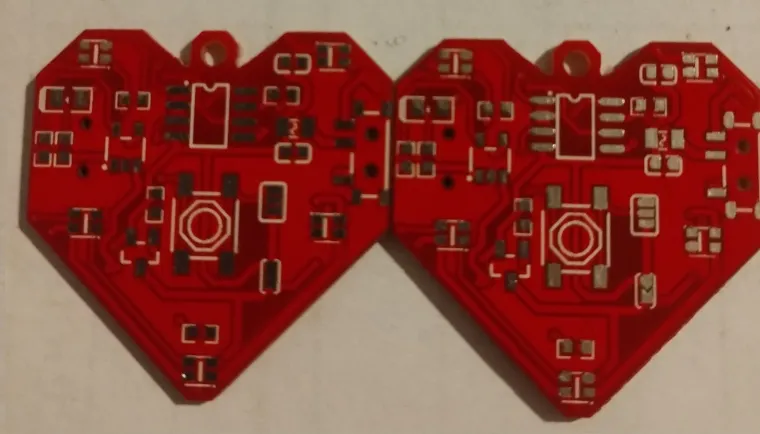

PCB HEART:

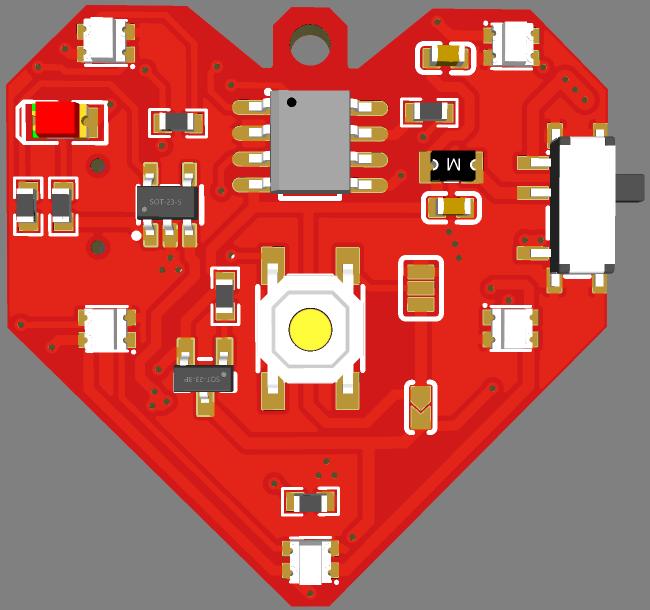

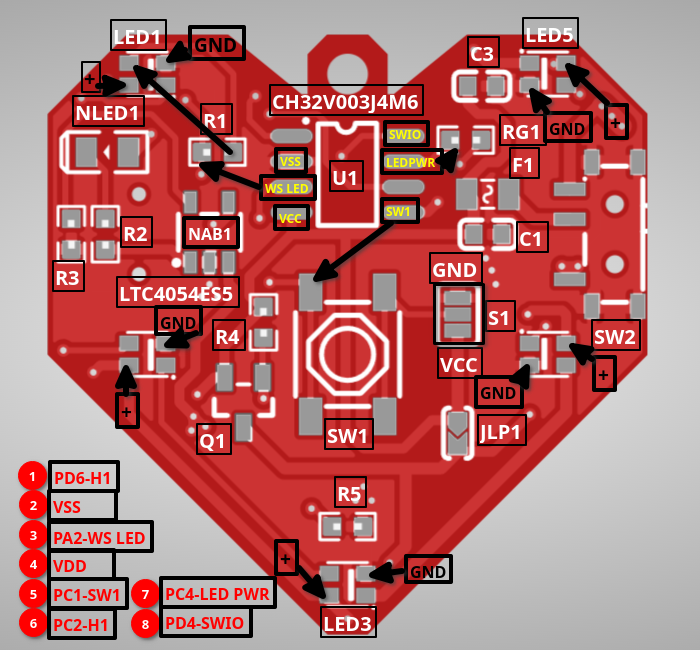

TOP:

CH32V003, 5*WS2812B-2020,LTC4054ES5-4.2#PBF

R1=0-330R

R2= Resistance size according to the color of the LED

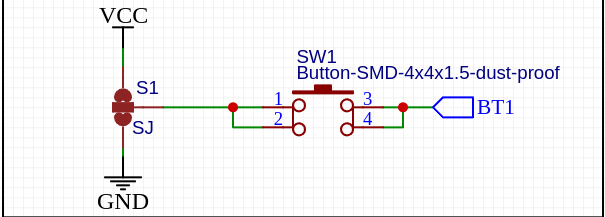

Jumper S1:

LED Power:

R5=NC

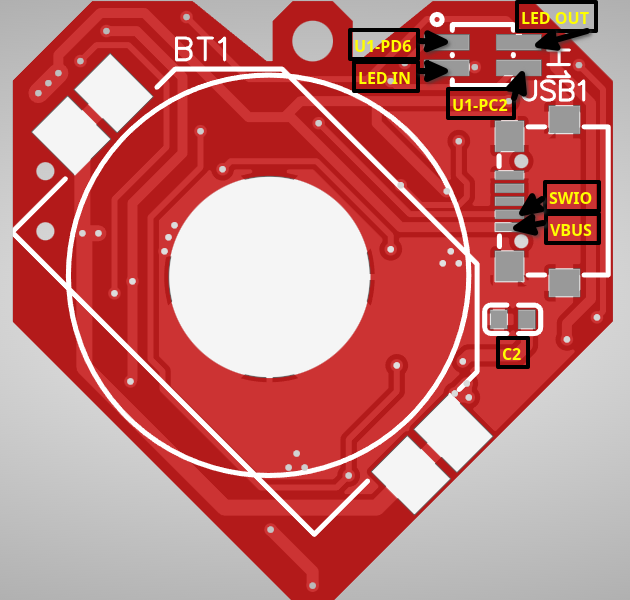

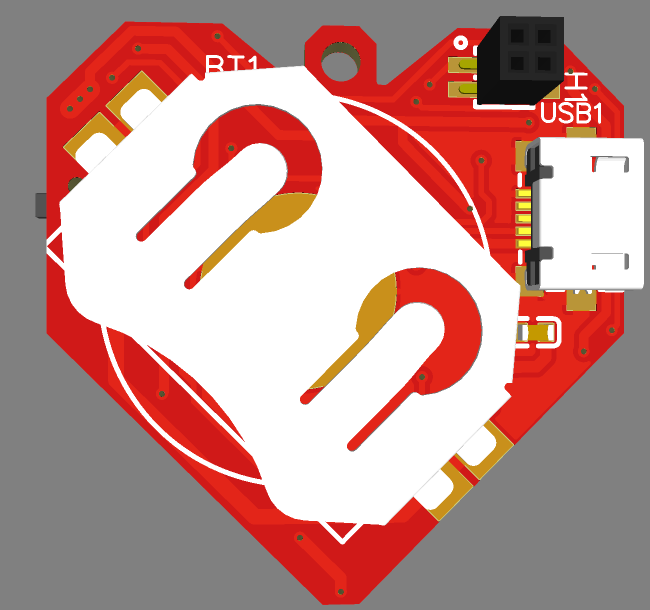

Bottom:

LIR2032 battery or other Lion /CR2032

-NO usb data -USB power,charging and programing(SWIO use D- )

FOR LTC4054ES5 :

-DON'T USE NON-RECHARGEABLE BATTERIES LIKE CR2032 !!!

- OR DO NOT CONNECT USB IF USING NON-RECHARGEABLE BATTERIES (CR2032 ...)!!!

-OR REMOVE BATTERIES BEFORE CONNECTING THE USB!!!

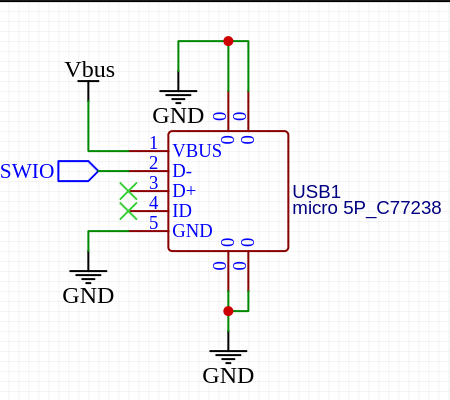

USB:

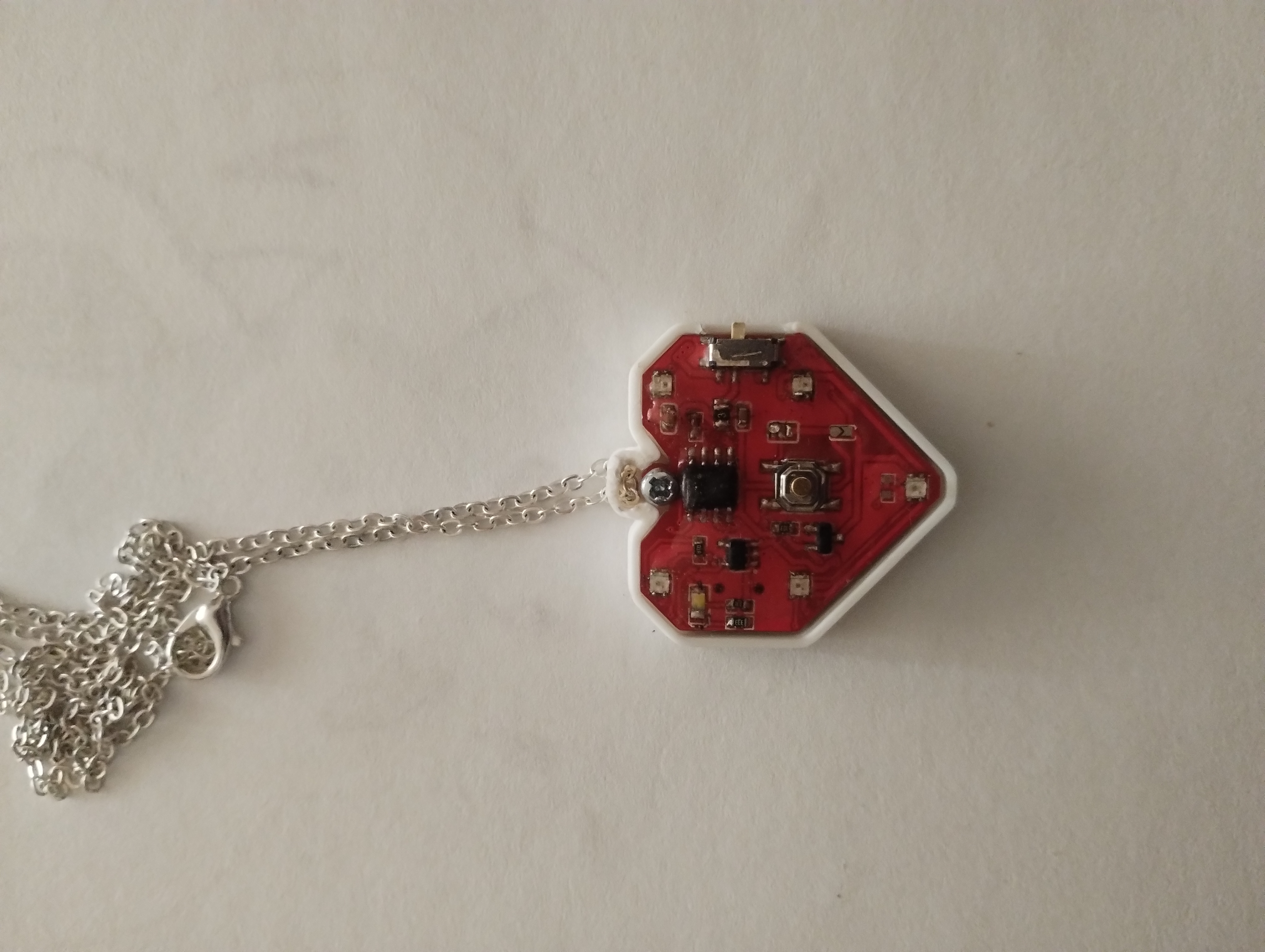

Case:

EasyEda sch.

Code
CAD-Custom parts and enclosures
Topic
View All
License: Attribution-ShareAlike (CC BY-SA)
