AnthC Industrial IoT Controller: ESP32, RS485, 4-20mA, 7-28V, Raspberry Pi Form Factor

AnthC — Open-Source ESP32-S3 Industrial IoT Controller

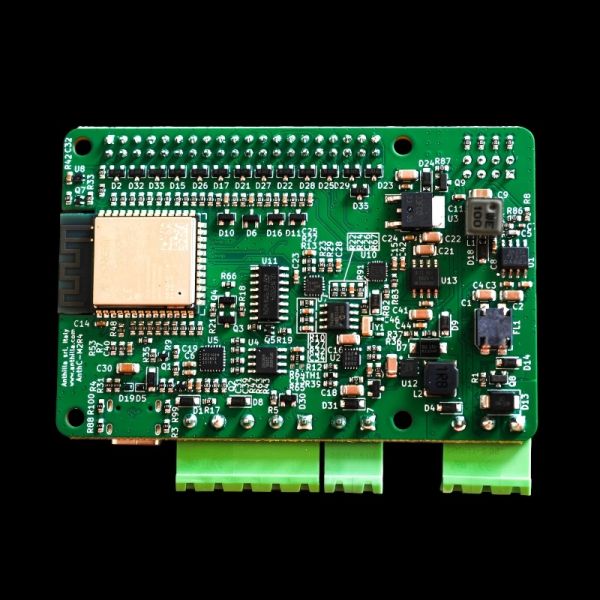

AnthC (Anthilla Controller) is an ESP32-S3 controller for industrial and field IoT: it reads 4–20 mA sensors, talks RS485, switches loads, and keeps running on battery when the supply drops. Raspberry Pi footprint, so it drops into existing enclosures and DIN-rail mounts.

Open-source hardware, OSHWA certified (IT000013, IT000014). Schematics, Gerbers, BOM and STEP model are public on GitHub.

Key specs

Not included

• 1S LiPo battery (min. 1000 mAh, with built-in protection circuit)
• CR2032 coin cell

Getting started

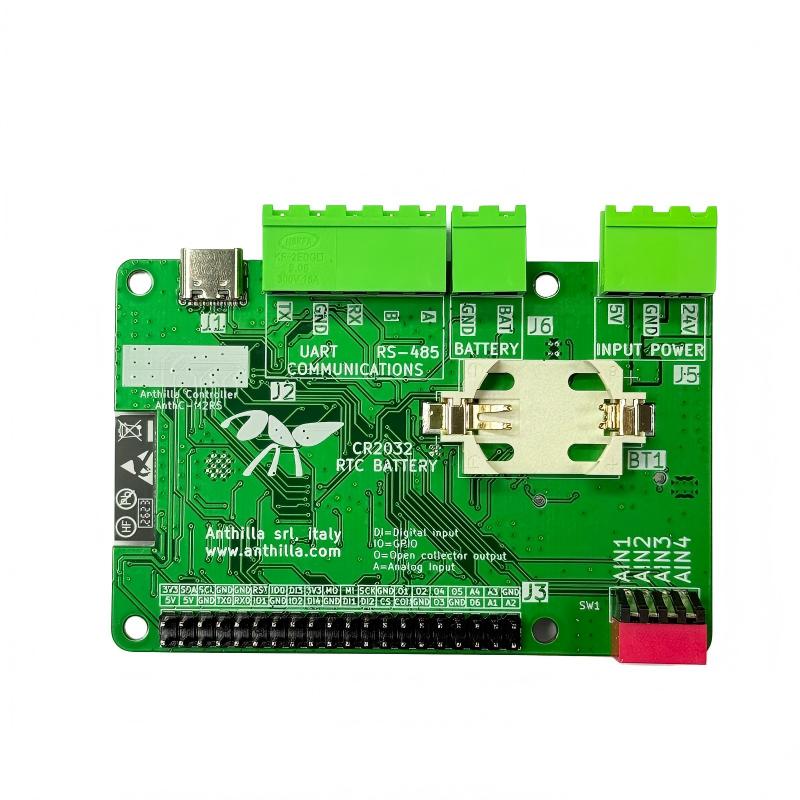

1. Power the board from USB-C or 7–28 V on the J5 terminal.
2. Install ESP-IDF or the Arduino ESP32 core.
3. Select the ESP32-S3 Dev Module board and flash an example.

Documentation

• User manual: connectors and mating plugs, battery, charging, RTC
• M2-R5 design files: schematic PDF, Gerbers, BOM, pick-and-place, STEP
• Hackaday project

Design articles (All About Circuits)

• Part 1: Design
• Part 2: Open-Source Certification
• Part 3: Manufacturing and Testing
• Part 4: Regulatory Compliance

Compliance

• Hardware revision M2-R5. EMC / CE not yet tested: this is a development board, and the end-product manufacturer is responsible for its own conformity assessment.
• LiPo cells must not be charged below 0 °C or above 45 °C, regardless of the board's operating range.
• License: CERN-OHL-W-2.0

Support

• Hardware questions and bugs: GitHub Issues
• Orders and shipping: Elecrow
• Custom variants and integration: projects@anthilla.com
