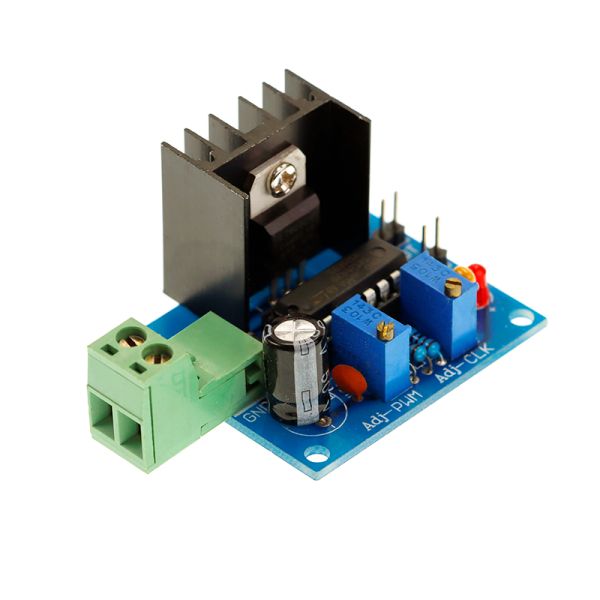

PWM Frequency And Duty Adjustable Module- SG3525

Details

This PWM Frequency and Duty Adjustable Module is based on the PWM controller SG3525, it offer improved performance and lower external parts count when implemented for controlling all types of switching power supplier. This module can be used to drive IGBT directly thus to control the motors.

PWM Frequency And Duty Adjustable Module- SG3525

Specification

Size: 55x 42x30mm
Power supply: 8~12 VDC
Max Output Current：200mA
Output Voltage: 5V
Frequency Range:100~10 kHz
Duty Range: 0%~100%

Download

SG3525 Datasheet
