2.5M24-P1-EI

Fuente de alimentación de alta tensión de 0-2500V.

2.5M24-P1-EI

  • thumbnail-img


Hardware Components

  • 2.5M24-P1-EI

    ULTRAVOLT
    X 1 fenxiang

Tools, APP Software Used etc.

  • Autodesk invetor

Story

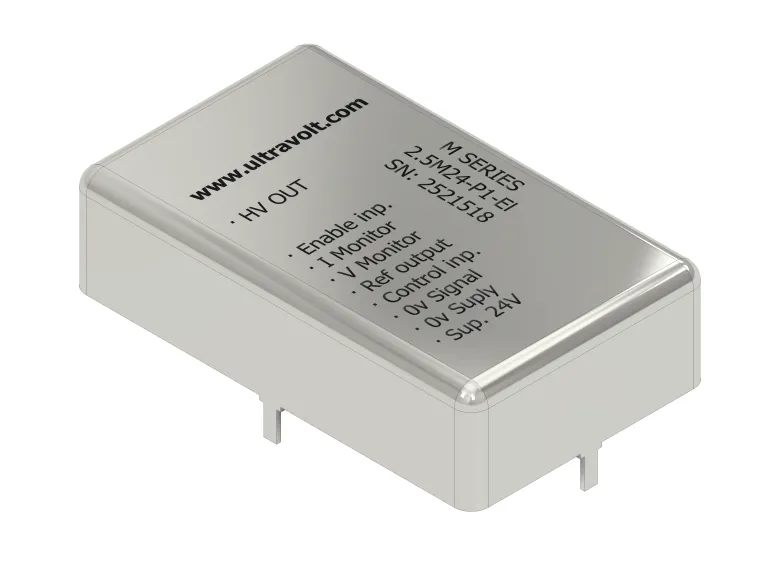

Soy un entusiasta del modelado 3D y he recreado esta fuente de alimentación de corriente continua de alta tensión de 1W para PCB. Cuenta con una salida variable entre 0V y 2500V de corriente continua, controlado a través de una entrada analógica de 0V a 5V. Además cuentan con dos salidas de monitorización de 0V a 5V, correspondientes a la medida de tensión en el rango de voltios e intensidad en el rango de micro amperios que suministra la fuente. Esta fuente de alimentación variable se alimenta a 24V de corriente continua y tiene protección contra cortocircuitos. Ideal para proyectos de poco tamaño gracias al diseño compacto de la fuente.

Esta fuente es ideal para fuentes de alimentación de polarización, mandriles electrostáticos, fluorescencia de rayos X portátil (XRF), fotodiodos de avalancha (APD), tubos fotomultiplicadores (PMT), detector de silicio (SiD), detector de panel plano de rayos X (FPD), detector de cámara de ionización, entre otras aplicaciones.

CAD-Custom parts and enclosures

  • 2.5M24-P1-EI

    Ultravolt_2.5M24-P1-EI_15439568768e812454d60a.stp
    Download(1)
Topic
View All
License: Attribution-ShareAlike (CC BY-SA)

2.5M24-P1-EI

Fuente de alimentación de alta tensión de 0-2500V.

179

9
0
0
