Christmas star

Christmas star built on 18 LED diodes.

Christmas star

  • thumbnail-img
  • thumbnail-img
  • thumbnail-img
  • thumbnail-img


Story

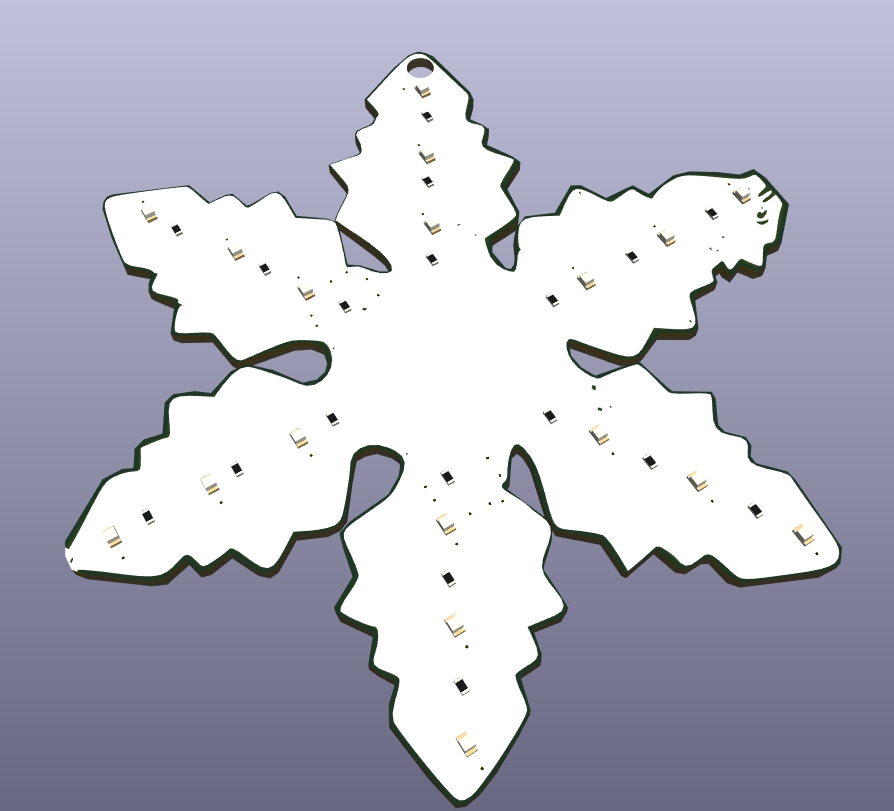

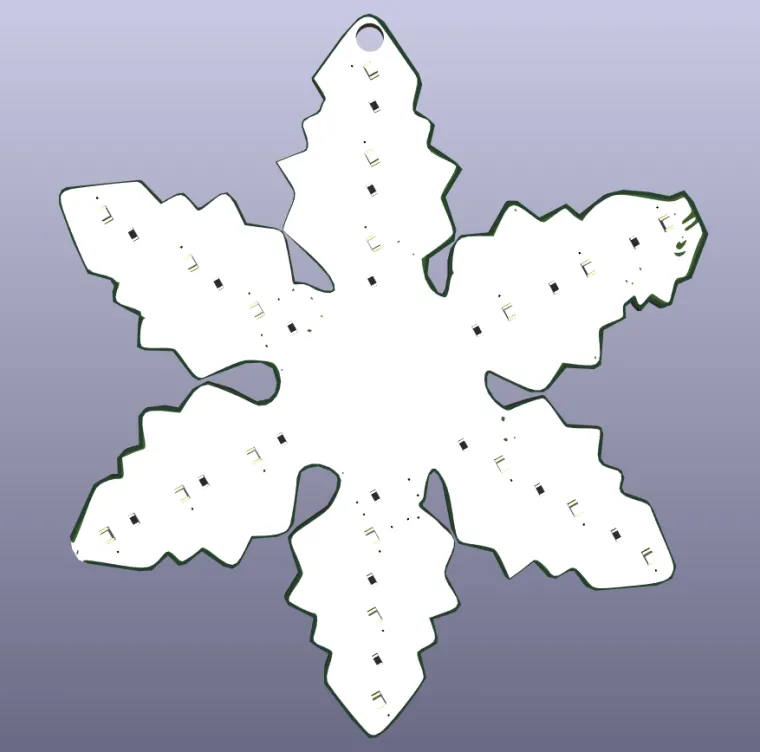

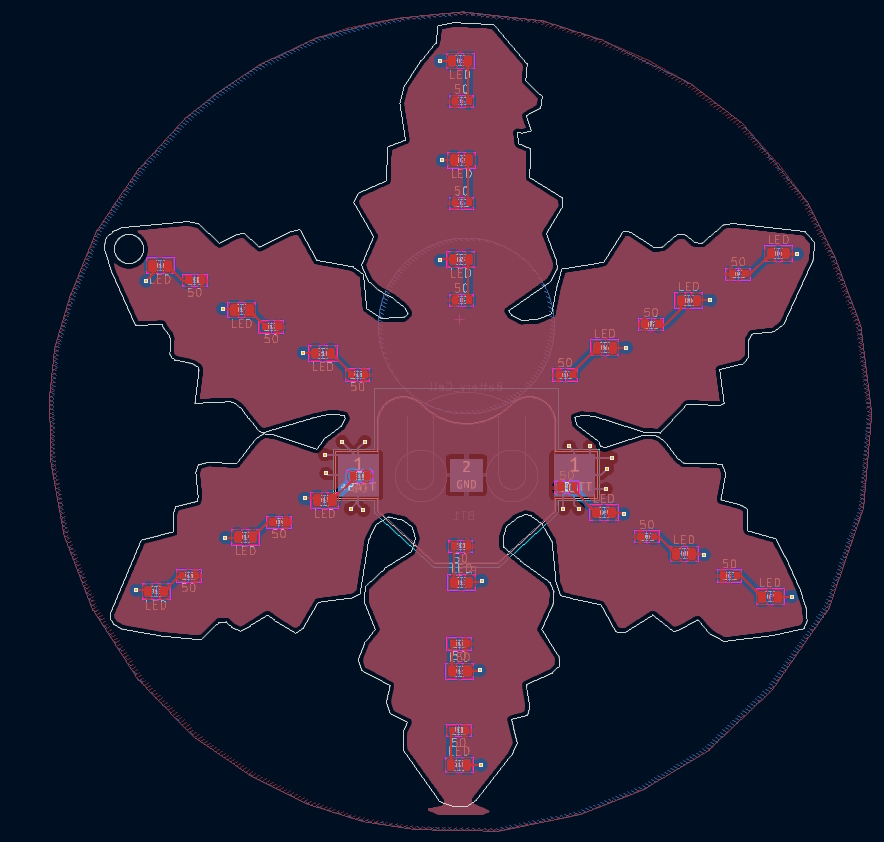

Christmas star to hang on the Christmas tree. Two-layer PCB containing 18 LEDs powered by a 3V CR2032 battery

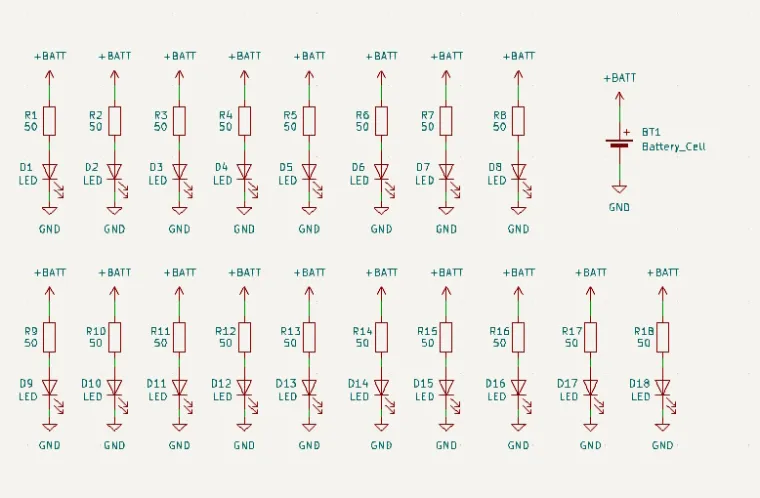

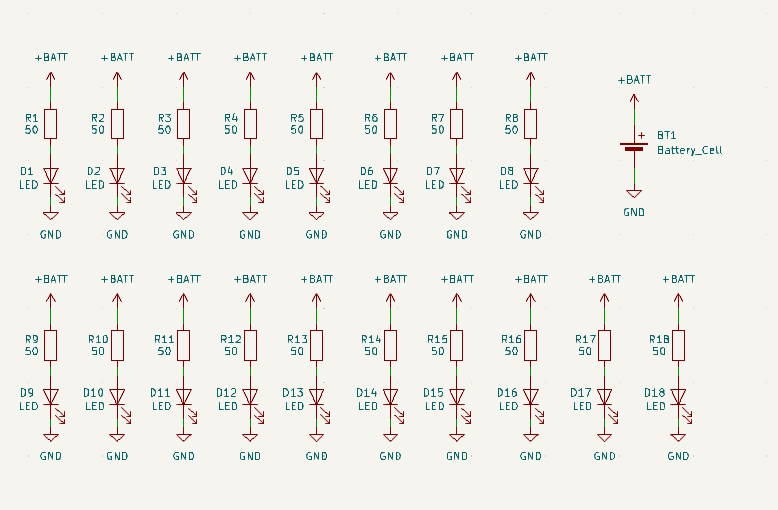

Schematic:

Parts List:
- LEDs (Red)                    x 18
- Resistors 50                  x 18
- CR2032 Battery Cell     x 1

Topic
View All
License: Attribution-GPL License
