Story
General Overview

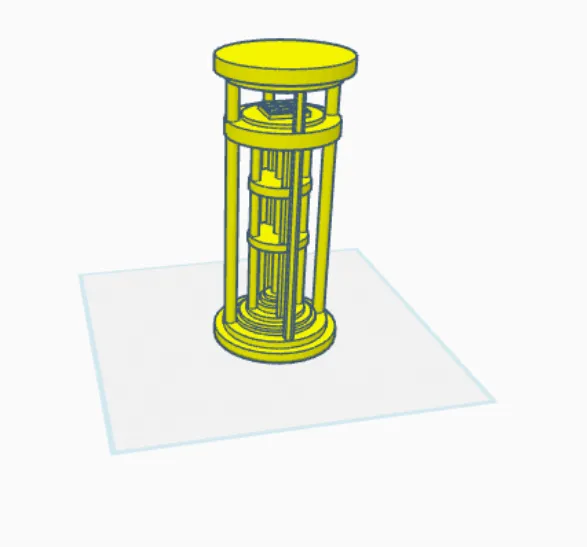

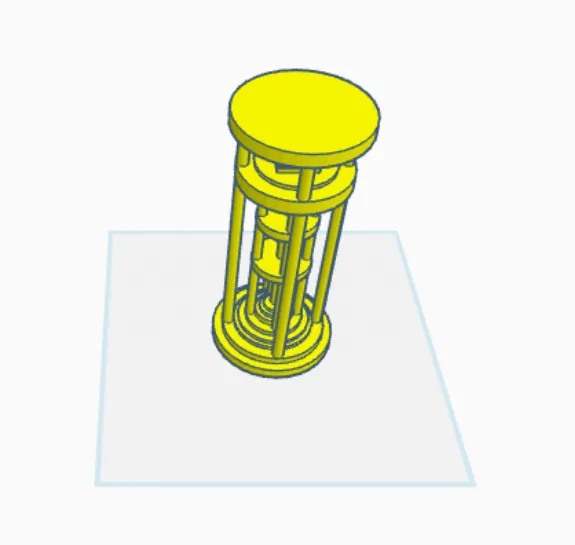

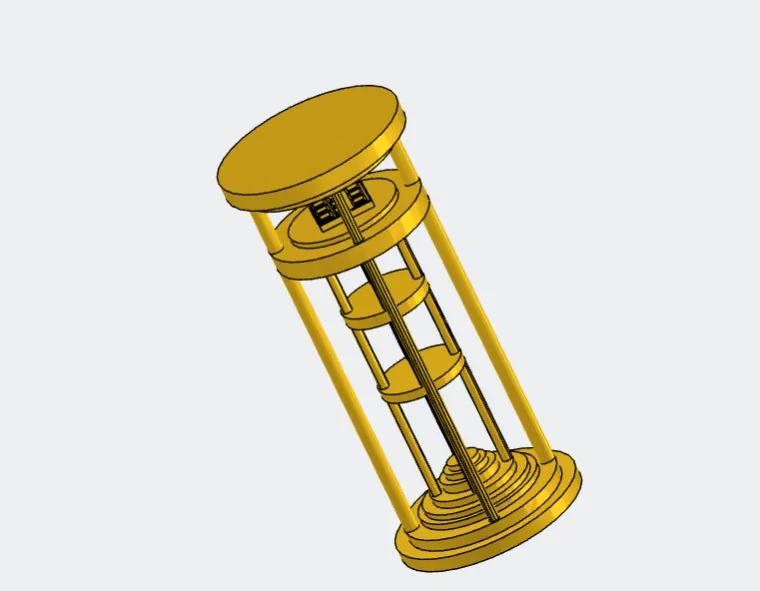

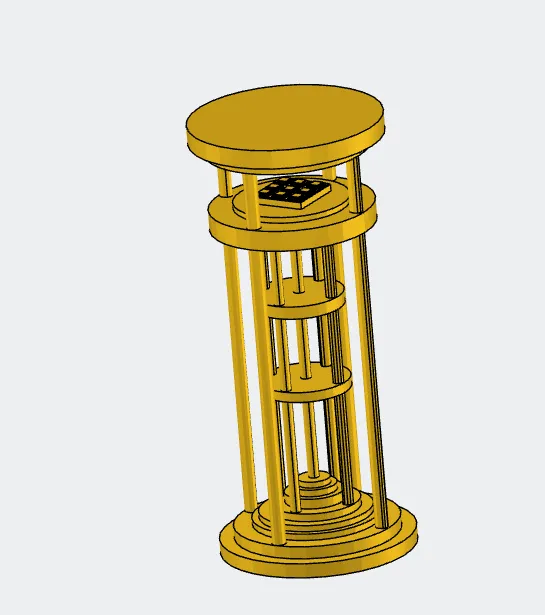

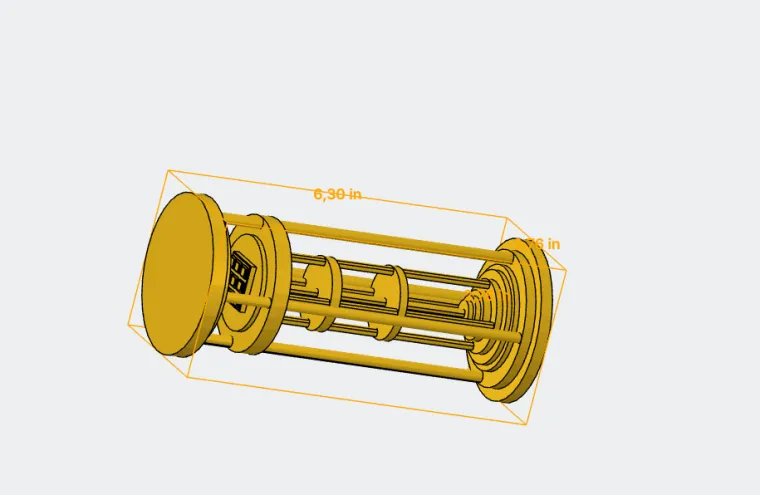

The image shows a 3D rendering of a conceptual model of a quantum cryostat at scale (inspired by advanced cryogenic cooling systems, such as dilution refrigerators used for quantum computers). The structure features a yellow-gold coloring and is positioned on a light blue planar base.
Main Structural Elements
-

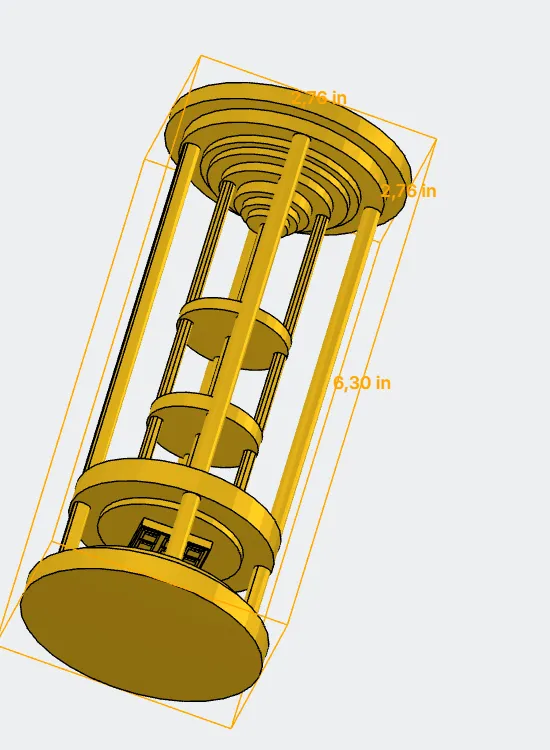

External vertical pillars: The architecture is supported by vertical columns connecting the base section to the top platform, providing stability and defining the vertical footprint of the system.
-

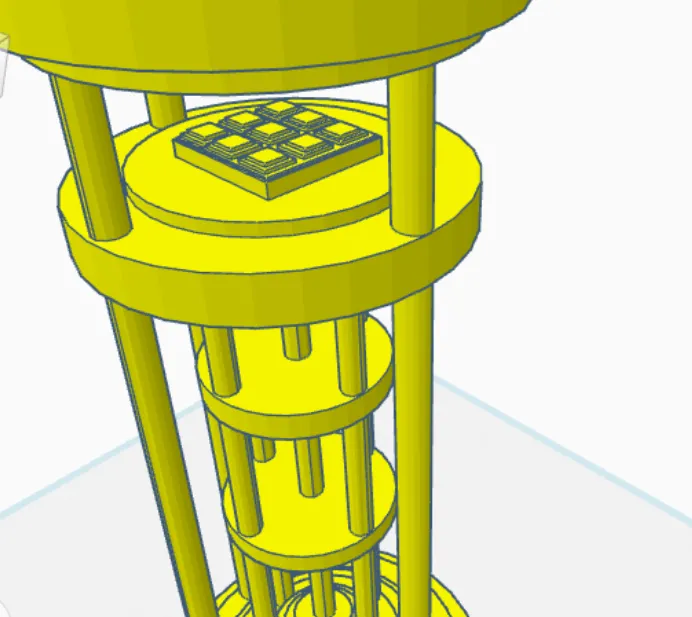

Multiple cryogenic stages: At the center of the structure, several levels or concentric disks are visible at various heights. These represent the different progressive cooling stages necessary to thermally isolate sensitive quantum components.
-
Top flange or platform: The model is topped by a flat circular disk, simulating the upper interface plane for the experimental apparatus or control electronics.
