Laser Security System

To design and build a basic laser-based security system that detects unauthorized entry using a laser beam and a photoresistor (LDR), triggering an alarm when the beam is interrupted

Laser Security System

  • thumbnail-img
  • thumbnail-img
  • thumbnail-img


Hardware Components

  • LDR

    X 1 fenxiang
  • 12v SMD Buzzer

    X 1
  • BC547 Transistor

    X 1
  • Resistor 1k ohm

    X 1
  • 9V Power Supply

    X 1

Tools, APP Software Used etc.

  • Fritzing

Story



Objective:

To design and build a basic laser-based security system that detects unauthorized entry using a laser beam and a photoresistor (LDR), triggering an alarm when the beam is interrupted.


Materials Required:

Component Quantity
Red Laser Diode Module 1
Light Dependent Resistor (LDR) 1
Buzzer or Piezo Alarm 1
Transistor (e.g., BC547) or MOSFET 1
Resistors (e.g., 10kΩ, 1kΩ) 2–3
Breadboard or PCB 1
9V Battery or Power Supply 1
Wires and Connectors As needed
Switch (optional) 1
Mirrors (optional for beam redirection) As needed

Working Principle:

  1. A laser diode emits a narrow beam of red light aligned directly onto the LDR (Light Dependent Resistor).

  2. The LDR’s resistance is low when illuminated by the laser, keeping the system in a "normal" state.

  3. If someone or something interrupts the beam (i.e., passes through it), the light on the LDR is blocked, causing its resistance to increase.

  4. This change is detected by a voltage divider circuit that triggers a transistor, which in turn activates a buzzer or alarm.

  5. The system resets once the laser beam is restored.


Circuit Description:

  • The LDR and a resistor form a voltage divider. This output goes to the base of a transistor.

  • Under normal conditions, the voltage at the base is insufficient to turn the transistor on.

  • When the laser is interrupted, the voltage at the base increases, turning the transistor ON, and the buzzer is activated.

Optional Enhancements:

  • Use a 555 Timer IC for better control.

  • Add a relay to control larger alarms or lights.

  • Use mirrors to direct the laser beam across wider areas (like doorways or windows).

  • Include a microcontroller (like Arduino) to log events or send alerts.


Steps to Build:

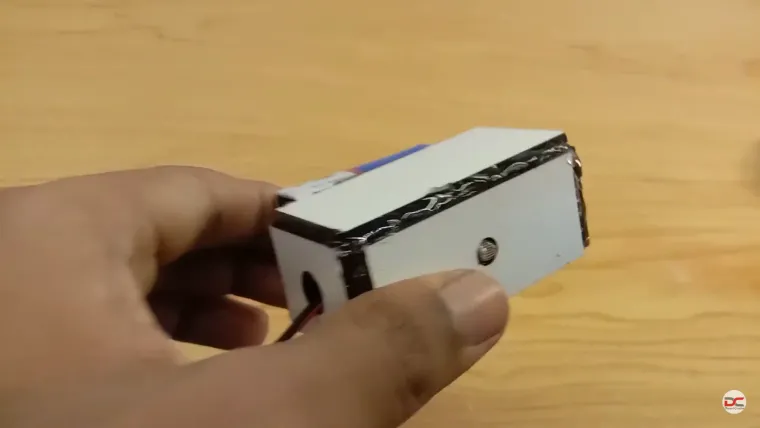

  1. Connect the laser module and aim it directly at the LDR placed on the opposite end.

  2. Build the voltage divider circuit using the LDR and resistor.

  3. Connect the output to the base of the transistor.

  4. Connect the buzzer in the collector circuit of the transistor.

  5. Power the system using a 9V battery.

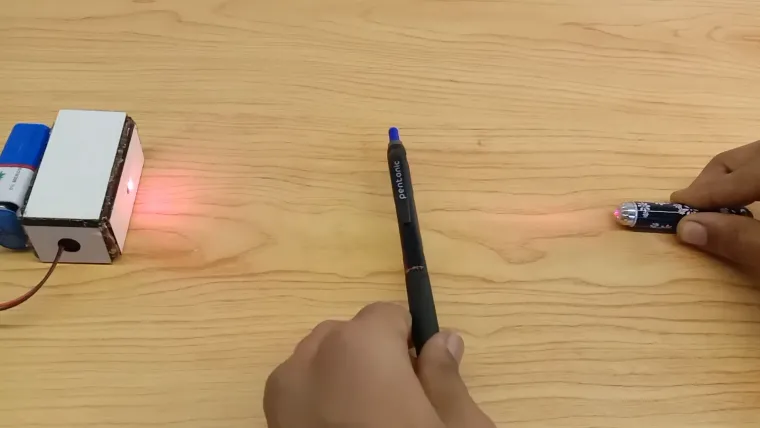

  6. Test the setup by interrupting the laser beam—the buzzer should sound.


Applications:

  • Home or office security

  • DIY educational projects

  • Science fair or school electronics demos

  • Entry detection in restricted areas


Precautions:



  • Avoid direct eye contact with laser light.

  • Ensure stable alignment between the laser and LDR.

  • Use a proper resistor to protect the laser module from overcurrent.

Schematic and Layout
  • Diagram

    https://github.com/DharaniCreations/-Laser-Security-System/blob/main/Untitled%20Sketch_bb.png
    View
