Low profile Losmandy Dovetail for Meade 8 inch SCT

Low profile Losmandy Dovetail for Meade 8 inch SCT

Low profile Losmandy Dovetail for Meade 8 inch SCT

  • thumbnail-img
  • thumbnail-img
  • thumbnail-img


Tools, APP Software Used etc.

  • Autodesk Fusion 360

Story

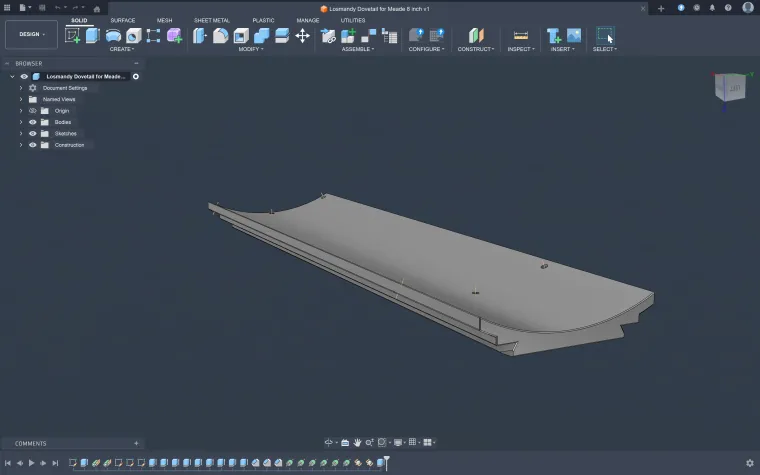

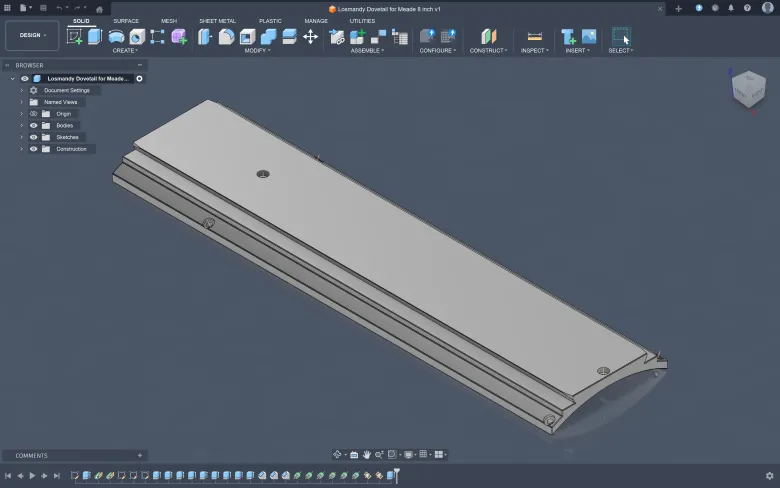

Low profile Losmandy Dovetail for Meade 8 inch SCT.
Preferably CNC machined from aluminum.

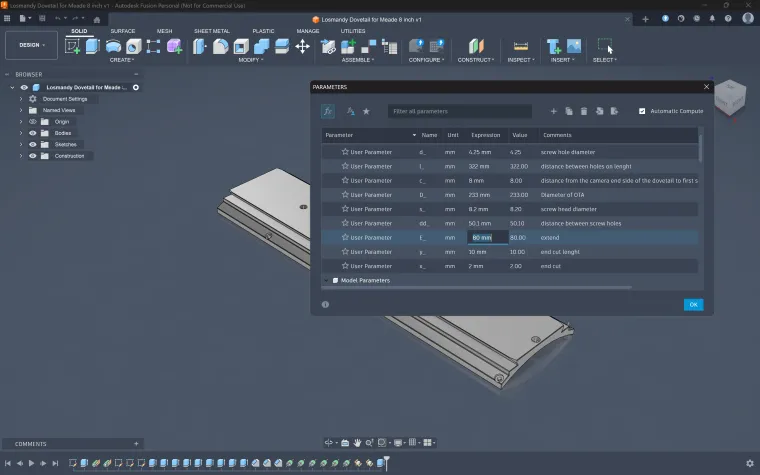

You can modify (shorten) the length of the dovetail by changing the value of the parameter E_ in Autodesk Fusion (by opening the .f3d file in Fusion).
E_=80mm is a little bit long but it is handy for balancing the scope if you have a heavy accessory at the camera end of the scope.

Topic
View All
#Losmandy #Dovetail #Meade 8inch SCT
License: Attribution-ShareAlike (CC BY-SA)
