Sheetmetal Enclosure

Precision meets simplicity- a fully engineered sheet metal enclosure designed for performance, manufacturability, and modern aesthetics.

Sheetmetal Enclosure

  • thumbnail-img
  • thumbnail-img
  • thumbnail-img
  • thumbnail-img
  • thumbnail-img


Story

Project Introduction

This project focuses on the design and development of a precision-engineered sheet metal enclosure intended for housing electronic or mechanical components. The goal was to create a structure that ensures ease of manufacturability, durability, and aesthetic appeal, suitable for industrial or commercial equipment use.

Features & Design

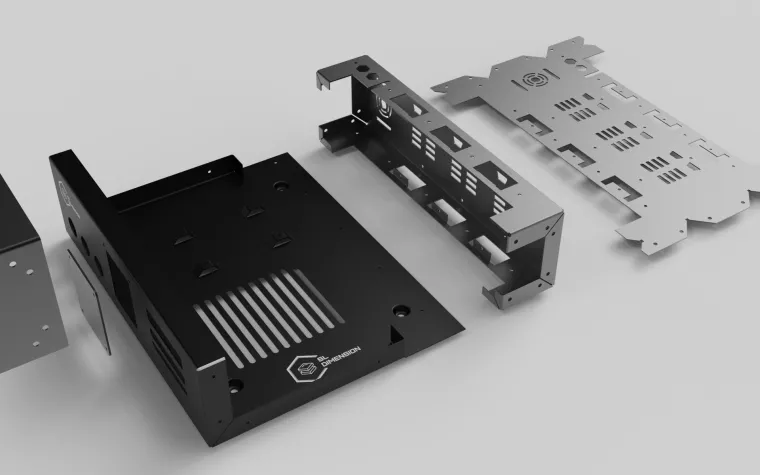

  • Optimized for Manufacturing: Designed using SolidWorks Sheet Metal module, following standard bending, cutout, and welding constraints to ensure production feasibility.

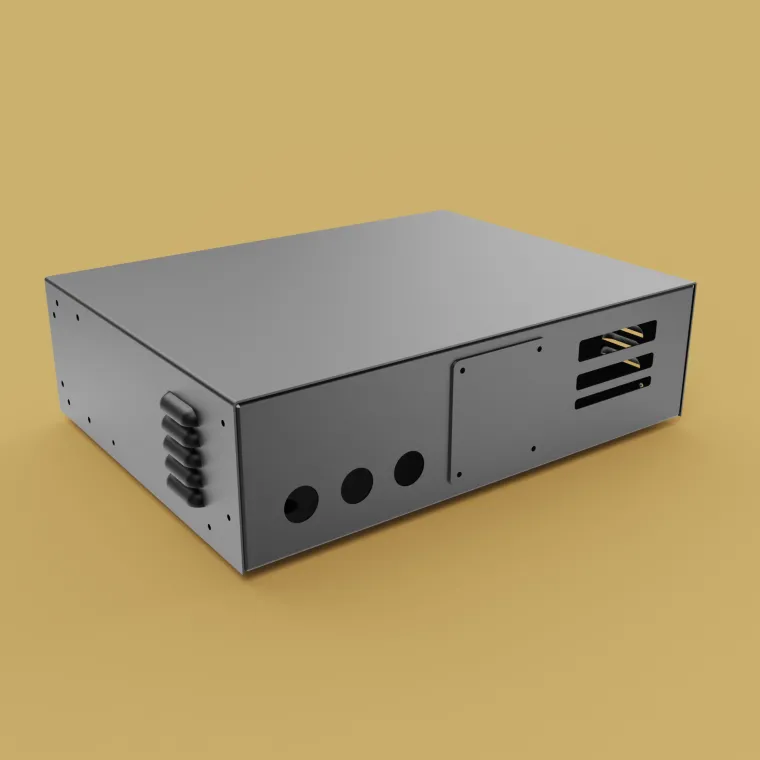

  • Functional Openings: Includes precisely located vent slots, mounting holes, and cable entries for efficient component integration.

  • Assembly-Friendly: Side panels and front plates are designed for easy maintenance and modular assembly.

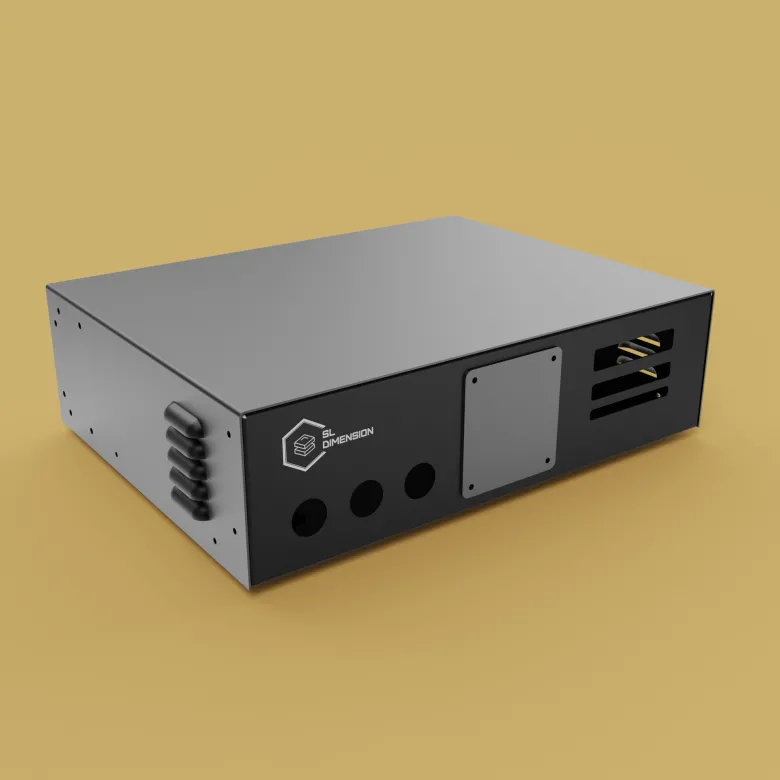

  • Industrial Aesthetics: A minimalist, clean design finished with matte coating for a professional, modern look.

  • SL Dimension Branding: Custom branding engraved or etched for a unique identity.

The project was modeled and detailed in SolidWorks, utilizing:

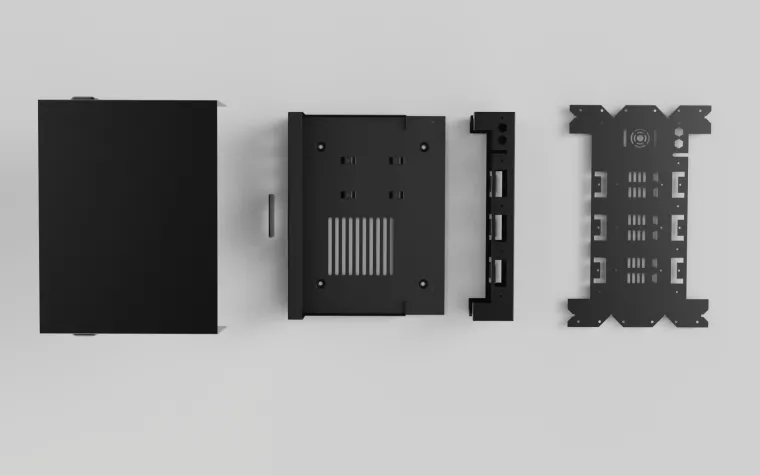

  • Sheet Metal Design Tools for bend tables and flat pattern generation.

  • DXF export for laser cutting and CNC bending.

  • Rendering completed in KeyShot to simulate real-world lighting and materials.
