Washing Machine

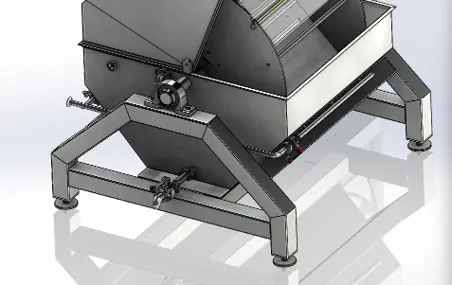

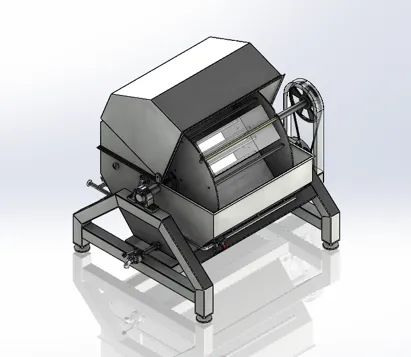

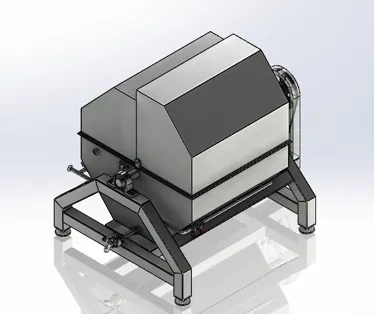

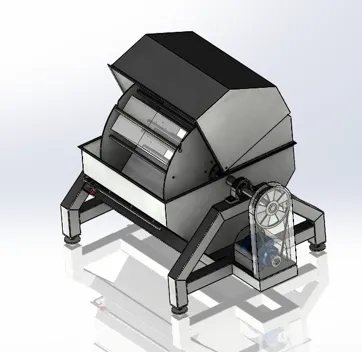

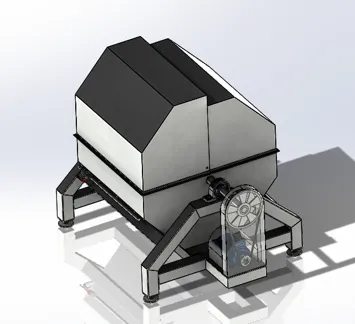

It is a machine used for cleaning by using a motor as a driver and spraying water to clean while the motor is rotating. There is a cover while the machine is working. The water used for cleaning can be filtered and reused.

Washing Machine

  • thumbnail-img
  • thumbnail-img
  • thumbnail-img
  • thumbnail-img
  • thumbnail-img


Story

It is a machine used for cleaning by using a motor as a driver and spraying water to clean while the motor is rotating. There is a cover while the machine is working. The water used for cleaning can be filtered and reused

Operation Procedure

1. Open the cover to place the workpiece to be washed.

2. Once the workpiece is placed in the machine, close the cover.

3. Press the start switch.

4. The motor start, causing the workkpiece to rotate.

5.The water pump starts.

6.While the machine is operating, water is sprayed frome the nozzles to clean it.

7. After the machine is finished operating, an indicator light will appear.

8. For safety, press the emergency button if the machine malfunctions.

Schematic and Layout
CAD-Custom parts and enclosures
  • Machine

    Washing_Machine1_18459879886909d1ee70764.STEP
    Download(1)
