XL4015 5V/5A USB Power Supply Module

A compact and powerful USB power supply based on the XL4015 buck converter IC. Designed to deliver stable 5V up to 5A — perfect for powering Raspberry Pi, ESP32, Arduino, and USB gadgets.

XL4015 5V/5A USB Power Supply Module

  • thumbnail-img


Story

A compact and powerful USB power supply based on the XL4015 buck converter IC.
Designed to deliver stable 5V up to 5A — perfect for powering Raspberry Pi, ESP32, Arduino, and USB gadgets.


✨ Features

  • 🔌 Input Voltage: 8V – 36V DC
  • Output Voltage: Fixed 5V
  • 🔋 Maximum Current: 5A continuous
  • 🔒 Reverse Polarity Protection (SS1045 Schottky)
  • 📊 Stable Output with 330 µF electrolytic + ceramic capacitors
  • 🟢 Power LED Indicator
  • 🖥️ USB-A Output Port (5V)
  • 🐧 Tested with Raspberry Pi 4 – no undervoltage warnings

🧰 Bill of Materials (BOM)

No. Quantity Component Value / Part No. Package Notes
1 1 IC XL4015E1 TO-263-5 Buck regulator
2 1 Inductor 47 µH / 6A SMMS1360 Power inductor
3 1 Diode SS1045 SMC Schottky rectifier
4 1 Capacitor 220 µF / 50V Electrolytic Input filter
5 1 Capacitor 330 µF / 25V Electrolytic Output filter
6 3 Capacitors 1 µF 1206 SMD Ceramic
7 1 Capacitor 33 nF 1206 SMD Loop compensation
8 2 Resistors 3.3k, 10k 1206 SMD Voltage feedback
9 1 Resistor 330 Ω 1206 SMD LED current limit
10 1 LED Green SMD 1205 Power indicator
11 1 USB Connector USB-A Female Through-hole Output port
12 1 DC Jack 5.5mm barrel Through-hole Input connector

🔎 Circuit Diagram

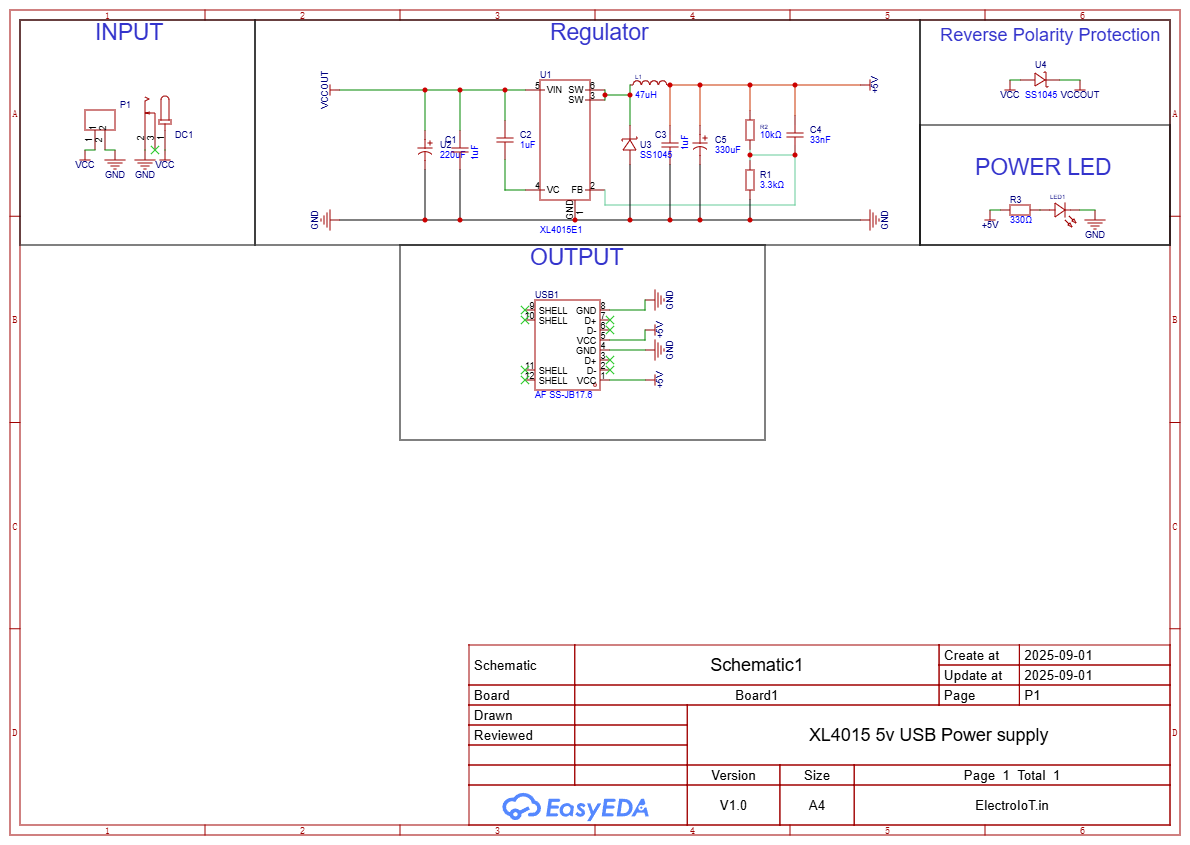

📷 Schematic





🖼️ PCB Preview

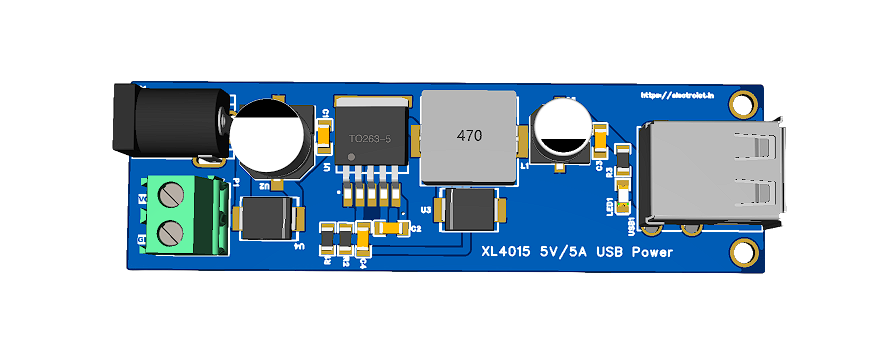

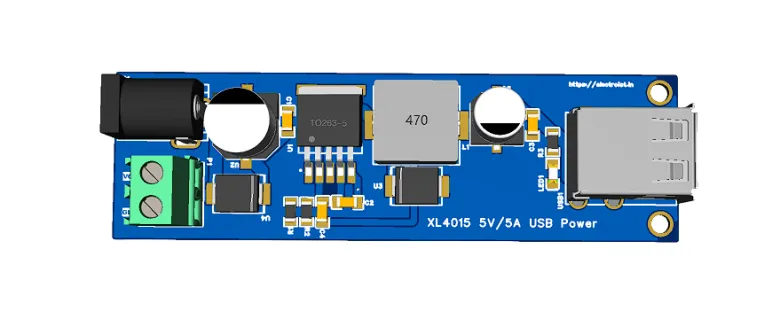

3D render of the finished board:

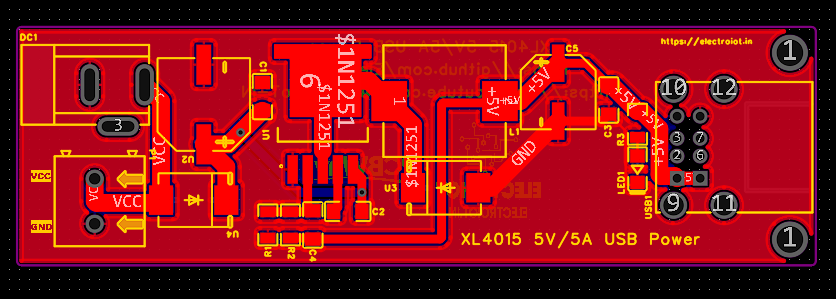

PCB layout (top copper):







🧪 Use Cases

  • 🐧 Power Raspberry Pi 3/4 (stable 5V/5A supply)
  • ⚡ Supply ESP32, Arduino, STM32 projects
  • 💡 Power 5V LED strips
  • 📱 Charge USB-powered gadgets (phones, tablets)
  • 📡 Use with routers, SBCs, or dev kits

🚀 Future Improvements

  • 🔋 Add USB D+/D– resistor divider for fast charging (up to 2A)
  • 🔒 Replace Schottky diode with P-MOSFET reverse polarity protection for higher efficiency
  • 🔥 Add a polyfuse on USB output for overcurrent protection
  • 📏 Optional: make a multi-output version (5V/9V/12V) with multiple XL4015s

📝 License

This project is open-source hardware 🛠️.
You’re free to use, modify, and improve it — just give credit when sharing ❤️.



👨‍💻 Author

Designed by ElectroIoT.in





Code
  • https://github.com/ElectroIoT/DIY-XL4015-5V-5A-USB-Power-Supply
    View
Schematic and Layout
  • https://github.com/ElectroIoT/DIY-XL4015-5V-5A-USB-Power-Supply
    View
CAD-Custom parts and enclosures
