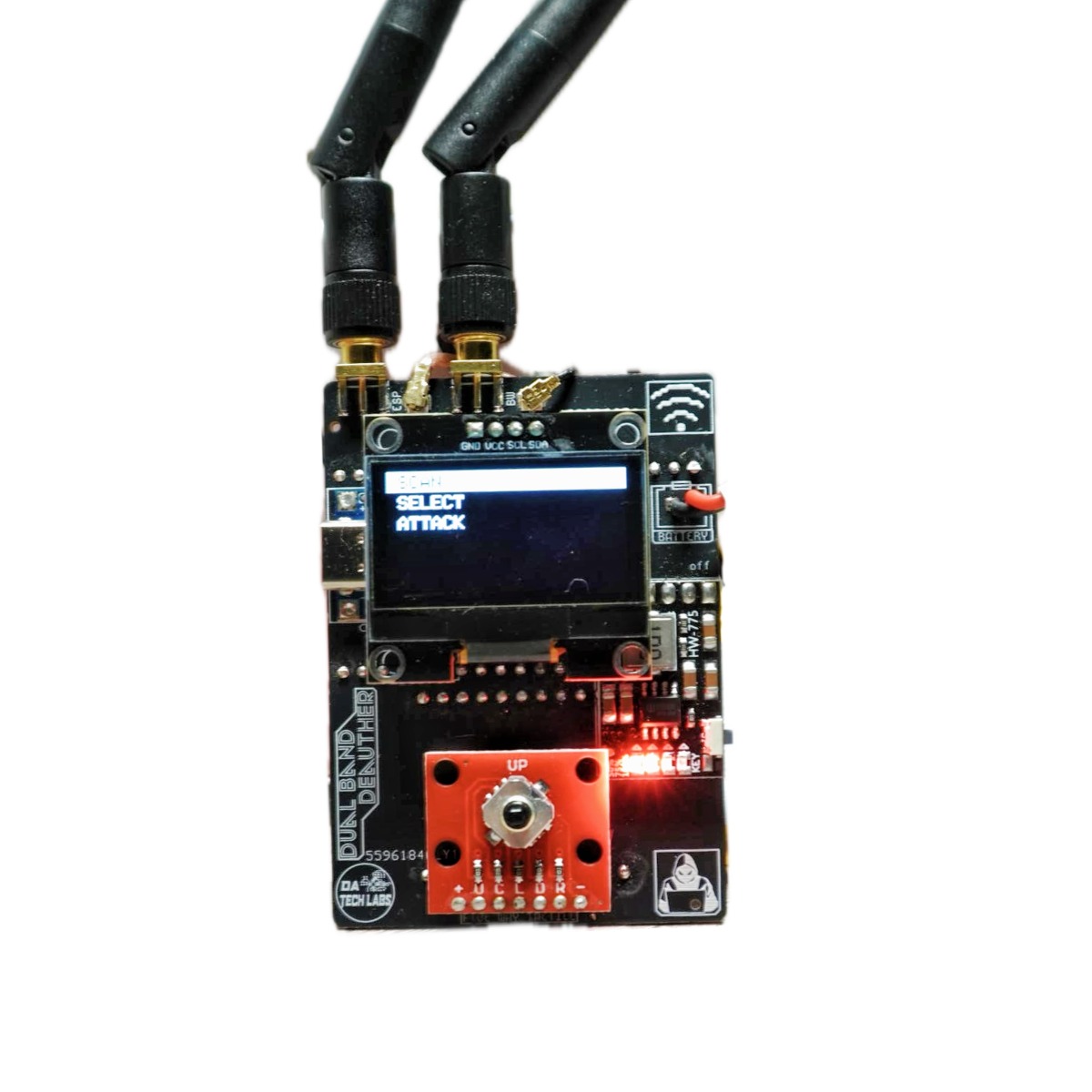

Dual Band Deauther Board

Product Description

This is a compact and dual-band Wi-Fi deauther development board designed for cybersecurity researchers, educators, and penetration testers. Developed by Don Anon Tech & Emensta, it supports both 2.4GHz and 5GHz Wi-Fi networks (tested on WPA2; WPA3 not yet tested) and includes a 1.3-inch OLED display for a user-friendly experience.

At its core, the board combines the ESP32 and BW16 modules, both selected for their compatibility with external antennas, allowing extended range and enhanced performance.

To ensure stable operation, it integrates a 3V to 5V step-up converter, which allows the device to be powered efficiently by batteries.

Key Features

• ✅ Dual-band Wi-Fi deauth capability (2.4GHz & 5GHz)

• ✅ Powered by ESP32 and BW16

• ✅ 1.3" OLED display for real-time interaction

• ✅ Support for external antennas via IPEX connectors

• ✅ Onboard 3V to 5V step-up converter for better power regulation

• ✅ Open-source design

Please Note

•  GIVE THE DEVICE 3-5 MINUTES OFF BOOT ON A BATTERY. The step up converter needs time to charge itself to achieve jts 5V goal.

•  I DO NOT RECOMMEND using the device to a very long period of time (as with any hacking devices)

• WAIT FOR THE BW16 NEO PIXEL TO LIGHT UP ON THE BOARD. that's when you know it's ready to use the 5ghz functions

• Look on Emensta's GitHub wifi32x for flashing instructions!

• Antenna and Battery are not included

ALL FEEDBACK IS APPRECIATED FOR THIS DEVICE

What You’ll Need (Not Included)

• 2cm and 5cm IPEX pigtail cables for external antenna support
