CrowPanel 5.0"-HMI ESP32 Display 800x480 RGB TFT LCD Touch Screen Compatible with Arduino/LVGL/ PlatformIO/Micropython

Rating:
91 % of 100
was $39.90 Special Price $27.13
Availability: In stock
SKU
DIS07050H
Brand
elecrow
Weight
280g
  • Buy 2 for $25.94 each and save 4%

【ESP32 HMI 5" display】TFT LCD capacitive touch display with 800x480 resolution, integrated ESP32-S3 module, frequency up to 240MHz, built-in wireless communication 2.4 GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5.0;

【Multiple development environments, compatible with LVGL】Supports Arduino IDE, Espressif IDF, PlatformIO, Micro python and other development environments and is compatible with the LVGL graphics library;

【Rich interfaces and easy to use】Rich peripheral interfaces and expansion functions, plug and play, enable it to meet the needs of different fields.

Description

CrowPanel ESP32 Display 5.0-inch module is a powerful HMI capacitive touch screen with a 800*480 resolution LCD display. It uses the ESP32-S3-WROOM-1-N4R8 module as the main control processor, with a dual-core 32-bit LX6 microprocessor, integrated WiFi and Bluetooth wireless functions, a main frequency of up to 240MHz, providing powerful performance and versatile applications, suitable for IoT application devices and other scenes.

The module includes a 5.0-inch LCD display and a driver board. The display screen uses a capacitive touch technology and the board has reserved a TF card slot, multiple peripheral interfaces, USB interface, speaker interface, battery interface, etc., providing more expansion possibilities. It supports development environments such as Arduino IDE, Espressif IDF, Lua RTOS, Micro Python, and is compatible with the LVGL graphics library. This enables developers to not only customize their own UI interfaces but also to create interesting projects quickly and easily, greatly shortening the development cycle.

The CrowPanel ESP32 Display 5.0-inch module is suitable for a wide range of scenes such as automotive HMI, medical equipment, industrial control, power, civil electronics, automation, GPS, new energy, and IoT application devices. Its various interfaces and expansion functions make it able to meet the needs of different fields, providing users with a more comprehensive solution.

Customized requests can be discussed(based on MOQ), you can contact us at service@elecrow.com

ESP32 Display 5.0 HMI module

Support multiple development environments.

It supports a variety of development environments such as Arduino IDE, Espressif IDF, PlatformIO, and Micro Python, to meet the needs of different developers and make every project possible.

5.0inch esp32 module support multiple environments

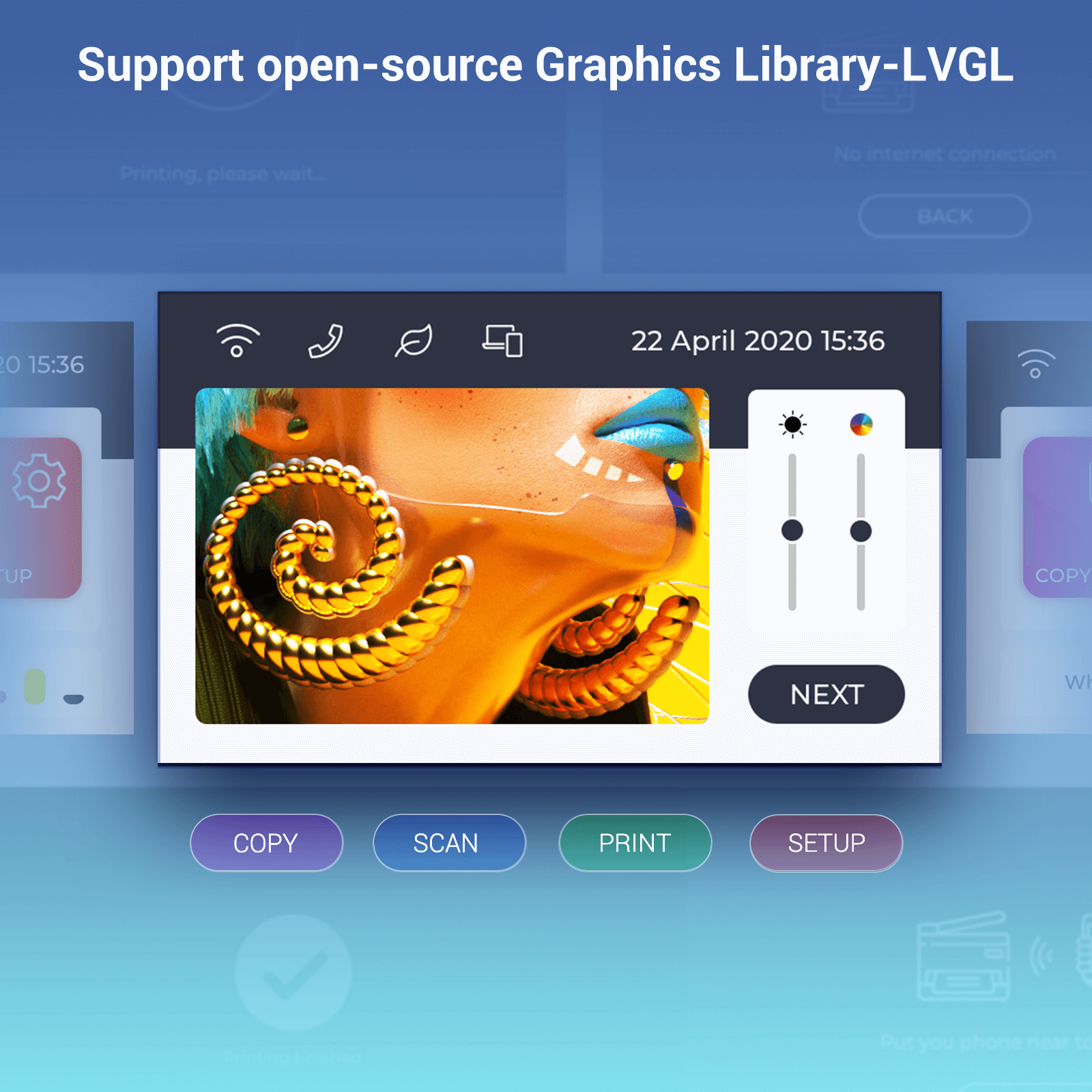

Support open-source Graphics Library-LVGL

It supports the LVGL graphics library. You can design a variety of UIs.

esp32 hmi rgb module support lvgl

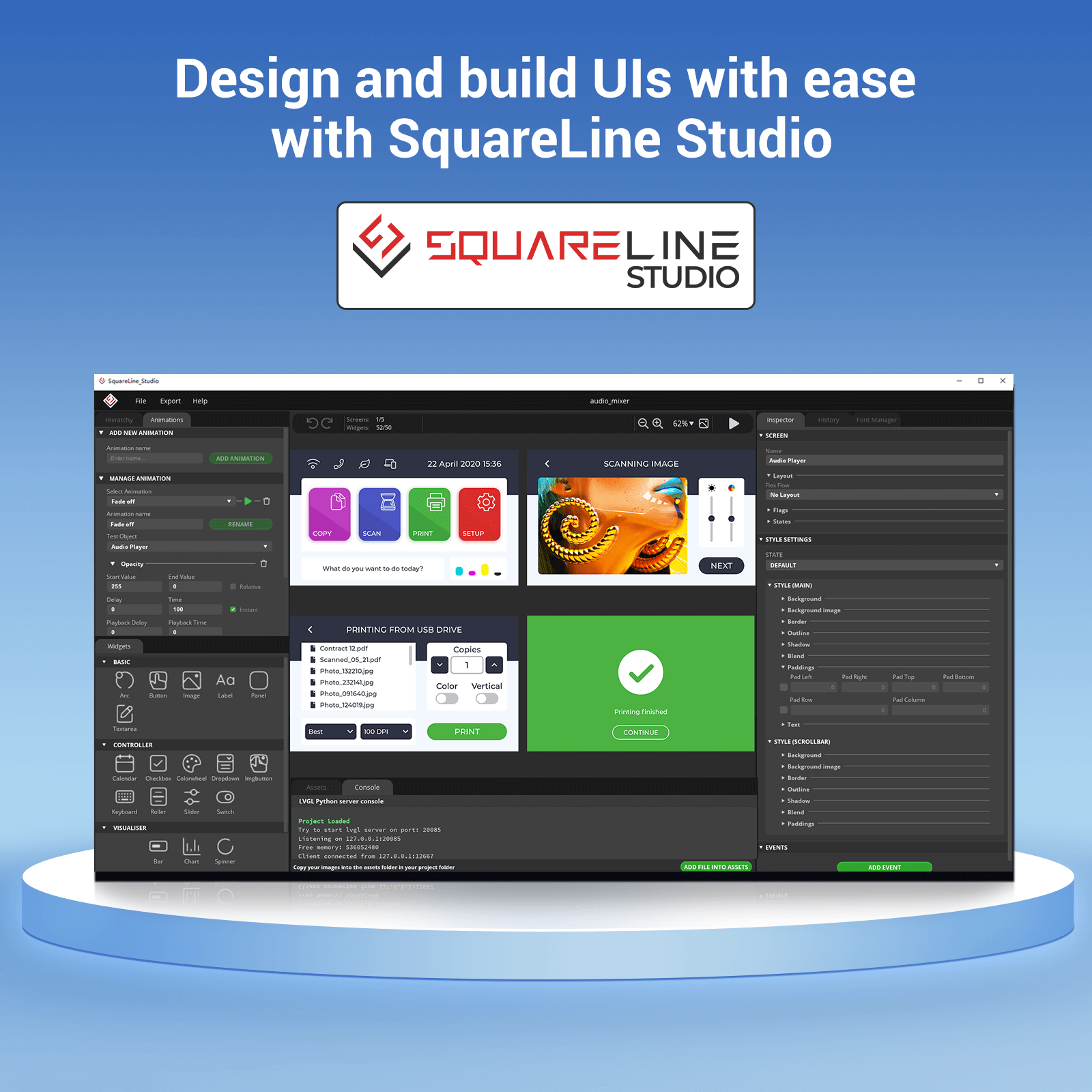

Design and build UIs with ease with SquareLine Studio

Use SquareLine Studios to design and implement your own LVGL UI and export ready to use projects with one click.

esp32 5inch HMI module support squareline studio

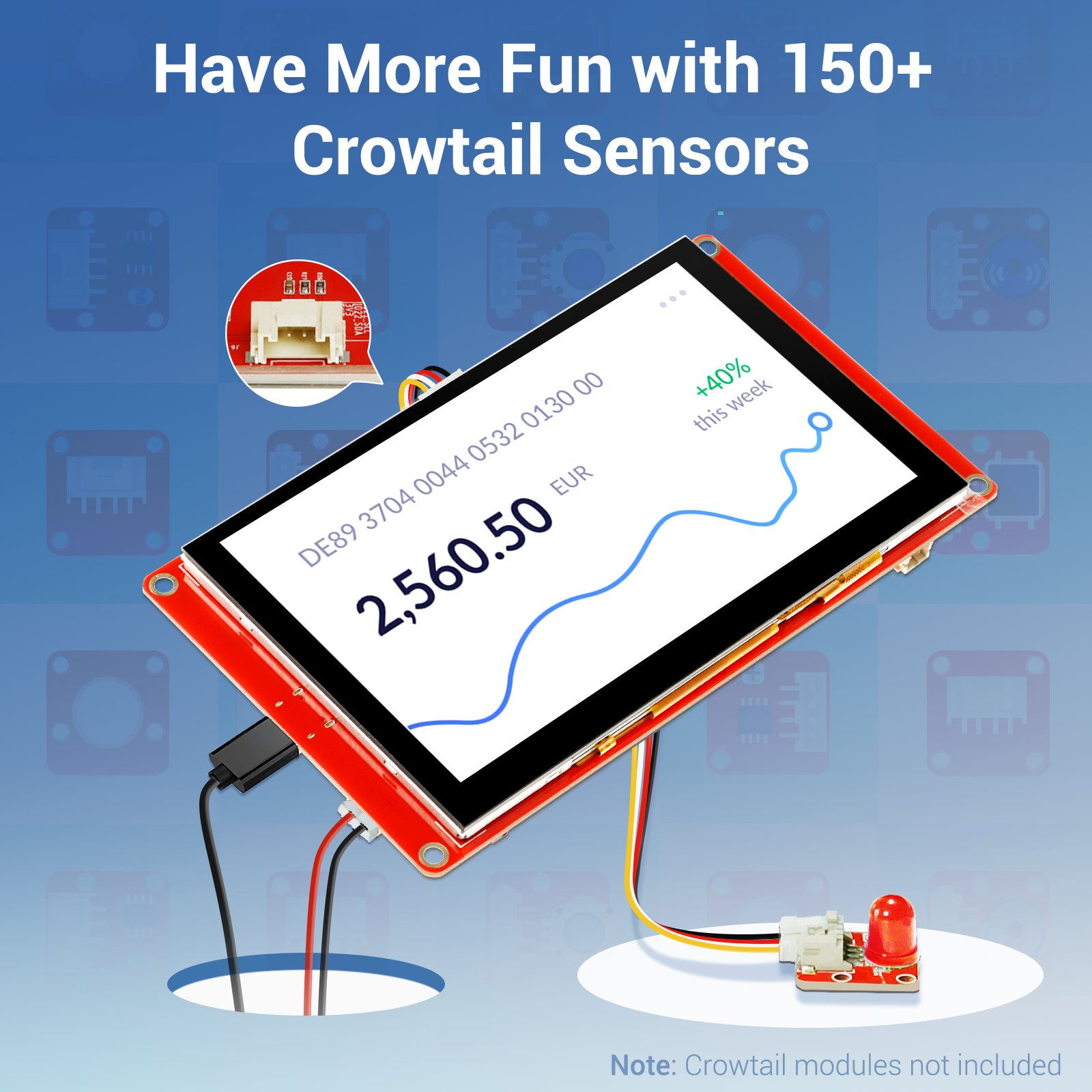

Connect with more than 150+ Crowtail sensors.

5.0 inch display connect with Crowtail sensors

Application Scenario

5.0 inch HMI Module applications

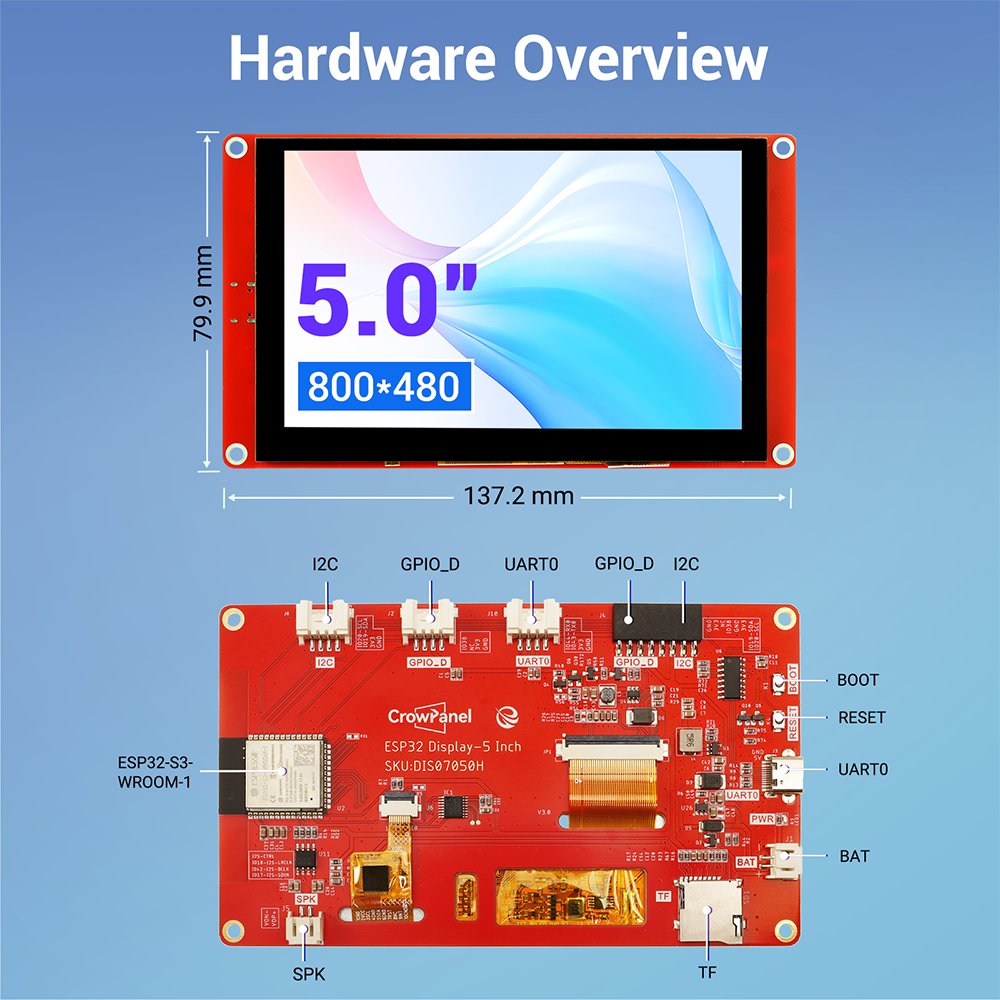

Hardware Overview

esp32 rgb tft touch screen size

Feature

  • Integrated ESP32-S3-WROOM-1-N4R8 module,built-in wireless communication 2.4 GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5.0;
  • Support development environment Arduino IDE, Espressif IDF, PlatformIO, Micro python and compatible with LVGL graphics library;
  • Built-in LVGL demo interface and Arduino example, plug and play;
  • LCD 800*480 5.0 inches TFT-LCD capacitive screen with driver IC ILI6122 + ILI5960;
  • Rich peripheral interfaces and expansion functions enable it to meet the needs of different fields.



CrowPanel ESP32 Display Comparison

Size

2.4"

2.8"

3.5"

4.3"

5.0"

7.0"

Resolution

320*240

320*240

480*320

480*272

800*480

800*480

Touch Type

Resistive Touch

Resistive Touch

Resistive Touch

Resistive Touch

Capacitive Touch

Capacitive Touch

Main Processor

ESP32-WROOM-32-N4

ESP32-WROOM-32-N4

ESP32-WROVER-B

ESP32-S3-WROOM-1-N4R2

ESP32-S3-WROOM-1-N4R8

ESP32-S3-WROOM-1-N4R8

Frequency

240 MHz

240 MHz

240 MHz

240 MHz

240 MHz

240 MHz

Flash

4MB

4MB

4MB

4MB

4MB

4MB

SRAM

520KB

520KB

520KB

512KB

512KB

512KB

ROM

448KB

448KB

448KB

384KB

384KB

384KB

PSRAM

/

/

8MB

2MB

8MB

8MB

Display Driver

ILI9341V

ILI9341V

ILI9488

NV3047

ILI6122 & ILI5960

EK9716BD3 & EK73002ACGB

Screen Type

TFT

TFT

TFT

TFT

TFT

TFT

Interface

1*UART0,1*UART1,1*I2C,

1*GPIO,1*Battery

1*UART0,1*UART1,1*I2C,

1*GPIO,1*Battery

2*UART0,1*I2C,

1*GPIO,1*Battery

1*UART0,2*UART1,

2*GPIO,1*Battery

2*UART0,2*GPIO,2*I2C,

1*Battery

2*UART0,2*GPIO,2*I2C,1*Battery

Speaker Jack

YES

YES

YES

YES

YES

YES

TF Card Slot

YES

YES

YES

YES

YES

YES

Active Area

36.72*48.96mm(W*H)

43.2*57.6mm(W*H)

48.96*73.44mm(W*H)

95.04*53.86mm(W*H)

108*64.8mm(W*H)

153.84*85.63mm(W*H)





Specification

  • Model: 5.0 inch CrowPanel ESP32 display
  • Main Processor: ESP32-S3-WROOM-1-N4R8
  • Resolution: 800*480
  • Touch Type: CapacitiveTouch Screen
  • Display Type: TN Panel
  • Screen: TFT-LCD Screen
  • Display driver: ILI6122 & ILI5960
  • External power supply: DC5V-2A
  • Interface: 2*UART0,2*GPIO,2*I2C,1*Battery
  • Button: BOOT Button and Reset Button
  • Active Area: 108*64.8mm(W*H)



Package List

  • 1x CrowPanel ESP32 Display-5.0 Inch module
  • 1x USB-A to Type-C Cable
  • 1x Crotaill/Grove to 4pin DuPont cable
