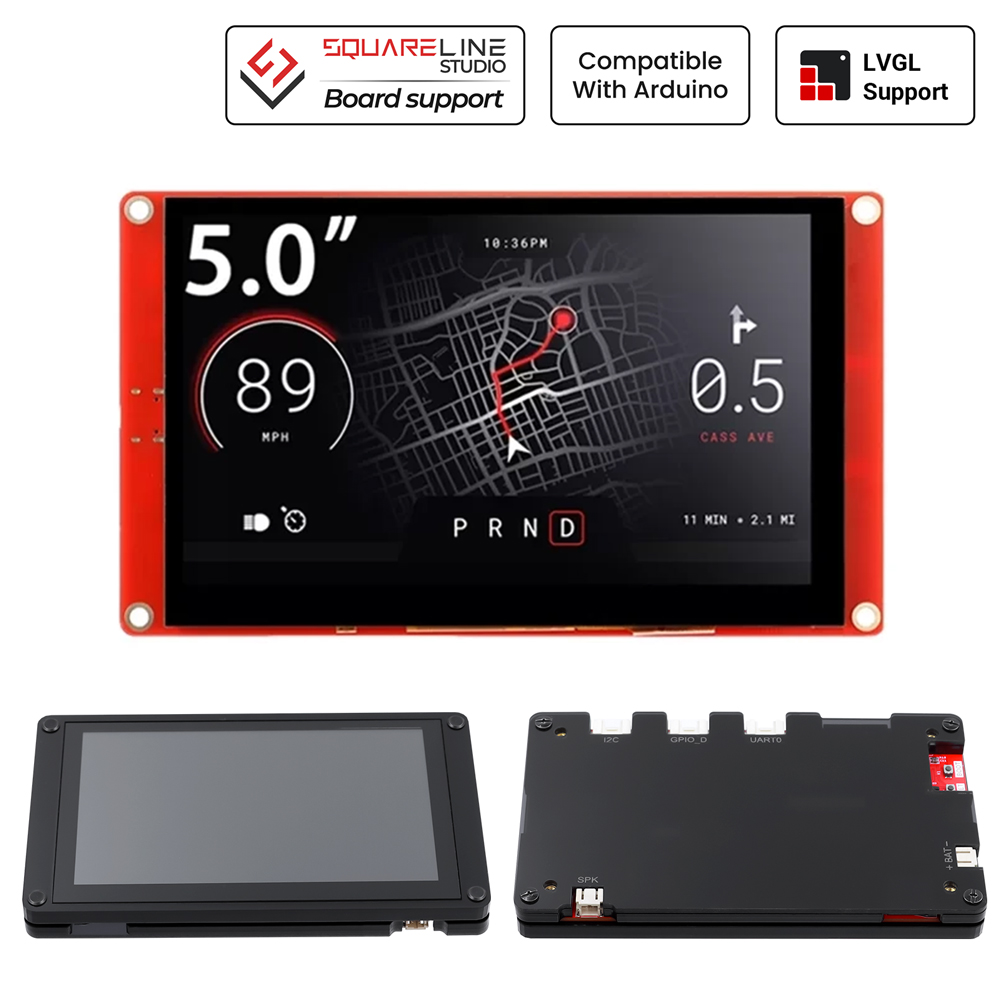

CrowPanel HMI ESP32 Capacitive Touch Screen TFT Display

Introduction of the 5″ CrowPanel ESP32 Display, featuring a capacitive touchscreen and a resolution of 800×480. As its main control processor, it uses the ESP32-S3-WROOM-1-N4R8 module. This is a dual-core 32-bit LX6 microprocessor with integrated wireless capabilities, supporting both Wi-Fi and Bluetooth. It runs at a main frequency of up to 240 MHz, delivering powerful performance suitable for IoT applications.

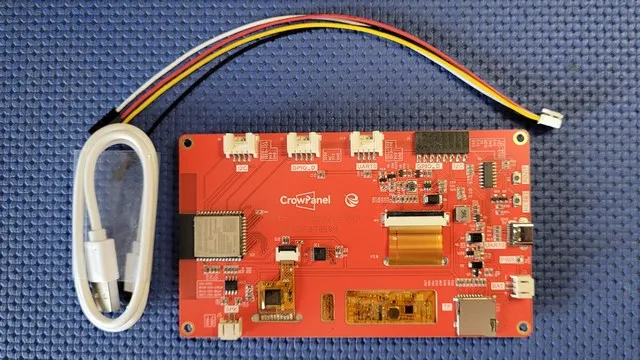

CrowPanel HMI ESP32 Capacitive Touch Screen TFT Display

  • thumbnail-img
  • thumbnail-img
  • thumbnail-img
  • thumbnail-img
  • thumbnail-img
  • thumbnail-img


Goods

Story



The CrowPanel ESP32 Display (5″) by Elecrow (Shenzhen) is a high-performance 5‑inch capacitive touch HMI module featuring an 800 × 480‑pixel TFT LCD. It is powered by an ESP32‑S3‑WROOM‑1‑N4R8 (dual-core LX6, up to 240 MHz) with integrated Wi‑Fi (802.11 b/g/n) and Bluetooth 5.0 wireless connectivity



🛠️ Hardware Specifications

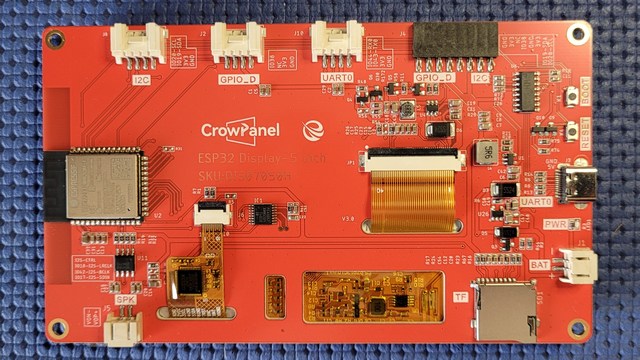

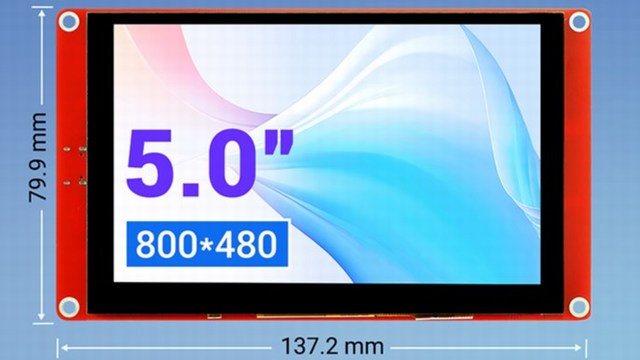

  • Display: 5″ TFT LCD, capacitive touch, active area ~108 × 64.8 mm

  • Processor: ESP32‑S3‑WROOM‑1‑N4R8, 240 MHz, dual‑core

  • Memory: 4 MB flash, 512 KB SRAM, 384 KB ROM, 8 MB PSRAM

  • Drivers: ILI6122 & ILI5960 display controllers

  • Interfaces: 2× UART, 2× GPIO, 2× I²C, USB, speaker jack, battery connector, micro‑SD (TF) slot

  • Power: DC 5 V ⎓ 2 A



💻 Software & Development Support

Fully programmable via Arduino IDE, Espressif IDF, Lua RTOS, MicroPython. It supports the LVGL graphics library and openHASP framework, enabling rapid UI creation and deployment for IoT projects



🔧 Expansion & Use Cases

Thanks to its multiple onboard ports, SD‑card slot, USB, speaker, and battery interfaces, CrowPanel is ideal for diverse HMI applications such as industrial automation, home electronics, medical devices, and IoT systems



🎯 Ideal Applications



  • User interfaces for IoT control panels

  • Automation and industrial dashboards

  • Medical or consumer electronics displays

  • Portable projects powered via battery

  • Any scenario benefiting from a rich touch‑based UI combining wireless connectivity and expandability



For more information: https://www.adrirobot.it/crowpanel-hmi-esp32-display-tft-touch-screen-capacitivo/
