Introduction

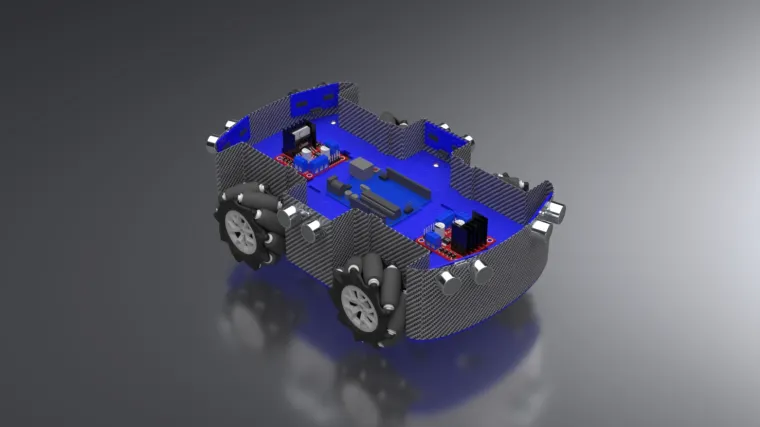

This project showcases a fully modeled obstacle-avoidance robotic car designed in SolidWorks and controlled using an Arduino microcontroller.
It serves as an early development platform for autonomous driving experiments, combining mechanical design, sensor integration, and embedded control.

Features & Design

Mechanical Structure:

• Custom-designed chassis modeled in SolidWorks

• Mounting slots for 6 ultrasonic sensors

• Housing for Arduino, dual motor drivers, and wiring

• 4-wheel independent motor configuration

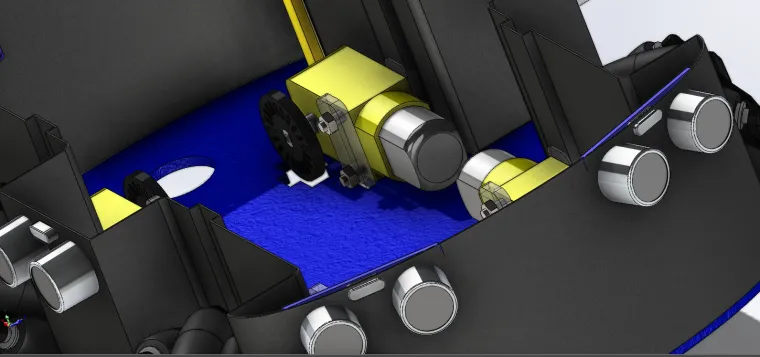

• Optimized sensor angles for maximum detection coverage

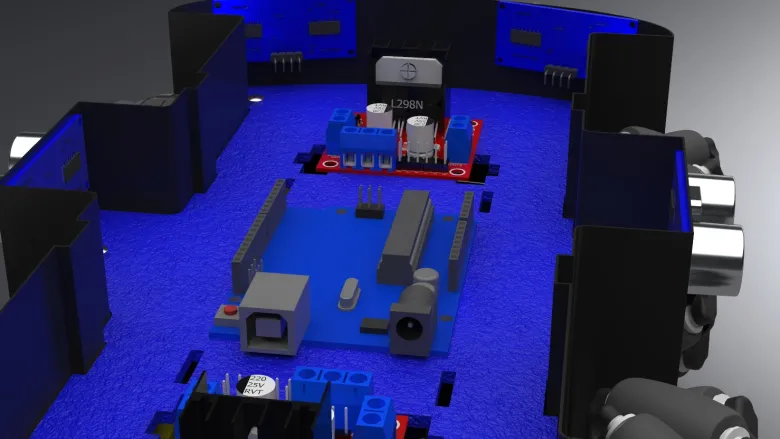

Electronics:

• 6× Ultrasonic sensors (HC-SR04) for 180°+ obstacle detection

• 2× Motor drivers (L298N) controlling four DC motors

• Arduino Uno as the main controller

• Clean cable routing and component placement matching the CAD model

Control System & Logic:

• Real-time distance scanning from six directions

• Priority-based obstacle avoidance

• Steering decisions based on closest obstacle

• Smooth power delivery to motors

• Modular code structure designed for future autonomous modes

How It Works

1. Each ultrasonic sensor continuously measures distance.

2. The Arduino processes sensor data and determines the safest direction.

3. Motor drivers adjust motor speeds to avoid obstacles.

4. The car moves autonomously without remote control.

5. The modular architecture allows adding vision, GPS, or LIDAR later.

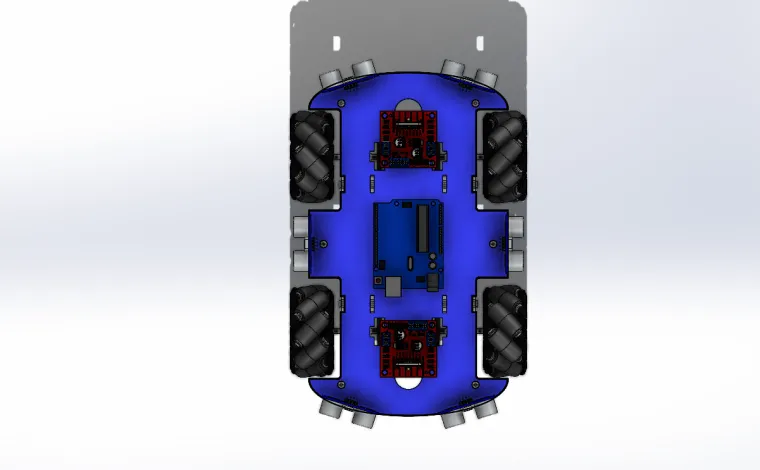

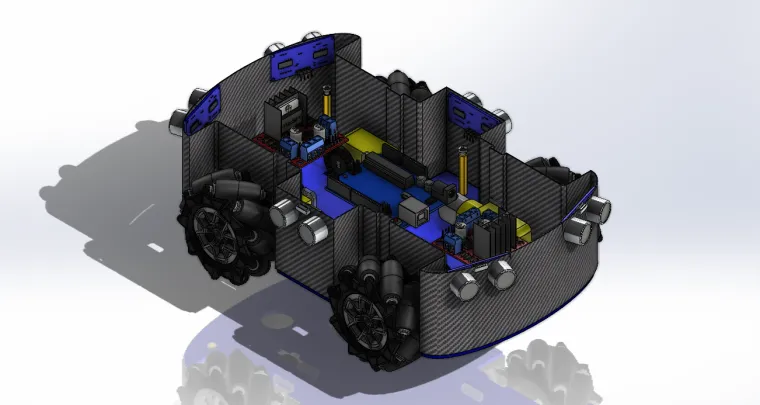

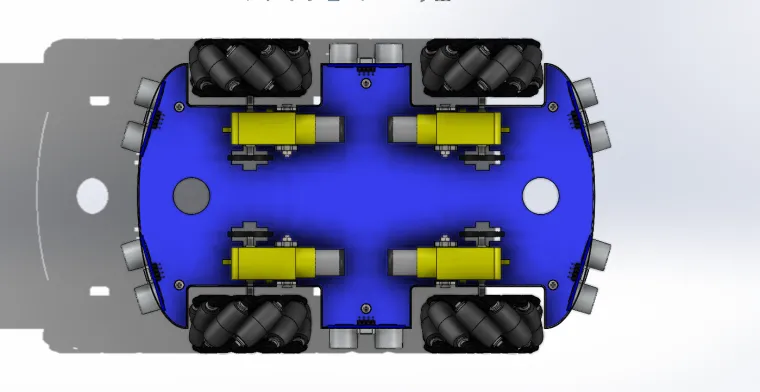

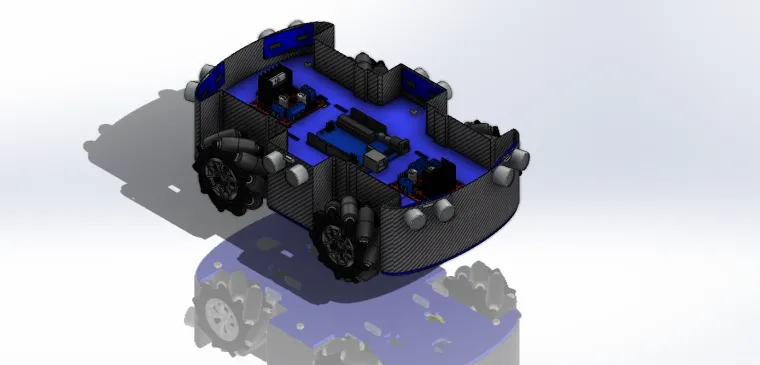

SolidWorks Modeling Overview

• Fully constrained assembly

• Accurate mechanical dimensions

• Realistic component placement

• Mates optimized for motion study

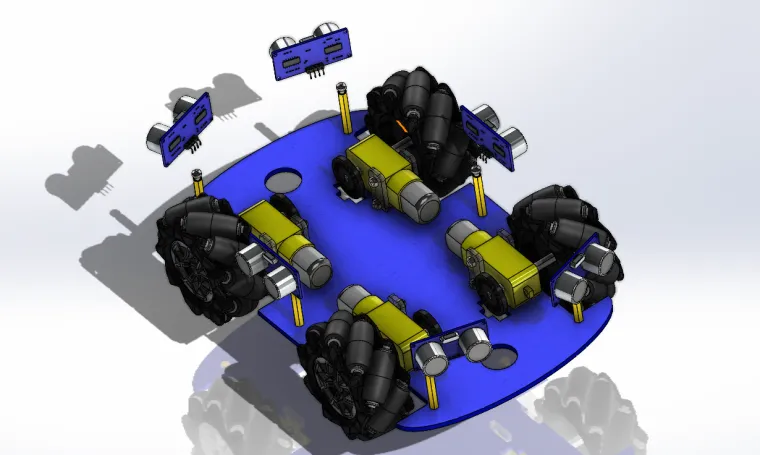

• Exploded view included

• STEP + SLDASM + SLDPRT files available

tep-by-Step Build Guide

Step 1 – Mechanical assembly

• Print or machine chassis

• Install 4 DC motors

• Mount ultrasonic brackets

Step 2 – Electronics setup

• Wire sensors to Arduino

• Connect motor drivers

• Power distribution setup

Step 3 – Upload code

• Flash Arduino program

• Test sensor readings

• Calibrate detection angles

Step 4 – Final assembly and test

• Attach wheels

• Run obstacle-avoidance test

• Fine-tune speed & turning behavior
