Eurocard board guide system

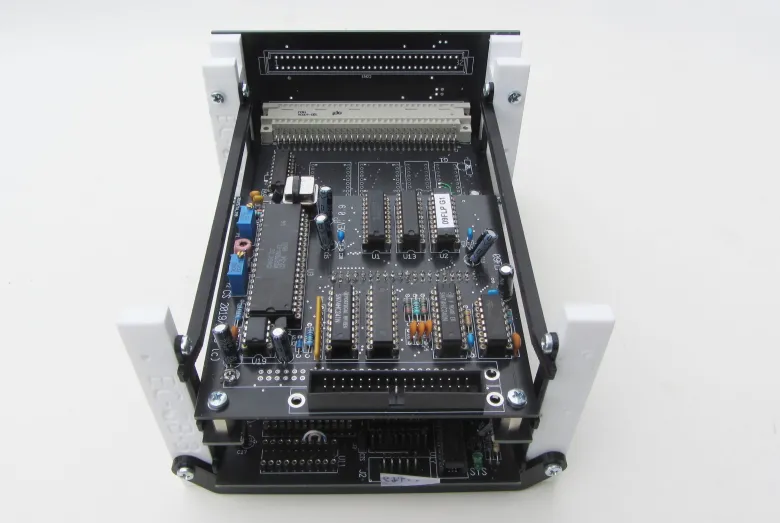

Eurocard guide system made by 3D-printer

Eurocard board guide system

  • thumbnail-img


Story

Eurocard board guide systems are usually part of a manufacturer rack system, mostly 19" or 9.5" wide. This project is a independent attempt to convert a backplane and unruly cards into a nice tabletop system. It is flexible enough to adapt it to other backplanes and cards than the original design.

The files are designed with OpenSCAD and try to implement the Customizer protocol making it very easy to change the basic parameters.

More photo's and the design files can be found at https://www.printables.com/model/1437523-eurocard-board-guide-system

Repost form Eurocard board guide system | Hackaday.io

Reposted with permission from the author. And if you want to explore more projects, please follow the author: fjkraan (Hackaday). He has many wonderful projects and is an excellent maker. Enjoy it!
