Hardware for the Shot Core On Camera Remote_

Hardware for the Shot Core On Camera Remote_

  • thumbnail-img


Story

by Charles Forman

©2020 Wonder Unit, Inc. https://wonderunit.com

Official page and project details is at: https://github.com/wonderunit/storyboarder/wiki/Shot-Core-On-Camera-Remote

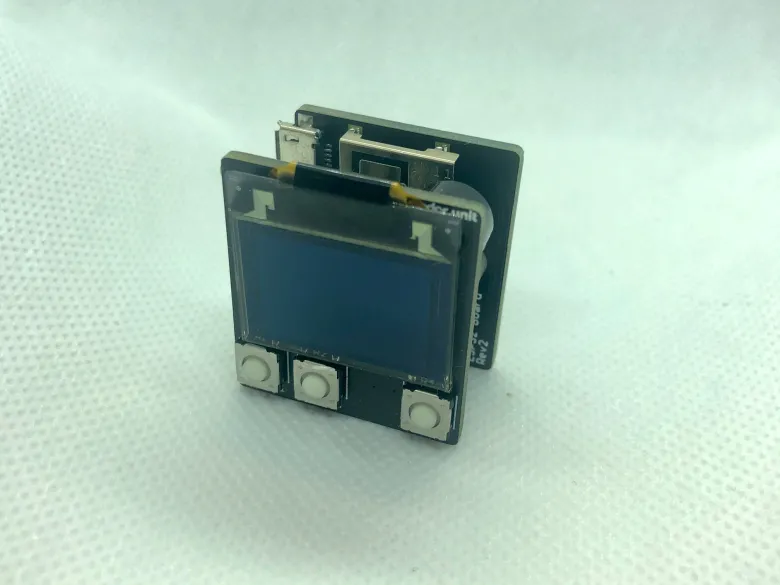

This is a small remote control that mounts on a camera rig. It communicates with a remote system over wifi. The remote has 3-5 buttons: Record, Next Shot, Previous Shot, and Impromptu Shot, and Star. The display shows three main pieces of information: Current Scene, Shot, and Take number. It could also show recording status, and errors that the remote system is alerting.

Schematics, Altium Design files, gerber files and test code is all open source and available on this site.

The Github link: https://github.com/mike-rankin/Shot-Core  This is GitHub account: https://github.com/mike-rankin where you will explore more excellent projects. He is a good DIY maker who designs custom ESP32 IoT projects using Altium Designer, Arduino IDE and Fusion360. Welcome everyone to follow.

overlay

assembled_front

assembled_back

assembled_back_2 display_1 display_2 esp_2
