Hardware for the Shot Core On Camera Remote (AKA Mini Slater

Hardware for the Shot Core On Camera Remote (AKA Mini Slater

  • thumbnail-img
  • thumbnail-img
  • thumbnail-img
  • thumbnail-img
  • thumbnail-img
  • thumbnail-img


Story

by Charles Forman

©2020 Wonder Unit, Inc. https://wonderunit.com

Official page and project details is at: https://github.com/wonderunit/storyboarder/wiki/Shot-Core-On-Camera-Remote

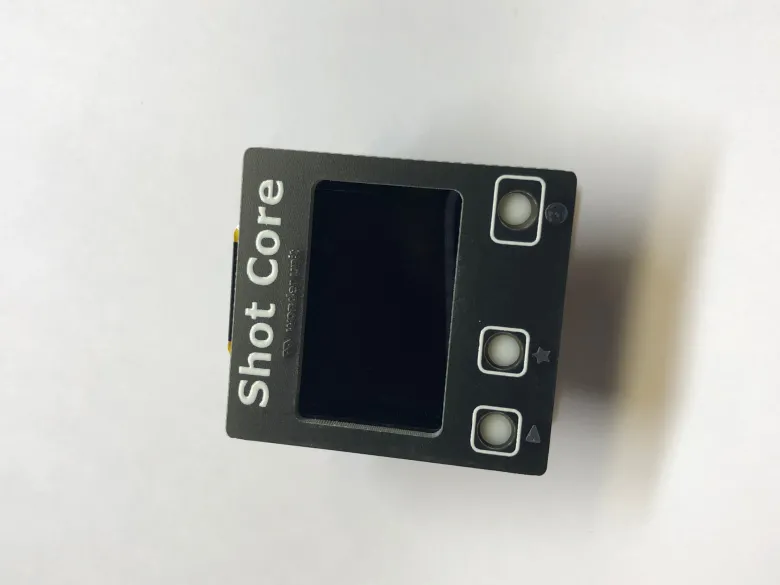

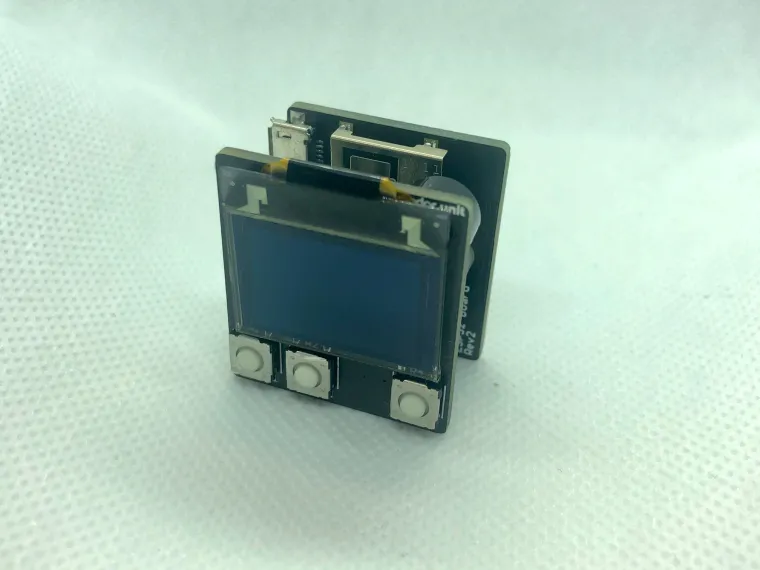

This is a small remote control that mounts on a camera rig. It communicates with a remote system over wifi. The remote has 3-5 buttons: Record, Next Shot, Previous Shot, and Impromptu Shot, and Star. The display shows three main pieces of information: Current Scene, Shot, and Take number. It could also show recording status, and errors that the remote system is alerting.

Schematics, Altium Design files, gerber files and test code is all open source and available on this site → The Github link: https://github.com/mike-rankin/Shot-Core?tab=readme-ov-file This project is reposted with the approval of this project creator. He is a good DIY maker who designs custom ESP32 IoT projects using Altium Designer, Arduino IDE and Fusion360!!!! Welcome everyone to follow him. This is his GitHub account, Mike Rankin, where you will explore more excellent projects.
