Mini: Eurorack modular synth USB-C power supply

Power your Eurorack modular synth with any USB-C power source.

Mini: Eurorack modular synth USB-C power supply

  • thumbnail-img
  • thumbnail-img


Hardware Components

  • YLED0402G

    YONGYUTAI(永裕泰)
    X 1

  • YLED0402R

    YONGYUTAI(永裕泰)
    X 1

  • YLED0402Y

    YONGYUTAI(永裕泰)
    X 1

  • 10nF (CC0603KRX7R9BB103)

    YAGEO(国巨)
    X 1

  • 5.1kΩ (RC0603JR-075K1L)

    YAGEO(国巨)
    X 2

  • 2.2kΩ (1206W4F2201T5E)

    UNI-ROYAL(厚声)
    X 2

  • 1.5kΩ (1206W4F1501T5E)

    UNI-ROYAL(厚声)
    X 1

  • TYPE-C-31-M-12

    Korean Hroparts Elec
    X 1

  • ASMD1812-200

    JDTfuse
    X 1

  • HDR-IDC-2.54-2X8P

    BOOMELE(Boom Precision Elec)
    X 4

  • DKM10E-12

    Mean Well USA Inc.
    X 1

Tools, APP Software Used etc.

  • Autodesk Fusion 360

Story

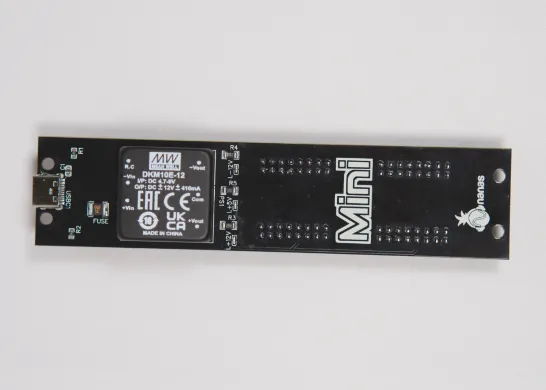

Mini provides +/- 12V and 5V voltage to your Eurorack module. With a 15W USB-C power source, it can deliver up to 416mA. You can utilize a phone charger, the USB-C port on your laptop, or even a power bank to power your Eurorack modular synth system. It is particularly suitable for driving small setups or powering your DIY Eurorack module project.



Mini can be utilized as a standalone desktop module or connected to rails.

Schematic and Layout

  • Mini v2.0

    https://github.com/nanassound/eurorack-nanassound/tree/main/Mini/V2.0
    View
CAD-Custom parts and enclosures
Topic
View All
#eurorack #modular synth #audio #power supply #usb c #synthesizer #analog synth
License: Attribution-ShareAlike (CC BY-SA)
