1200MHz Twin Delta Loop Antenna

This is a twin delta loop antenna designed for the 1200MHz band for HAM radio practitioners. It can be used by soldering an SMA connector.

1200MHz Twin Delta Loop Antenna

  • thumbnail-img
  • thumbnail-img
  • thumbnail-img
  • thumbnail-img


Story

これはプリント基板で作ったアマチュア無線用の1200MHz帯ツインデルタループアンテナです。
SMAコネクタをハンダ付けするだけです。
詳しくは私のブログをご覧下さい。
https://www.jh4vaj.com/12td01-01

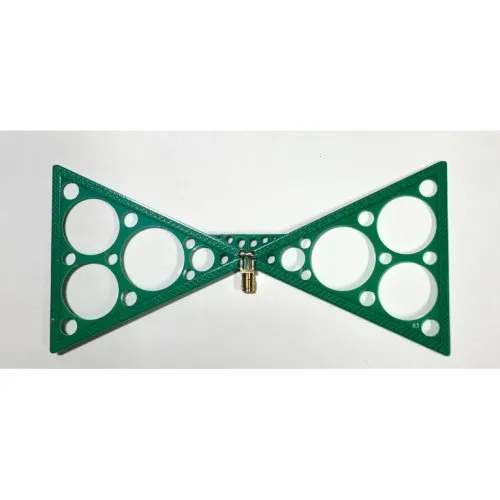

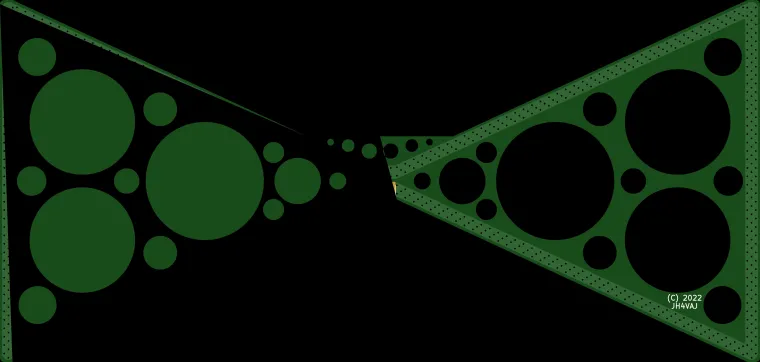

This is a PCB-based twin delta loop antenna designed for the 1200MHz band for HAM radio.
It only requires soldering an SMA connector for use.
For additional information, visit my blog.
https://www.jh4vaj.com/12td01-01
