LM3909 flashing indicator

7 segments display circuit

LM3909 flashing indicator

  • thumbnail-img
  • thumbnail-img
  • thumbnail-img
  • thumbnail-img


Hardware Components

  • LM3909

    X 1 fenxiang

Tools, APP Software Used etc.

  • Kicad

Story

LM3909 flashing indicator

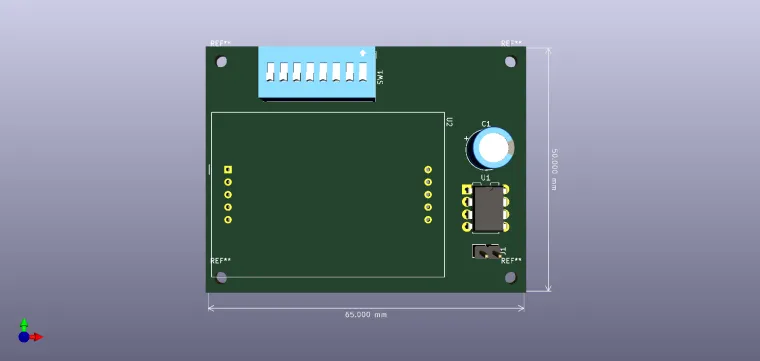

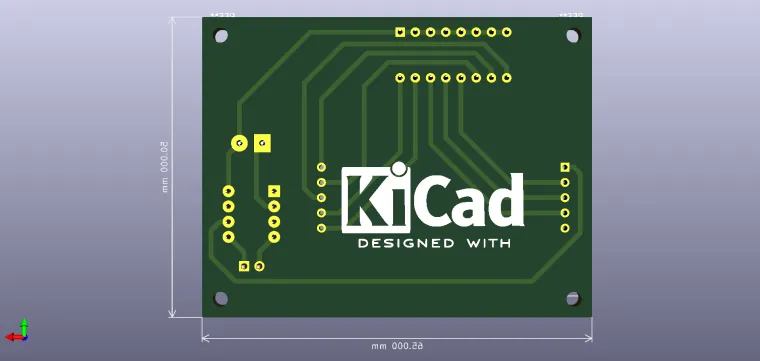

I present to you a circuit which is a little outdated, but quite pleasant for some, I saw that this LM3909 is still found and I said to draw a pcb. I added a multi-channel switch, dip switch, which allows us to choose which number we want to display. Maybe you want to dial a certain number to celebrate something special.

Notes: pay attention to the display model.

I hope you like this board, if so, maybe you can help me with another LM3909 IC. ????

Schematic and Layout

LM3909 flashing indicator

7 segments display circuit
